Specifications

Absolute Maximum Ratings(1)

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
Input voltage VIN –0.3 65 V
EN –0.3 8.4
BOOT 73
FB –0.3 3
COMP –0.3 3
RT/CLK –0.3 3.6
Output voltage BOOT-SW 8 V
SW –0.6 65
SW, 10-ns Transient –2 65
Operating junction temperature –40 150 °C
Storage temperature range TSTG –65 150 °C
Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

ESD Ratings

MIN MAX UNIT
VESD (1) Human Body Model (HBM) ESD Stress Voltage (2) ±2000 V
Charged Device Model (HBM) ESD Stress Voltage (3) ±500 V
Electrostatic discharge (ESD) to measure device sensitivity and immunity to damage caused by assembly line electrostatic discharges into the device.
Level listed above is the passing level per ANSI/ESDA/JEDEC JS-001. JEDEC document JEP155 states that 500V HBM allows safe manufacturing with a standard ESD control process. terminals listed as 1000V may actually have higher performance.
Level listed above is the passing level per EIA-JEDEC JESD22-C101. JEDEC document JEP157 states that 250V CDM allows safe manufacturing with a standard ESD control process. terminals listed as 250V may actually have higher performance.

Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
VIN Supply input voltage (1) VO + VDO 60 V
VO Output voltage 0.8 58.8 V
IO Output current 0 5 A
TJ Junction Temperature –40 150 °C
See Equation 1

Thermal Information

THERMAL METRIC(1)(2) TPS54560 UNIT
DDA (8 PINS)
θJA Junction-to-ambient thermal resistance (standard board) 42.0 °C/W
ψJT Junction-to-top characterization parameter 5.9 °C/W
ψJB Junction-to-board characterization parameter 23.4 °C/W
θJCtop Junction-to-case(top) thermal resistance 45.8 °C/W
θJCbot Junction-to-case(bottom) thermal resistance 3.6 °C/W
θJB Junction-to-board thermal resistance 23.4 °C/W
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.
Power rating at a specific ambient temperature TA should be determined with a junction temperature of 150°C. This is the point where distortion starts to substantially increase. See power dissipation estimate in application section of this data sheet for more information.

Electrical Characteristics

TJ = –40°C to 150°C, VIN = 4.5 V to 60 V (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
SUPPLY VOLTAGE (VIN TERMINAL)
Operating input voltage 4.5 60 V
Internal undervoltage lockout threshold Rising 4.1 4.3 4.48 V
Internal undervoltage lockout threshold hysteresis 325 mV
Shutdown supply current EN = 0 V, 25°C, 4.5 V ≤ VIN ≤ 60 V 2.25 4.5 μA
Operating: nonswitching supply current FB = 0.9 V, TA = 25°C 146 175
ENABLE AND UVLO (EN TERMINAL)
Enable threshold voltage No voltage hysteresis, rising and falling 1.1 1.2 1.3 V
Input current Enable threshold +50 mV –4.6 μA
Enable threshold –50 mV –0.58 –1.2 -1.8
Hysteresis current –2.2 –3.4 -4.5 μA
VOLTAGE REFERENCE
Voltage reference 0.792 0.8 0.808 V
HIGH-SIDE MOSFET
On-resistance VIN = 12 V, BOOT-SW = 6 V 92 190
ERROR AMPLIFIER
Input current 50 nA
Error amplifier dc gain VFB = 0.8 V 10,000 V/V
Min unity gain bandwidth 2500 kHz
Error amplifier source/sink V(COMP) = 1 V, 100 mV overdrive ±30 μA
COMP to SW current transconductance 17 A/V
CURRENT LIMIT
Current limit threshold All VIN and temperatures, Open Loop(1) 6.3 7.5 8.8 A
All temperatures, VIN = 12 V, Open Loop(1) 6.3 7.5 8.3
VIN = 12 V, TA = 25°C, Open Loop(1) 7.1 7.5 7.9
THERMAL SHUTDOWN
Thermal shutdown 176 °C
Thermal shutdown hysteresis 12 °C
TIMING RESISTOR AND EXTERNAL CLOCK (RT/CLK TERMINAL)
Switching frequency range using RT mode 100 2500 kHz
fSW Switching frequency RT = 200 kΩ 450 500 550 kHz
Switching frequency range using CLK mode 160 2300 kHz
RT/CLK high threshold 1.55 2 V
RT/CLK low threshold 0.5 1.2 V
Open Loop current limit measured directly at the SW terminal and is independent of the inductor value and slope compensation.

Timing Requirements

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
ENABLE AND UVLO (EN TERMINAL)
Enable to COMP active VIN = 12 V, TA = 25°C 340 µs
INTERNAL SOFT-START TIME
Soft-Start Time fSW = 500 kHz, 10% to 90% 2.1 ms
Soft-Start Time fSW = 2.5 MHz, 10% to 90% 0.42 ms
ERROR AMPLIFIER
Error amplifier transconductance (gM) –2 μA < ICOMP < 2 μA, VCOMP = 1 V 350 μs
Error amplifier transconductance (gM) during soft-start –2 μA < ICOMP < 2 μA, VCOMP = 1 V, VFB = 0.4 V 77 μs
CURRENT LIMIT
Current limit threshold delay 60 ns
TIMING RESISTOR AND EXTERNAL CLOCK (RT/CLK TERMINAL)
Minimum CLK input pulse width 15 ns
RT/CLK falling edge to SW rising edge delay Measured at 500 kHz with RT resistor in series 55 ns
PLL lock in time Measured at 500 kHz 78 μs

Typical Characteristics

TPS54560 C025_SLVSBN0.png
VIN = 12 V
Figure 1. On Resistance vs Junction Temperature

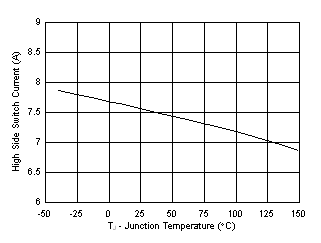

TPS54560 D027_SLVSDP8.gif
VIN = 12 V
Figure 3. Switch Current Limit vs Junction Temperature
TPS54560 C026_SLVSBN0.png
VIN = 12 V

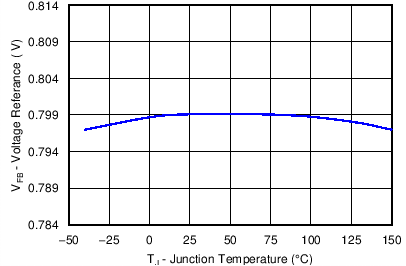

Figure 2. Voltage Reference vs Junction Temperature
TPS54560 D028_SLVSDP8.gif

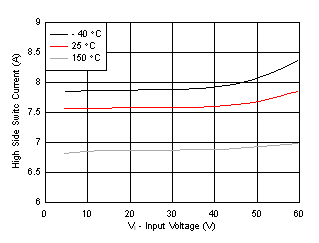

Figure 4. Switch Current Limit vs Input Voltage
TPS54560 C029_SLVSBN0.png
VIN = 12 V RT = 200 kΩ
Figure 5. Switching Frequency vs Junction Temperature

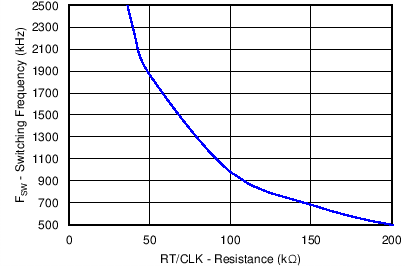

TPS54560 C031_SLVSBN0.png
VIN = 12 V
Figure 7. Switching Frequency vs RT/CLK Resistance
High Frequency Range
TPS54560 C033_SLVSBN0.png
VIN = 12 V

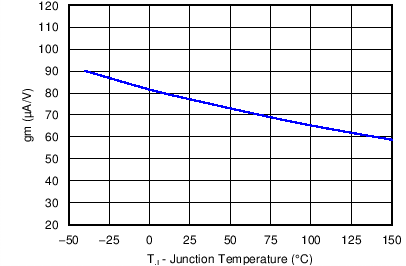

Figure 9. EA Transconductance During Soft-Start vs Junction Temperature
TPS54560 C035_SLVSBN0.png
VIN = 12 V IEN = Threshold +50 mV

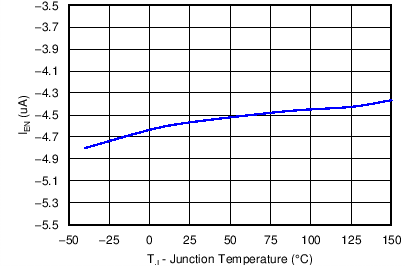

Figure 11. EN Terminal Current vs Junction Temperature
TPS54560 C037_SLVSBN0.png
VIN = 12 V
Figure 13. EN Terminal Current Hysteresis vs Junction Temperature
TPS54560 C039_SLVSBN0.png
VIN = 12 V
Figure 15. Shutdown Supply Current vs Junction Temperature
TPS54560 C041_SLVSBN0.png
VIN = 12 V
Figure 17. VIN Supply Current vs Junction Temperature

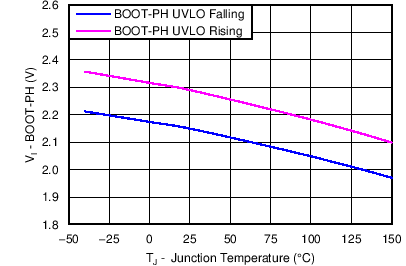

TPS54560 C043_SLVSBN0.png Figure 19. BOOT-SW UVLO vs Junction Temperature
TPS54560 C045_SLVSBN0.png
VIN = 12 V TJ = 25°C

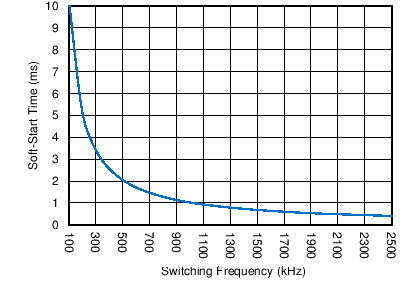

Figure 21. Soft-Start Time vs Switching Frequency
TPS54560 C030_SLVSBN0.png
ƒsw (kHz) = 92471 x RT (kΩ)-0.991
RT (kΩ) = 101756 x ƒsw (kHz)-1.008

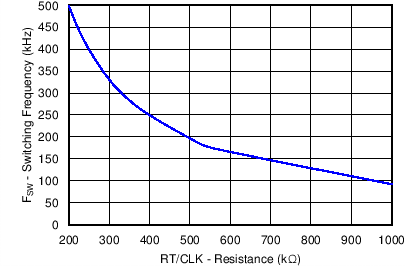

Figure 6. Switching Frequency vs RT/CLK Resistance
Low Frequency Range

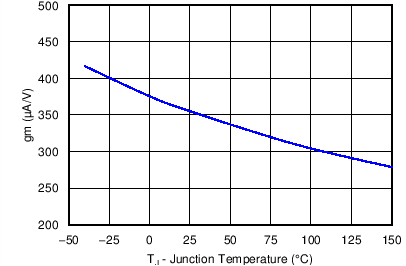

TPS54560 C032_SLVSBN0.png
Figure 8. EA Transconductance vs Junction Temperature
TPS54560 C034_SLVSBN0.png
VIN = 12 V
Figure 10. EN Terminal Voltage vs Junction Temperature

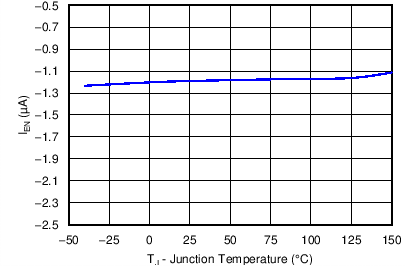

TPS54560 C036_SLVSBN0.png
VIN = 12 V IEN = Threshold –50 mV
Figure 12. EN Terminal Current vs Junction Temperature
TPS54560 C038_SLVSBN0.png

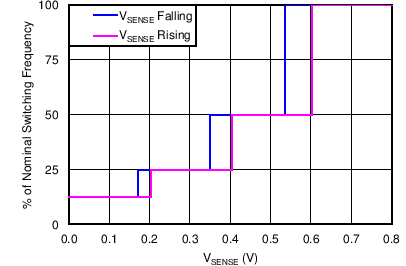

Figure 14. Switching Frequency vs VSENSE

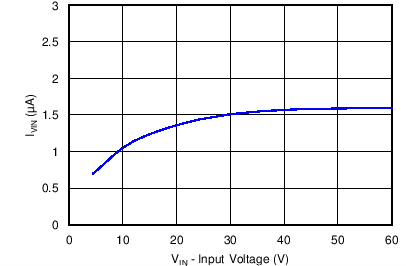

TPS54560 C040_SLVSBN0.png
TA = 25°C
Figure 16. Shutdown Supply Current vs Input Voltage (VIN)
TPS54560 C042_SLVSBN0.png
TJ = 25°C

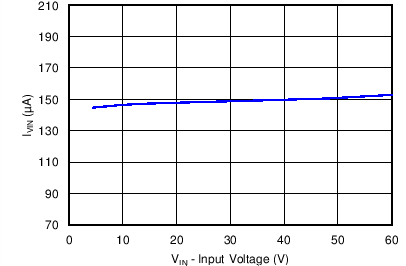

Figure 18. VIN Supply Current vs Input Voltage

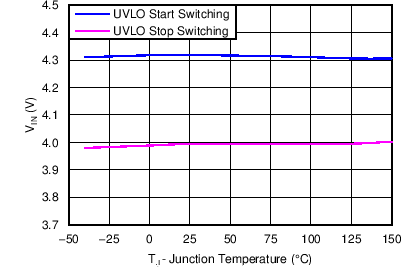

TPS54560 C044_SLVSBN0.png Figure 20. Input Voltage UVLO vs Junction Temperature
