8.2.3 Application Curves

Measurements are taken with standard EVM using a 12-V input, 3.3-V output, and 5-A load unless otherwise noted.
TPS54540B fig036_lvsbx7.gif
Figure 37. Load Transient
TPS54540B fig037_lvsbx7.gif
Figure 38. Line Transient (8 V to 40 V)

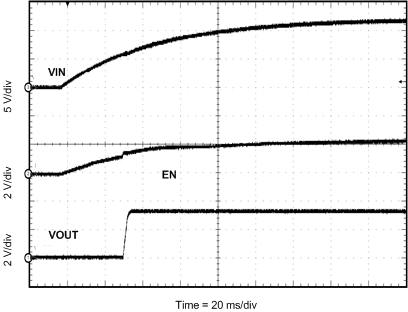

TPS54540B fig038_lvsbx7.gif
Figure 39. Start-up With VIN
TPS54540B fig040_lvsbx7.gif

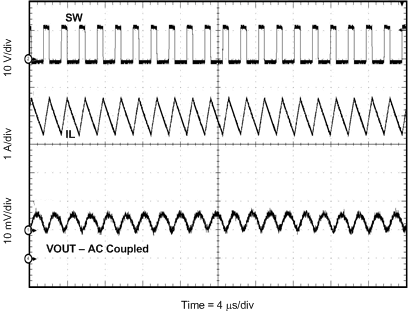

Figure 41. Output Ripple CCM
TPS54540B fig042_lvsbx7.gif
Figure 43. Output Ripple PSM

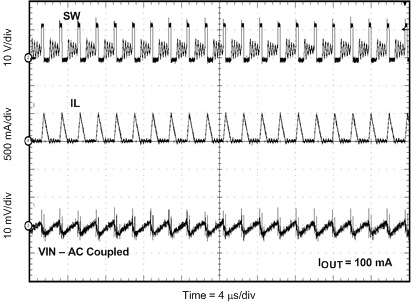

TPS54540B fig044_lvsbx7.gif
Figure 45. Input Ripple DCM

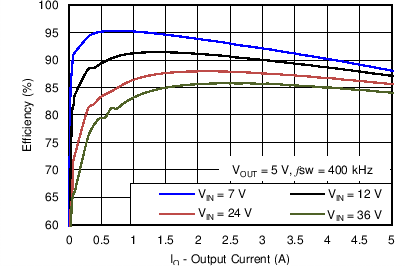

TPS54540B C048_SLVSBX7.png
Figure 47. Efficiency vs Load Current
TPS54540B C050_SLVSBX7.png

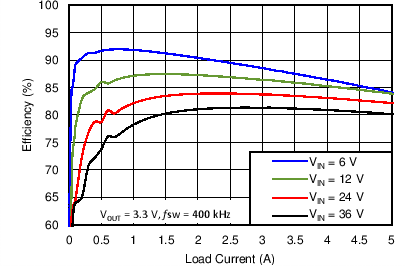

Figure 49. Efficiency vs Load Current

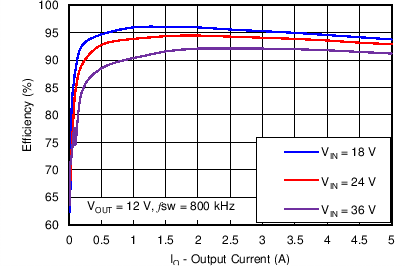

TPS54540B C052_SLVSBX7.png
Figure 51. Efficiency vs Output Current

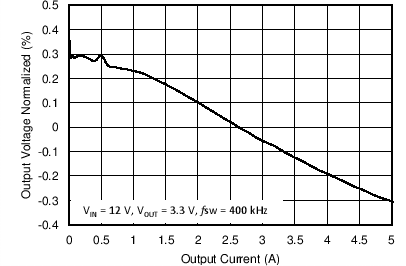

TPS54540B C054_SLVSBX7.png
Figure 53. Regulation vs Load Current

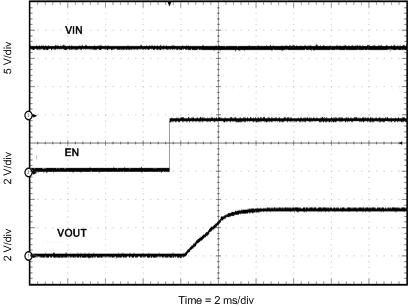

TPS54540B fig039_lvsbx7.gif
Figure 40. Start-up With EN
TPS54540B fig041_lvsbx7.gif
Figure 42. Output Ripple DCM
TPS54540B fig043_lvsbx7.gif
Figure 44. Input Ripple CCM
TPS54540B fig045_lvsbx7.gif
Figure 46. Low Dropout Operation

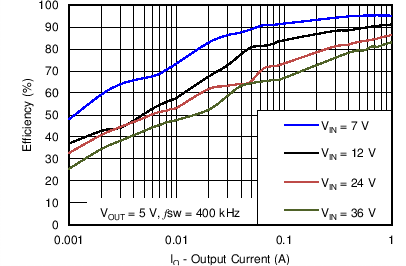

TPS54540B C049_SLVSBX7.png
Figure 48. Light Load Efficiency

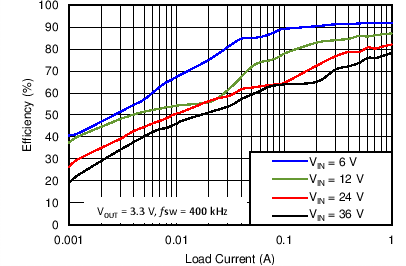

TPS54540B C051_SLVSBX7.png
Figure 50. Light Load Efficiency
TPS54540B C053_SLVSBX7.png
Figure 52. Overall Loop Frequency Response
TPS54540B C055_SLVSBX7.png
Figure 54. Regulation vs Input Voltage
