7 Specifications

7.1 Absolute Maximum Ratings(1)

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
Input Voltage VIN –0.3 30 V
EN –0.3 6
BOOT 38
VSENSE –0.3 3
COMP –0.3 3
SS –0.3 3
Output Voltage BOOT-PH 8 8 V
PH –0.6 30
PH (10 ns transient from ground to negative peak) –5
Source Current EN 100 μA
BOOT 100 mA
VSENSE 10 μA
PH 6 A
Sink Current VIN 6 A
COMP 100 μA
SS 200
Operating Junction Temperature, TJ –40 150 °C
(1) Stresses beyond those listed under may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

7.2 Handling Ratings

MIN MAX UNIT
Tstg Storage temperature range –65 150 °C
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) –2 2 kV
Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) –500 500 V
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
Operating Input Voltage on (VIN pin) 3.5 28 V
TJ Operating junction temperature –40 150 °C

7.4 Thermal Information

THERMAL METRIC(1) TPS54232 UNIT
D
8 PINS
RθJA Junction-to-ambient thermal resistance 116.3 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 53.7
RθJB Junction-to-board thermal resistance 57.1
ψJT Junction-to-top characterization parameter 12.9
ψJB Junction-to-board characterization parameter 56.5
RθJC(bot) Junction-to-case (bottom) thermal resistance -
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

7.5 Electrical Characteristics

TJ = –40°C to 150°C, VIN = 3.5V to 28V (unless otherwise noted)
DESCRIPTION TEST CONDITIONS MIN TYP MAX UNIT
SUPPLY VOLTAGE (VIN PIN)
Internal undervoltage lockout threshold Rising and Falling 3.5 V
Shutdown supply current EN = 0V, VIN = 12V, –40°C to 85°C 1 4 μA
Operating – non switching supply current VSENSE = 0.85 V 85 120 μA
ENABLE AND UVLO (EN PIN)
Enable threshold Rising and Falling 1.25 1.35 V
Input current Enable threshold – 50 mV -1 μA
Input current Enable threshold + 50 mV -4 μA
VOLTAGE REFERENCE
Voltage reference 0.772 0.8 0.828 V
HIGH-SIDE MOSFET
On resistance BOOT-PH = 3 V, VIN = 3.5 V 115 200
BOOT-PH = 6 V, VIN = 12 V 80 150
ERROR AMPLIFIER
Error amplifier transconductance (gm) –2 μA < I(COMP) < 2 μA, V(COMP) = 1 V 92 μmhos
Error amplifier DC gain(1) VSENSE = 0.8 V 800 V/V
Error amplifier unity gain bandwidth(1) 5 pF capacitance from COMP to GND pins 2.7 MHz
Error amplifier source/sink current V(COMP) = 1.0 V, 100 mV overdrive ±7 μA
Switch current to COMP transconductance VIN = 12 V 10 A/V
PULSE-SKIPPING ECO-MODE
Pulse-skipping Eco-Mode switch current threshold 100 mA
CURRENT LIMIT
Current limit threshold VIN = 12 V 2.3 4.9 A
THERMAL SHUTDOWN
Thermal Shutdown 165 °C
SLOW START (SS PIN)
Charge current V(SS) = 0.4 V 2 μA
SS to VSENSE matching V(SS) = 0.4 V 10 mV
(1) Specified by design

7.6 Switching Characteristics

over operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
TPS54232 Switching Frequency VIN = 12V, 25°C 800 1000 1200 kHz
Minimum controllable on time VIN = 12V, 25°C 110 135 ns
Maximum controllable duty ratio(1) BOOT-PH = 6 V 90% 93%

7.7 Typical Characteristics

Figure 1. On Resistance vs Junction Temperature

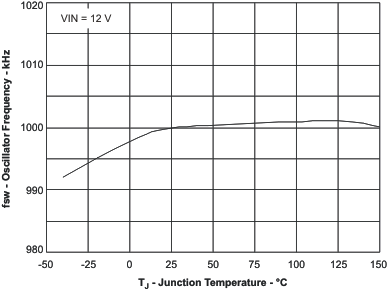

Figure 3. Switching Frequency vs Junction Temperature

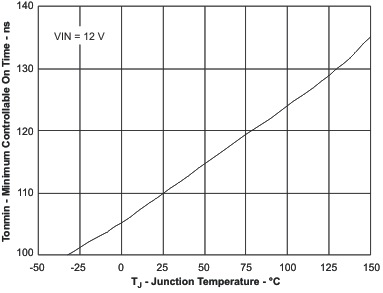

Figure 5. Minimum Controllable On Time vs Junction Temperature

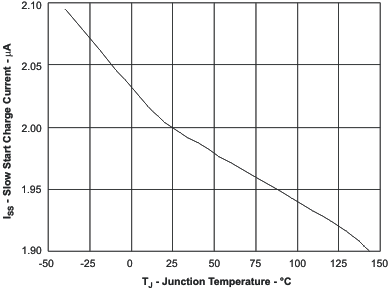

Figure 7. SS Charge Current vs Junction Temperature

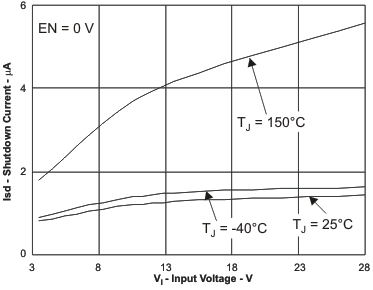

Figure 2. Shutdown Quiescent Current vs Input Voltage
Figure 4. Voltage Reference vs Junction Temperature

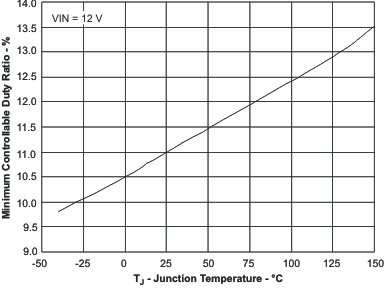

Figure 6. Minimum Controllable Duty Ratios Junction Temperature

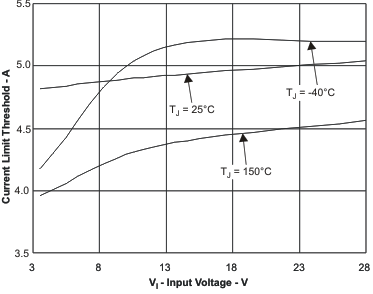

Figure 8. Current Limit Threshold vs Input Voltage
