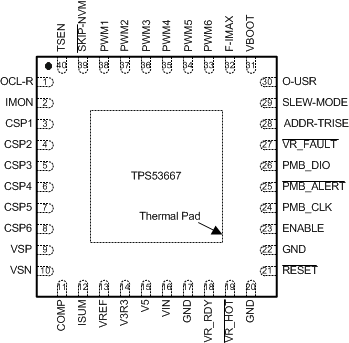

Pin Configuration and Functions

RTA Package
40-Pin QFN
Top View
TPS53667 pinout_rsb40_slusc40.gif

Pin Functions

PIN I/O(1) DESCRIPTION
NAME NO.
ADDR-TRISE 28 I Voltage divider to VREF pin. A resistor (RADDR-TRISE) connected between this pin and GND sets the 3-bits. Bit 2 and bit 1 set the rise slew rate. Bit 0 Selects the LSB of BOOT voltage. The voltage (VADDR-TRISE) sets 4 bits PMBus address. The device latches these settings when V3R3 powers up.
COMP 11 O Output of the gM error amplifier. Resistors and capacitors connected between this pin and the VREF pin set the compensation.
CSP1 3 I Positive current sense inputs. Connect to the IOUT pin of TI smart power stages (ex: CSD9549x). Tie CSP6, CSP5, CSP4, CSP3, or CSP2 to the V3R3 pin according to Table 3 to disable the corresponding phase.
CSP2 4
CSP3 5
CSP4 6
CSP5 7
CSP6 8
ENABLE 23 I VR enable. 1-V I/O level; 100-ns debounce.
F-IMAX 32 I Voltage divider to VREF pin. A resistor (RF-IMAX) connected between this pin and GND sets the operating frequency of the controller. The voltage level (VF-IMAX) sets the maximum operating current of the converter. The IMAX value is an 8-bit A/D where VF-IMAX = VVREF × IMAX / 255. Both are latched at V3R3 power-up.
GND 17 G Ground pin.
GND 20 G Connect these pins to GND. Note this is not IC ground pin.
22
IMON 2 O Analog current monitor output. TPS53667 q_vimon_slusc00.gif
ISUM 12 O A resistor (RISUM) connected between this pin and VREF pin determines the droop.
TPS53667 q_visum_slusc39.gif
(where n is the number of phases)
OCL-R 1 I A resistor (ROCL-R) connected between this pin and GND and the voltage level (VOCL-R) select 1 of 16 OCL levels (per phase current-limit). VOCL-R also sets one of four RAMP levels. The device latches these settings when V3R3 powers up.
O-USR 30 I Voltage divider to VREF pin. A resistor (RO-USR) connected between this pin and GND selects one of seven OSR thresholds or OFF. The voltage level (VO-USR) sets one of seven USR levels or OFF. The device latches these settings when V3R3 powers up.
PMB_ALERT 25 O I2C PMBus interrupt line. Open drain. 3.3-V and 1.8-V logic level.
PMB_CLK 24 I I2C PMBus clock. 3.3-V and 1.8-V logic level.
PMB_DIO 26 I/O I2C PMBus digital I/O line. 3.3-V and 1.8-V logic level.
PWM1 38 O PWM signals for each phase
PWM2 37
PWM3 36
PWM4 35
PWM5 34
PWM6 33
RESET 21 I Reset pin. If this pin is low for more than 1000 ns, the controller pulls the output voltage to the VBOOT level.
SKIP-NVM 39 O A resistor (R SKIP-NVM) connected between this pin and GND sets either pinstrap or NVM configuration mode. This pin can also connect to the FCCM pin of TI smart power stages (ex: CSD9549x) for SKIP or FCCM operation.
SLEW-MODE 29 I Voltage divider to VREF pin. A resistor (RSLEW-MODE) connected between this pin and GND sets 8 slew rates. The voltage level (VSLEW-MODE) sets 4-bit operation modes. Bit 7 for DAC mode (1 for VR12.0; 0 for VR12.5). Bit 6 for the 4-phase interleaving mode (1 for 1/3 and 2/4 two phase interleaving; 0 for 4 phase interleaving individually). Bit 4 for enabling dynamic phase add or drop (1 for enable; 0 for disable). Bit 3 sets zero load-line (1 for zero load-line; 0 for non-zero load-line) The device latches these settings when V3R3 powers up.
TSEN 40 I Connect to the TAO/FAULT pin of TI smart power stages (ex: CSD9549x) to sense the highest temperature of the power stages and to sense the fault signal from the power stages.
V3R3 14 O 3.3-V LDO output. Bypass this pin to GND with a ceramic capacitor with a value of 1-µF or larger.
V5 15 P 5-V power input. Bypass this pin to GND with a ceramic capacitor with a value of 1-µF or larger. This pin is used to power all internal analog circuits.
VBOOT 31 I Voltage divider to VREF pin. A resistor (RVBOOT) connected between this pin and GND sets 3 bits (B[3:1]). The voltage level (VVBOOT) sets 4 bits (B[7:4]). The total 7 bits set 7 of 8 bits of VID of boot voltage (B[7:1]). The device latches these settings when V3R3 powers up.
VIN 16 P Input voltage supply. This pin is also used for input voltage sensing for on-time control and input undervoltage lockout (UVLO).
VR_RDY 18 O Power good open-drain output for the controller. This pin is typically pulled up to V3R3 pin through a resistor with a value of 3-kΩ or larger.
VR_FAULT 27 O VR fault indicator (open-drain). The failures include shorts of the high-side FETs, over temperature, output overvoltage, and overcurrent conditions of the input. The fault signal should be used on the platform to remove the power source either by firing a shunting SCR to blow a fuse or by turning off the AC power supply. When the failure occurs, the VR_FAULT pin is LOW. This pin is typically pulled up to V3R3 pin through a resistor with a value of 3-kΩ or larger. Leave this pin floating if not used.
VR_HOT 19 O Thermal flag open drain output. Active low. This pin is typically pulled up to V3R3 pin through a resistor with a value of 3-kΩ or larger. Leave this pin floating if not used.
VREF 13 O 1.7-V, 500-µA, LDO reference voltage. Bypass this pin to GND with a ceramic capacitor with a value of 0.33 µF. Connect the VREF pin to the REFIN pin of TI smart power stages (ex: CSD9549x) as the current-sense reference voltage.
VSN 10 I Negative input of the remote voltage sense amplifier. Connect this pin directly to the GND of the load.
VSP 9 I Positive input of the remote voltage sense amplifier. Connect this pin directly to the load.
Thermal Pad GND Thermal pad. Connect the thermal pad to the ground plane with multiple vias.
I = Input, O = Output, P = Power, I/O = Bi-directional, GND = ground
