11 Layout

11.1 Layout Guidelines

Follow these guidelines to lay out the printed-circuit-board (PCB) that is used for the TPS386596.

  • Avoid long traces from the SENSE pin to the resistor divider. Instead, run the long traces from the RSnH to VMON(n).
  • Place the VDD decoupling capacitor (CVDD) close to the device.
  • Avoid using long traces for the VDD supply node. The VDD capacitor (CVDD), along with parasitic inductance from the supply to the capacitor, can form an LC tank and create ringing with peak voltages above the maximum VDD voltage.

11.2 Layout Example

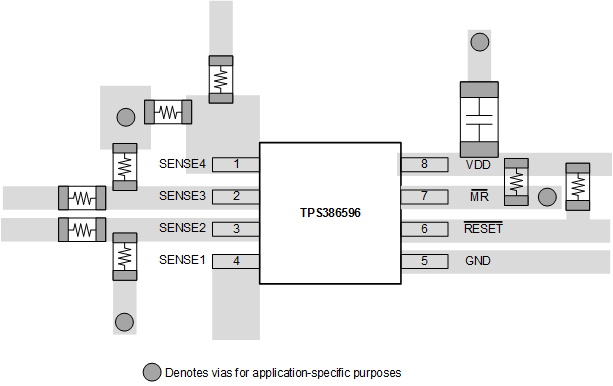

TPS386596 pcb_layout_msop_lvsa75.gifFigure 20. Example Layout (DGK Package)
