Typical Characteristics

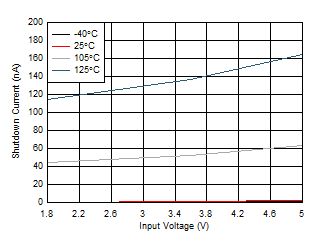

TPS22919-Q1 D001_SLVSEN5.gif
VON ≤ VIL
Figure 1. Shutdown Current vs Input Voltage

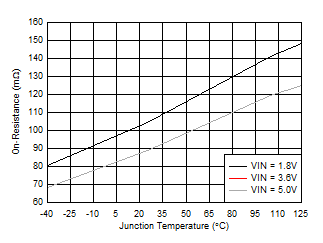

TPS22919-Q1 D003_SLVSEN5.gif
ILOAD = –200 mA
Figure 3. On-Resistance vs Junction Temperature

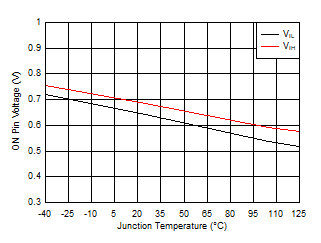

TPS22919-Q1 D005_SLVSEN5.gif
VON ≤ VIL
Figure 5. VIH/VIL vs Junction Temperature
TPS22919-Q1 D007_SLVSEN5.gif
CL = 0.1 μF RL = 100 Ω
Figure 7. Turn ON Time vs Input Voltage

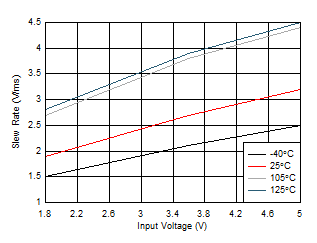

TPS22919-Q1 D009_SLVSEN5.gif
CL = 0.1 μF RL = 100 Ω
Figure 9. Output Slew Rate vs Input Voltage
TPS22919-Q1 D011_SLVSEN5.gif
RL = 100 Ω TJ = 25°C
Figure 11. Rise Time vs Input Voltage Across Load Capacitance

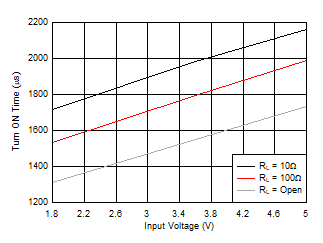

TPS22919-Q1 D013_SLVSEN5.gif
CL = 0.1 μF TJ = 25°C
Figure 13. Turn ON Time vs Input Voltage Across Load Resistance

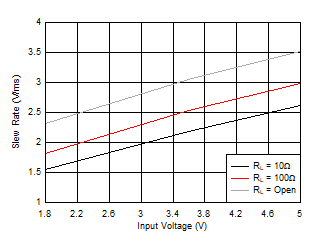

TPS22919-Q1 D015_SLVSEN5.gif
CL = 0.1 μF TJ = 25°C
Figure 15. Output Slew Rate vs Input Voltage Across Load Resistance

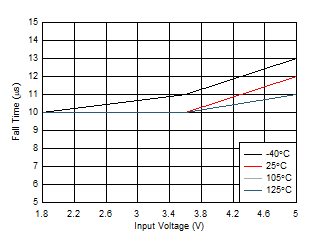

TPS22919-Q1 D018_SLVSEN5.gif
CL = 0.1 μF RL = 100 Ω RPD,QOD = Short
Figure 17. Fall Time vs Input Voltage
TPS22919-Q1 D002_SLVSEN5.gif
VON ≥ VIH
Figure 2. Quiescent Current vs Input Voltage

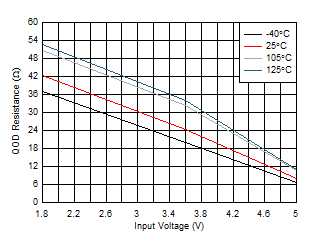

TPS22919-Q1 D004_SLVSEN5.gif
VON ≤ VIL
Figure 4. QOD Resistance vs Input Voltage

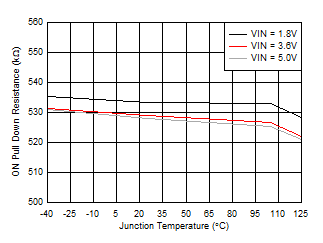

TPS22919-Q1 D006_SLVSEN5.gif
VON ≤ VIL
Figure 6. ON Pull Down Resistance vs Junction Temperature

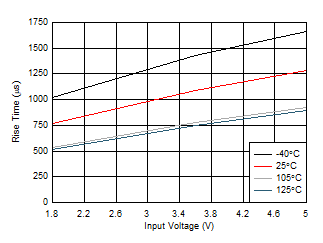

TPS22919-Q1 D008_SLVSEN5.gif
CL = 0.1 μF RL = 100 Ω
Figure 8. Rise Time vs Input Voltage

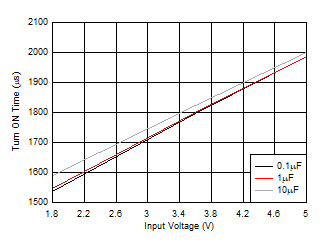

TPS22919-Q1 D010_SLVSEN5.gif
RL = 100 Ω TJ = 25°C
Figure 10. Turn ON Time vs Input Voltage Across Load Capacitance

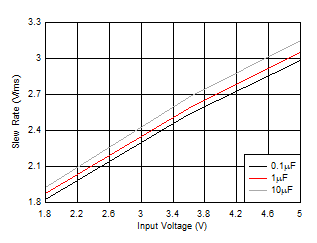

TPS22919-Q1 D012_SLVSEN5.gif
RL = 100 Ω TJ = 25°C
Figure 12. Slew Rate vs Input Voltage Across Load Capacitance
TPS22919-Q1 D014_SLVSEN5.gif
CL = 0.1 μF TJ = 25°C
Figure 14. Rise Time vs Input Voltage Across Load Resistance

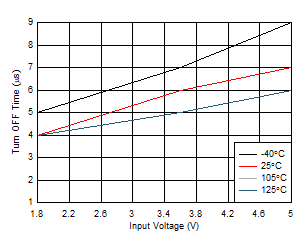

TPS22919-Q1 D016_SLVSEN5.gif
CL = 0.1 μF RL = 100 Ω
Figure 16. Turn OFF Time vs Input Voltage
TPS22919-Q1 Rise_1_8.png
CL = 0.1 μF RL = 100 Ω
Figure 18. Rise Time with VIN = 1.8 V

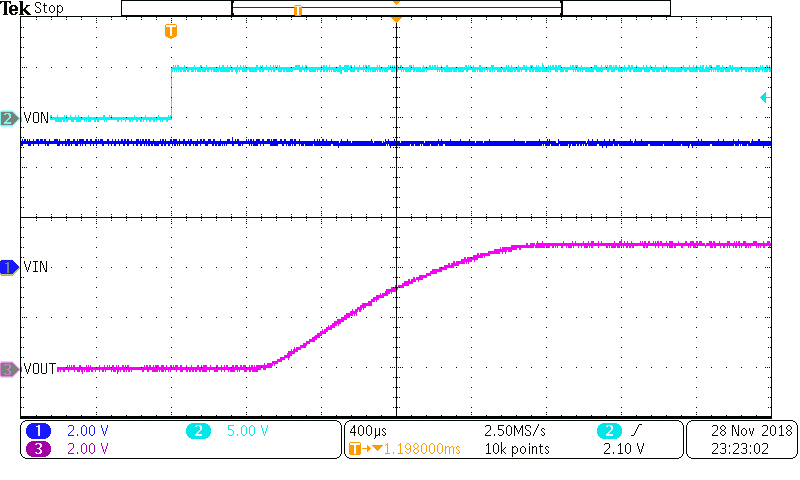

TPS22919-Q1 Rise_5.png
CL = 0.1 μF RL = 100 Ω
Figure 20. Rise Time with VIN = 5 V

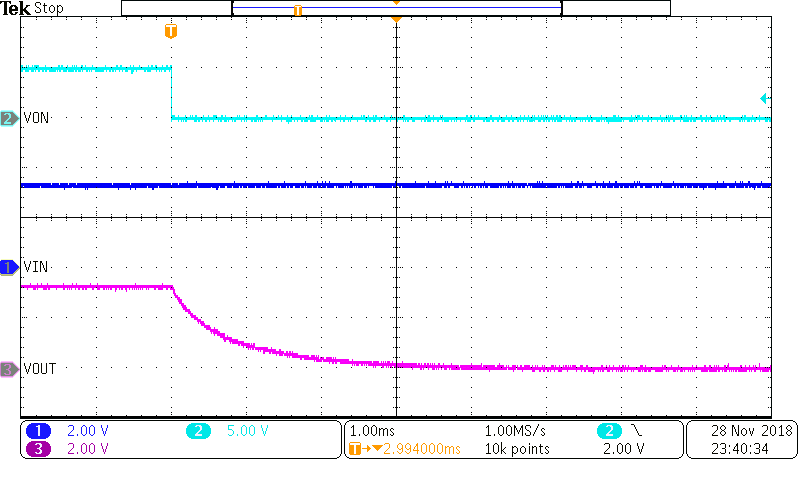

TPS22919-Q1 Fall_Slow.png
CL = 10 μF RL = 100 Ω
Figure 22. Turn Off with a Large Load Capacitance

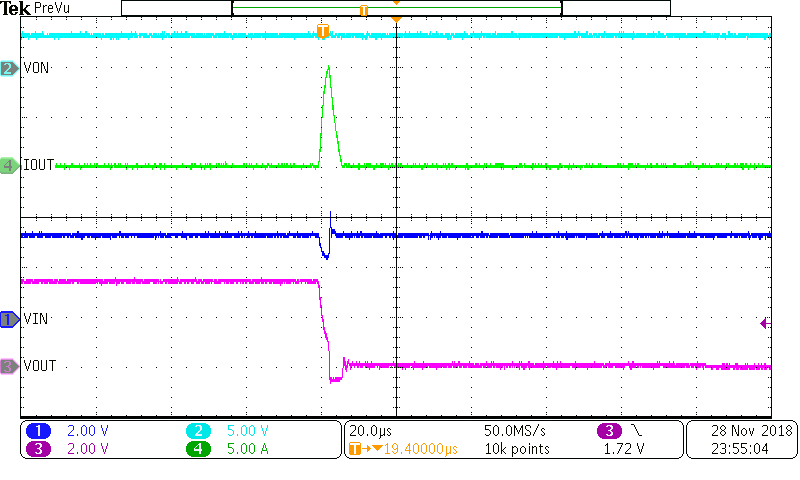

TPS22919-Q1 Hot_Short.png
VIN = 3.3 V
Figure 24. Hot Short Event when ON
TPS22919-Q1 Rise_3_3.png
CL = 0.1 μF RL = 100 Ω
Figure 19. Rise Time with VIN = 3.3 V
TPS22919-Q1 Fall_fast.png
CL = Open RL = 100 Ω
Figure 21. Turn Off with a Small Load Capacitance
TPS22919-Q1 Turn_on_short.png
VIN = 3.3 V
Figure 23. Turn On Into an Output Short

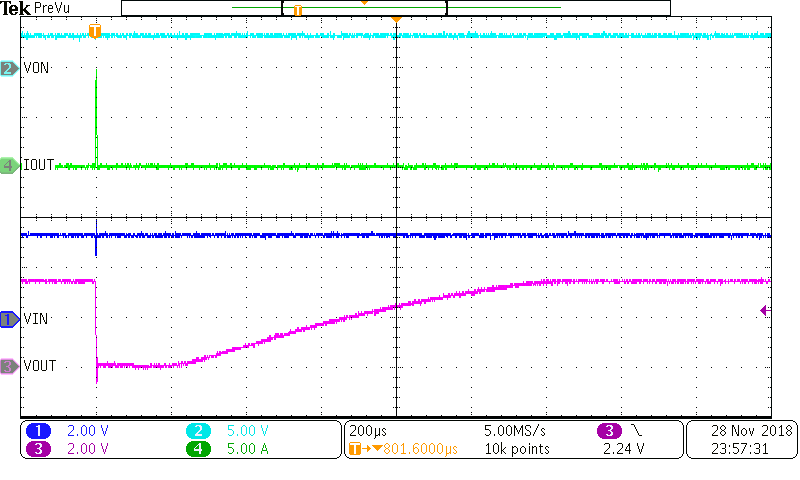

TPS22919-Q1 Short_then_Recover.png
VIN = 3.3 V
Figure 25. Hot Short Event when ON and Recovery
