Manual Power ON Applied to the DELAY/M_DRV Pin

If VDD is applied to the DELAY/M_DRV pin after start-up is completed, the TPL5111 recognizes this as a manual Power ON condition. In this case REXT is not re-read. If the manual Power ON is asserted during the POR or during the REXT reading procedure, the reading procedure is aborted and is restarted as soon as the manual Power ON switch is released. A pulse on the DELAY/M_DRV pin is recognized as a valid manual Power ON only if it lasts at least 20 ms (observation time is 30 ms). If DRVn is already HIGH the manual Power ON is ignored. The manual Power ON may be implemented using a switch (momentary mechanical action).

TPL5111 M_DRV_5111_TIMER.gifFigure 11. Manual Power ON in Timer Mode

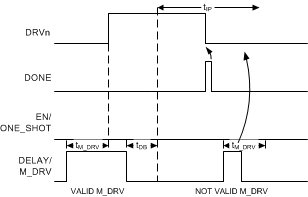

TPL5111 5111_OS_MDRV.gifFigure 12. Manual Power ON in One-Shot Mode
