7 Specifications

7.1 Absolute Maximum Ratings(1)(2)(3)

MIN MAX UNIT
VDD to GND Supply voltage –0.3 7 V
VSS to GND –7 0.3 V
VDD to VSS 7 V
VH, VL, VW Voltage at resistor pins VSS – 0.3 VDD + 0.3 V
VI Digital input voltage –0.3 VDD + 0.3 V
IH, IL, IW
Pulse current ±20 mA
Continuous current ±2 mA
(1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied.
(2) The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum.
(3) All voltages are with respect to ground, unless otherwise specified.

7.2 Handling Ratings

MIN MAX UNIT
Tstg Storage temperature range –65 150 °C

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
VDD, VSS Single supply operation (VSS = 0 V) 2.7 5.5 V
Dual supply operation ±2.25 ±2.75
VH, VL Pin voltage VSS VDD V
VIH Voltage input high (SCL, SDA, A0, A1, A2) 0.7 × VDD 5.5 V
VIL Voltage input low (SCL, SDA, A0, A1, A2) 0 0.3 × VDD V
IW Wiper current ±2 mA
TJ Junction temperature –40 125 °C

7.4 Thermal Information

THERMAL METRIC(1) TPL0102-EP UNIT
PW
14 PINS
RθJA Junction-to-ambient thermal resistance(2) 112.9 °C/W
RθJC(top) Junction-to-case (top) thermal resistance(3) 39.9
RθJB Junction-to-board thermal resistance(4) 55.9
ψJT Junction-to-top characterization parameter(5) 3.5
ψJB Junction-to-board characterization parameter(6) 55.2
RθJC(bot) Junction-to-case (bottom) thermal resistance(7) N/A
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
(2) The junction-to-ambient thermal resistance under natural convection is obtained in a simulation on a JEDEC-standard, high-K board, as specified in JESD51-7, in an environment described in JESD51-2a.
(3) The junction-to-case (top) thermal resistance is obtained by simulating a cold plate test on the package top. No specific JEDEC-standard test exists, but a close description can be found in the ANSI SEMI standard G30-88.
(4) The junction-to-board thermal resistance is obtained by simulating in an environment with a ring cold plate fixture to control the PCB temperature, as described in JESD51-8.
(5) The junction-to-top characterization parameter, ψJT, estimates the junction temperature of a device in a real system and is extracted from the simulation data for obtaining θJA, using a procedure described in JESD51-2a (sections 6 and 7).
(6) The junction-to-board characterization parameter, ψJB, estimates the junction temperature of a device in a real system and is extracted from the simulation data for obtaining θJA , using a procedure described in JESD51-2a (sections 6 and 7).
(7) The junction-to-case (bottom) thermal resistance is obtained by simulating a cold plate test on the exposed (power) pad. No specific JEDEC standard test exists, but a close description can be found in the ANSI SEMI standard G30-88.

7.5 Electrical Characteristics

VDD = 2.7 to 5.5 V, VSS = 0 V, VH= VDD, VL= GND, TJ = –40°C to 125°C (unless otherwise noted). Typical values are at
VDD = 5 V, TJ = 25°C (unless otherwise noted).
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
RTOT End-to-end resistance
(Between H and L pins)
TPL0102-100 80 100 120
RH, RL Pin resistance 60 200 Ω
RW Wiper resistance 25 120 Ω
CH, CL(14)(15) Pin capacitance 22 pF
CW(14)(15) Wiper capacitance 16 pF
ILKG Pin leakage current VH = VSS to VDD, VL = Floating
or
VL = VSS to VDD, VH = Floating
0.1 1 µA
TCR Resistance temperature coefficient Input Code = 0x80h 92 ppm/°C
RTOT,MATCH Channel-to-channel resistance match 0.1 %
VOLTAGE DIVIDER MODE
INL(1)(3) Integral non-linearity –0.5 0.5 LSB
DNL(1)(4) Differential non-linearity –0.25 0.25 LSB
ZSERROR(2)(5) Zero-scale error 0 0.1 2 LSB
FSERROR(2)(6) Full-scale error –2 –0.1 0 LSB
VMATCH(2)(7) Channel-to-channel matching Wiper at the same tap position, same voltage at all H and same voltage at all L pins –2 2 LSB
TCV Ratiometric temperature coefficient Wiper set at mid-scale 4 ppm/°C
BW Bandwidth TPL0102-100 Wiper set at midscale
CLOAD = 10 pF
229 kHz
TSW Wiper setting time TPL0102-100 3.6 µS
THD Total harmonic distortion VH = 1 VRMS at 1 kHz,
VL = (VDD – VSS)/2,
Measurement at W
TPL0102-100 0.03 %
XTALK Crosstalk ƒH = 1 kHz,
VL = GND,
Measurement at W
–82 dB
RHEOSTAT MODE (Measurements between W and L with H not connected, or between W and H with L not connected)
RINL(8)(10) Integral non-linearity –1 1 LSB
RDNL(8)(11) Differential non-linearity –0.5 0.5 LSB
ROFFSET(9)(12) Offset 0 0.2 2 LSB
RMATCH(9)(13) Channel-to-channel matching –2 2 LSB
RBW Bandwidth Code = 0x00h,
L Floating,
Input applied to W, Measure at H, CLOAD = 10 pF
TPL0102-100 54 kHz
(1) LSB = (VMEAS[code 255] – VMEAS[code 0]) / 255
(2) IDEAL_LSB = (VH – VL) / 256
(3) INL = ((VMEAS[code x] – VMEAS[code 0]) / LSB) – [code x]
(4) DNL = ((VMEAS[code x] – VMEAS[code x-1]) / LSB) – 1
(5) ZSERROR = VMEAS[code 0] / IDEAL_LSB
(6) FSERROR = [(VMEAS[code 255] – (VH – VL)) / IDEAL_LSB] + 1
(7) VMATCH = (VMEAS_A[code x] – VMEAS_B[code x]) / IDEAL_LSB
(8) RLSB = (RMEAS[code 255] – RMEAS[code 0]) / 255
(9) IDEAL_RLSB = RTOT / 256
(10) RINL =( (RMEAS[code x] – RMEAS[code 0]) / RLSB) – [code x]
(11) RDNL =( (RMEAS[code x] – RMEAS[code x-1]) / RLSB ) – 1
(12) ROFFSET = RMEAS[code 0] / IDEAL_RLSB
(13) RMATCH = (RMEAS_A[code x] – RMEAS_B[code x]) / IDEAL_RLSB
(14) Pin and wiper capacitance extracted from self admittance of three port network measurement
(15) Digital Potentiometer Macromodel
1. See data sheet for absolute maximum and minimum recommended operating conditions.
2. Silicon operating life design goal is 10 years at 105°C junction temperature (does not include package interconnect life).
3. Enhanced plastic product disclaimer applies.
Figure 1. TPL0102-EP Electromigration Fail Mode/Wirebond Life Derating Chart

7.6 Operating Characteristics

VDD = 2.7 to 5.5 V, VSS = 0 V, VH = VDD, VL = GND, TJ= –40°C to 125°C (unless otherwise noted). Typical values are at
VDD = 5 V, TJ = 25°C (unless otherwise noted).
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
IDD(STBY) VDD standby current VDD = 2.75 V, VSS = –2.75 V,
I2C interface in standby mode
–40°C 0.2 1.5 µA
25°C 1
125°C 16
ISS(STBY) VSS standby current VDD = 2.75 V, VSS = –2.75 V,
I2C interface in standby mode
–40°C –1.5 –0.2 µA
25°C –1
125°C –16
IDD(SHUTDOWN) VDD shutdown current VDD = 2.75 V, VSS = –2.75 V,
I2C interface in standby mode
–40°C 0.2 1.5 µA
25°C 1
125°C 16
ISS(SHUTDOWN) VSS shutdown current VDD = 2.75 V, VSS = –2.75 V,
I2C interface in standby mode
–40°C –1.5 –0.2 µA
25°C –1
125°C –16
IDD VDD current during non-volatile write VDD = 2.75 V, VSS = –2.75 V 350 µA
ISS VSS current during non-volatile write VDD = 2.75 V, VSS = –2.75 V -350 µA
ILKG-DIG Digital pins leakage current (A0, A1, A2, SDA, and SCL) –1 1 µA
VPOR Power-on recall voltage Minimum VDD at which memory recall occurs 2 V
EEPROM SPECIFICATION
EEPROM endurance 1000 Cycles
EEPROM retention 100000 Hours
tWC Non-volatile write cycle time 20 ms
WIPER TIMING CHARACTERISTICS
tWRT Wiper response time SCL falling edge of last bit of wiper data byte to wiper new position 600 ns
tSHUTDOWNREC Wiper position recall time from shut-down mode SCL falling edge of last bit of ACR data byte to wiper stored position and H connection 800 ns
tD Power-up delay VDD above VPOR, to wiper initial value register recall completed, and I2C interface in standby mode 35 100 µs
CIN Pin capacitance A0, A1, A2, SDA SCL pins 7 pF
I2C INTERFACE SPECIFICATIONS
VIH Input high voltage 0.7 × VDD 5.5 V
VIL Input low voltage 0 0.3 × VDD V
VOL Output low voltage SDA pin, IOL = 4 mA 0.4 V
CIN Pin capacitance A0, A1, A2, SDA SCL pins 7 pF

7.7 Timing Requirements

VDD = 2.7 to 5.5 V, VSS = 0 V, VH = VDD, VL = GND, TJ = –40°C to 125°C (unless otherwise noted). Typical values are at
VDD = 5 V, TJ = 25°C (unless otherwise noted).
STANDARD MODE I2C BUS FAST MODE I2C BUS UNIT
MIN MAX MIN MAX
I2C INTERFACE TIMING REQUIREMENTS
ƒSCL I2C clock frequency 0 100 0 400 kHz
tSCH I2C clock high time 4 0.6 µs
tSCL I2C clock low time 4.7 1.3 µs
tsp I2C spike time 0 50 0 50 ns
tSDS I2C serial data setup time 250 100 ns
tSDH I2C serial data hold time 0 0 ns
tICR I2C input rise time 1000 20 + 0.1Cb(1) 300 ns
tICF I2C input fall time 300 20 + 0.1Cb(1) 300 ns
tICF I2C output fall time, 10- to 400-pF bus 300 20 + 0.1Cb(1) 300 ns
tBUF I2C bus free time between stop and start 4.7 1.3 µs
tSTS I2C start or repeater start conditions setup time 4.7 1.3 µs
tSTH I2C start or repeater start condition hold time 4 0.6 µs
tSPS I2C stop condition setup time 4 0.6 µs
tVD(DATA) Valid data time, SCL low to SDA output valid 1 1 µs
tVD(DATA) Valid data time of ACK condition, ACK signal from SCL low to SDA (out) low 1 1 µs
(1) Cb = total capacitance of one bus line in pF

7.8 Typical Characteristics

Figure 2. IDD Standby Current vs Temperature
Figure 4. IDD Shutdown Current vs Temperature

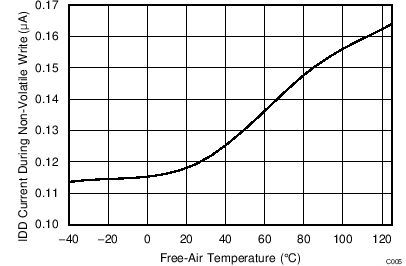

Figure 6. IDD Current (Non-Volatile Write) vs Temperature
Figure 8. Wiper Resistance (RW) vs Temperature

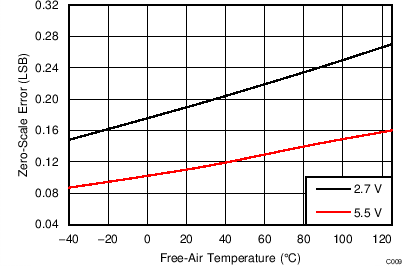

Figure 10. Zero-Scale Error vs Temperature
Figure 12. Offset vs Temperature
Figure 3. ISS Standby Current vs Temperature
Figure 5. ISS Shutdown Current vs Temperature
Figure 7. ISS Current (Non-Volatile Write) vs Temperature
Figure 9. End-to-End Resistance (Between H and L Pins) vs Temperature
Figure 11. Full-Scale Error vs Temperature
