SLOS313C December 2000 – March 2016 TPA6111A2
PRODUCTION DATA.
请参考 PDF 数据表获取器件具体的封装图。

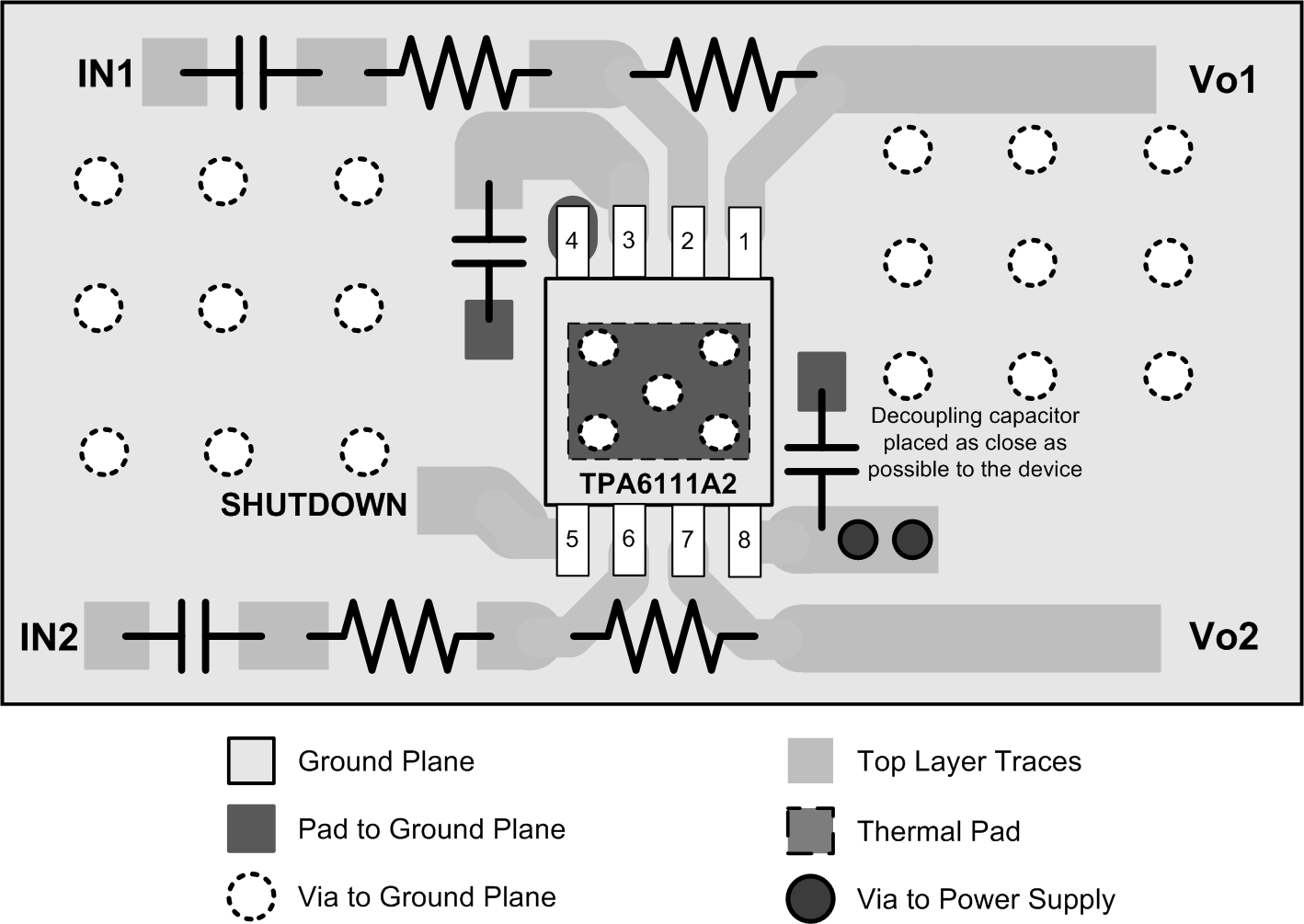

Solder the exposed metal pad on the TPA6111A2 DGN package to the PCB. The pad on the PCB may be grounded or may be allowed to float (not be connected to ground or power). If the pad is grounded, it must be connected to the same ground as the GND pin (4). See the layout and mechanical drawings in Mechanical, Packaging, and Orderable Information for proper sizing. Soldering the thermal pad improves mechanical reliability, improves grounding of the device, and enhances thermal conductivity of the package.
