6.6 Typical Characteristics

at operating temperature range (TJ = –40°C to +125°C), VIN = VOUT(nom) + 0.5 V or 2 V (whichever is greater), IOUT = 1 mA, VEN = VIN, and CIN = COUT = 1 µF (unless otherwise noted)

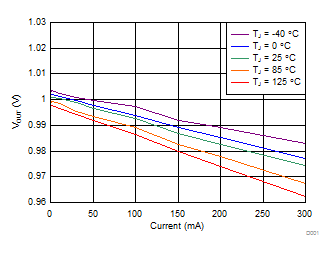

TLV743P D001_sbvs235.gif
TLV74310PDBV
Figure 1. 1-V Load Regulation vs IOUT and Temperature
TLV743P D002_sbvs235.gif
TLV74318PDBV
Figure 3. 1.8-V Load Regulation vs IO and Temperature
TLV743P D003_sbvs235.gif
TLV74333PDBV

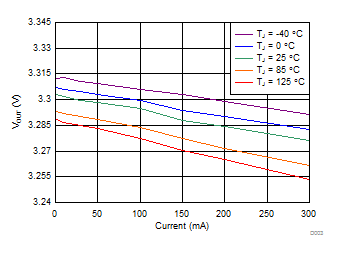

Figure 5. 3.3-V Load Regulation vs IOUT and Temperature
TLV743P D024_sbvs235.gif
TLV74312PDBV

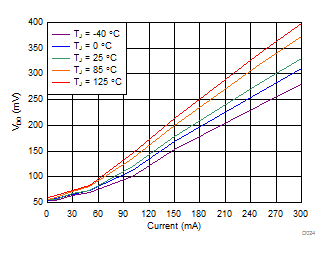

Figure 7. 1.2-V Dropout Voltage vs IOUT and Temperature
TLV743P D008_sbvs235.gif
TLV74318PDBV
Figure 9. 1.8-V Dropout Voltage vs IOUT and Temperature
TLV743P D009_sbvs235.gif
TLV74333PDBV

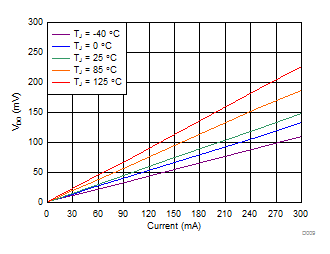

Figure 11. 3.3-V Dropout Voltage vs IOUT and Temperature
TLV743P D019_sbvs235.gif
TLV74318PDBV
Figure 13. 1.8-V Regulation vs VIN (Line Regulation) and Temperature
TLV743P D013_sbvs235.gif
Figure 15. Ground Pin Current vs VIN
TLV743P D014_sbvs235.gif

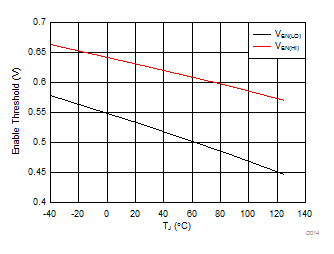

Figure 17. Enable Threshold vs Temperature
TLV743P D021_sbvs235.gif
TLV74318PDBV
Figure 19. 1.8-V Foldback Current Limit vs
IOUT and Temperature
TLV743P D017_sbvs235.gif
IOUT = 300 mA
Figure 21. Power-Supply Rejection Ratio vs Frequency
TLV743P LineTrans10mA.gif
TLV74318PDBV, IOUT = 10 mA, 1-µF output capacitor
Figure 23. Line Transient
TLV743P LoadTranswcap1p0.gif
TLV74310PDBV VIN = 2 V, 1-µF output capacitor, output current slew rate = 0.25 A/µs
Figure 25. 1-V, 50-mA to 300-mA Load Transient
TLV743P Triangle.gif
TLV74318PDBV, RL = 6.2 Ω, VEN = VIN, 1-µF output capacitor
Figure 27. VIN Power-Up and Power-Down
TLV743P Shutdown.gif
TLV74318PDBV, IOUT = 300 mA, 1-µF output capacitor
Figure 29. Shutdown Response With Enable
TLV743P D005_sbvs235.gif
TLV74310PDQN
Figure 2. 1-V Load Regulation vs IOUT and Temperature
TLV743P D006_sbvs235.gif
TLV74318PDQN

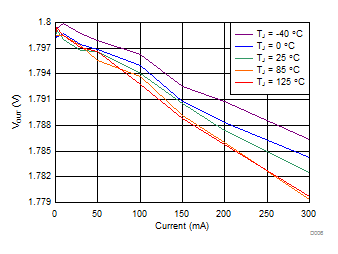

Figure 4. 1.8-V Load Regulation vs IOUT and Temperature
TLV743P D007_sbvs235.gif
TLV74333PDQN
Figure 6. 3.3-V Load Regulation vs IOUT and Temperature
TLV743P D025_sbvs235.gif
TLV74312PDQN
Figure 8. 1.2-V Dropout Voltage vs IOUT and Temperature
TLV743P D010_sbvs235.gif
TLV74318PDQN

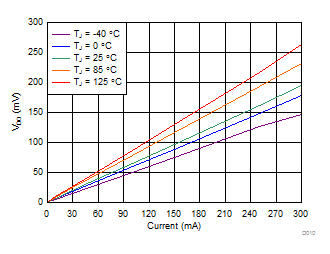

Figure 10. 1.8-V Dropout Voltage vs IOUT and Temperature
TLV743P D011_sbvs235.gif
TLV74333PDQN
Figure 12. 3.3-V Dropout Voltage vs IOUT and Temperature
TLV743P D012_sbvs235.gif
Figure 14. Ground Pin Current vs IOUT and Temperature
TLV743P D015_sbvs235.gif
IOUT = 0 mA
Figure 16. Shutdown Current vs VIN and Temperature
TLV743P D023_sbvs235.gif
TLV74310PDBV

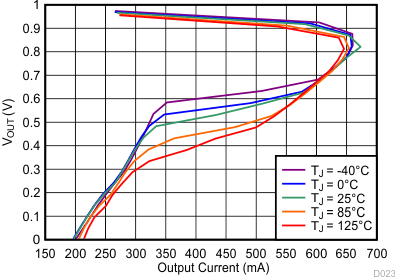

Figure 18. 1-V Foldback Current Limit vs
IOUT and Temperature
TLV743P D022_sbvs235.gif
TLV74333PDBV

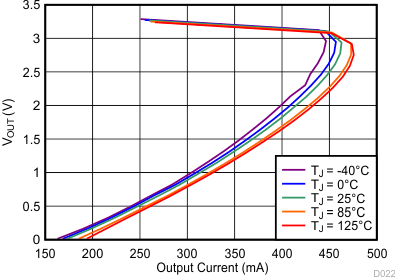

Figure 20. 3.3-V Foldback Current Limit vs
IOUT and Temperature
TLV743P D016_sbvs235.gif
IOUT = 300 mA
Figure 22. Output Spectral Noise Density
TLV743P LineTrans300mA.gif
TLV74318PDBV IOUT = 300 mA 1-µF output capacitor
Figure 24. Line Transient
TLV743P LoadTranswcap.gif
TLV74333PDBV, VIN = 3.8 V,1-µF output capacitor, output current slew rate = 0.25 A/µs
Figure 26. 3.3 V, 50-mA to 300-mA Load Transient
TLV743P Enstartup1p8.gif
TLV74318PDBV, RL = 6.2 Ω, 1-µF output capacitor
Figure 28. Startup with EN
TLV743P Current_Limit.gif
TLV74318PDBV, 1-µF output capacitor
Figure 30. Foldback Current Limit Response
