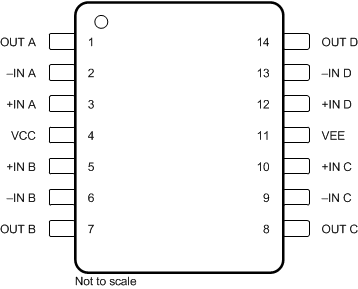

Pin Functions: TLV7034/44

PINI/ODESCRIPTION
NAMETSSOPWQFN
–IN1 A216IInverting input, channel A
+IN A31INoninverting input, channel A
–IN B65IInverting input, channel B
+IN B54INoninverting input, channel B
–IN C98IInverting input, channel C
+IN C109INoninverting input, channel C
–IN D1313IInverting input, channel D
+IN D1212INoninverting input, channel D
NC3, 10No internal connection
OUT A115OOutput, channel A
OUT B76OOutput, channel B
OUT C87OOutput, channel C
OUT D1414OOutput, channel D
VEE1111Negative (lowest) supply or ground (for single-supply operation)
VCC42Positive (highest) supply
