8.2.1.3 Application Curves

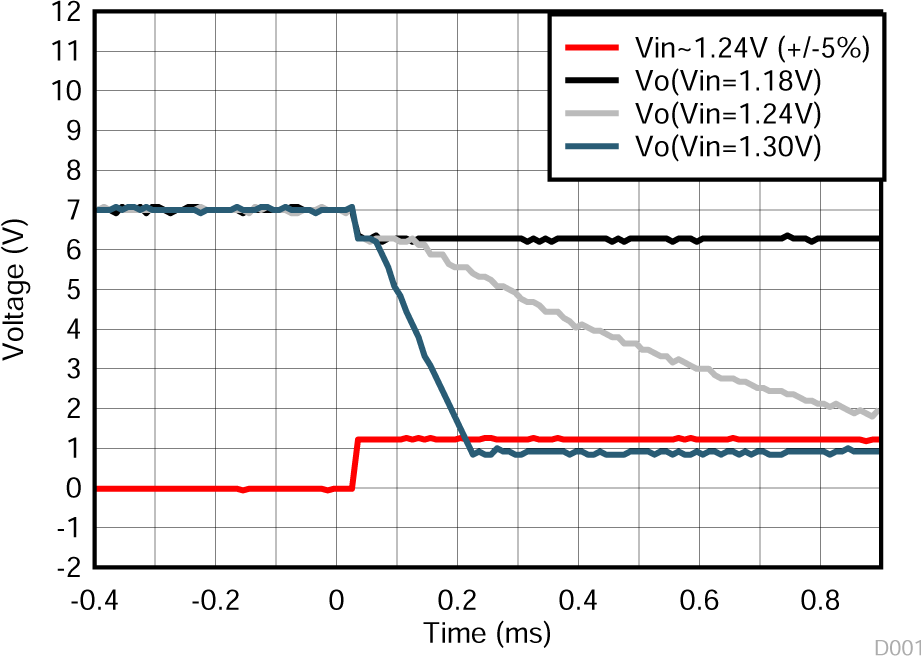

TLV431 TLV431A TLV431B Output Response with Small Overdrive VoltagesFigure 8-3 Output Response with Small Overdrive Voltages

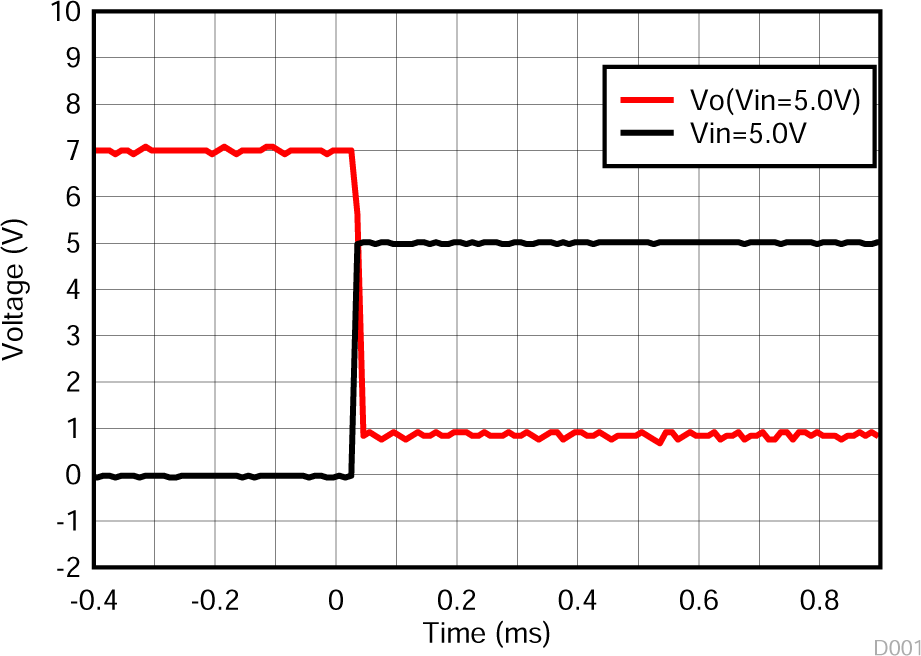

TLV431 TLV431A TLV431B Output Response with Large Overdrive VoltageFigure 8-4 Output Response with Large Overdrive Voltage
