6 Parameter Measurement Information

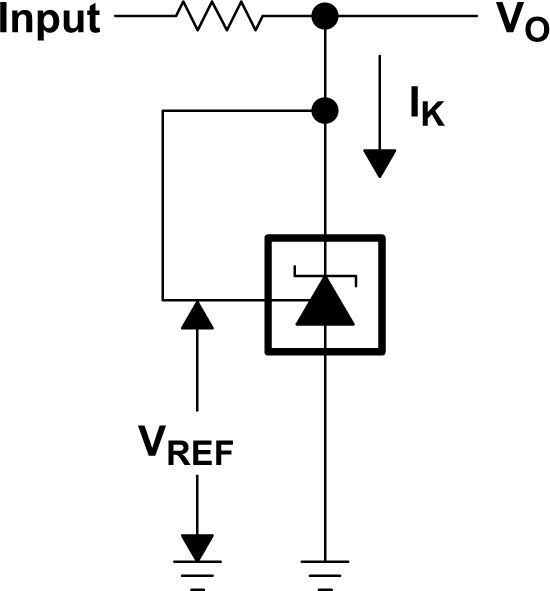

TLV431 TLV431A TLV431B Test Circuit for vKA = VREF, VO = VKA = VREF Figure 6-1 Test Circuit for vKA = VREF, VO = VKA = VREF

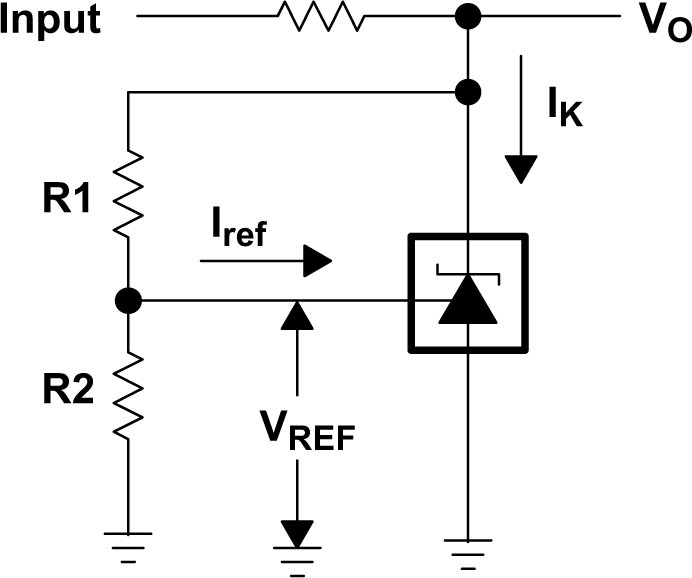

TLV431 TLV431A TLV431B Test Circuit for vKA > VREF, VO = VKA = VREF × (1 + R1/R2) + Iref × R1 Figure 6-2 Test Circuit for vKA > VREF, VO = VKA = VREF × (1 + R1/R2) + Iref × R1

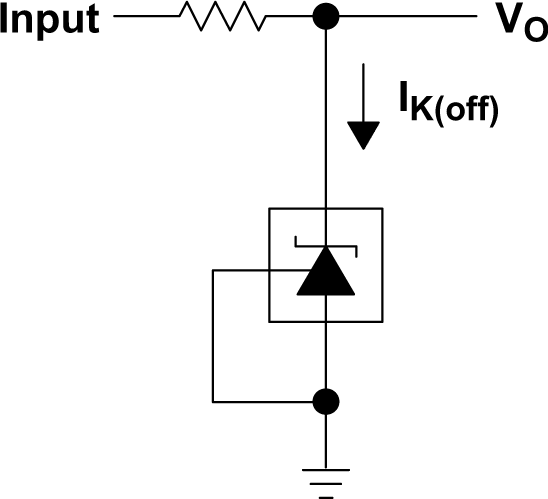

TLV431 TLV431A TLV431B Test Circuit for IK(off) Figure 6-3 Test Circuit for IK(off)
