12 Layout

12.1 Layout Guidelines

To ensure reliability of the device, following common printed-circuit-board layout guidelines is recommended.

  • Bypass capacitors should be used on power supplies.
  • Short trace lengths should be used to avoid excessive loading.
  • Placing pads on the signal paths for loading capacitors or pullup resistors to help adjust rise and fall times of signals depending on the system requirements.

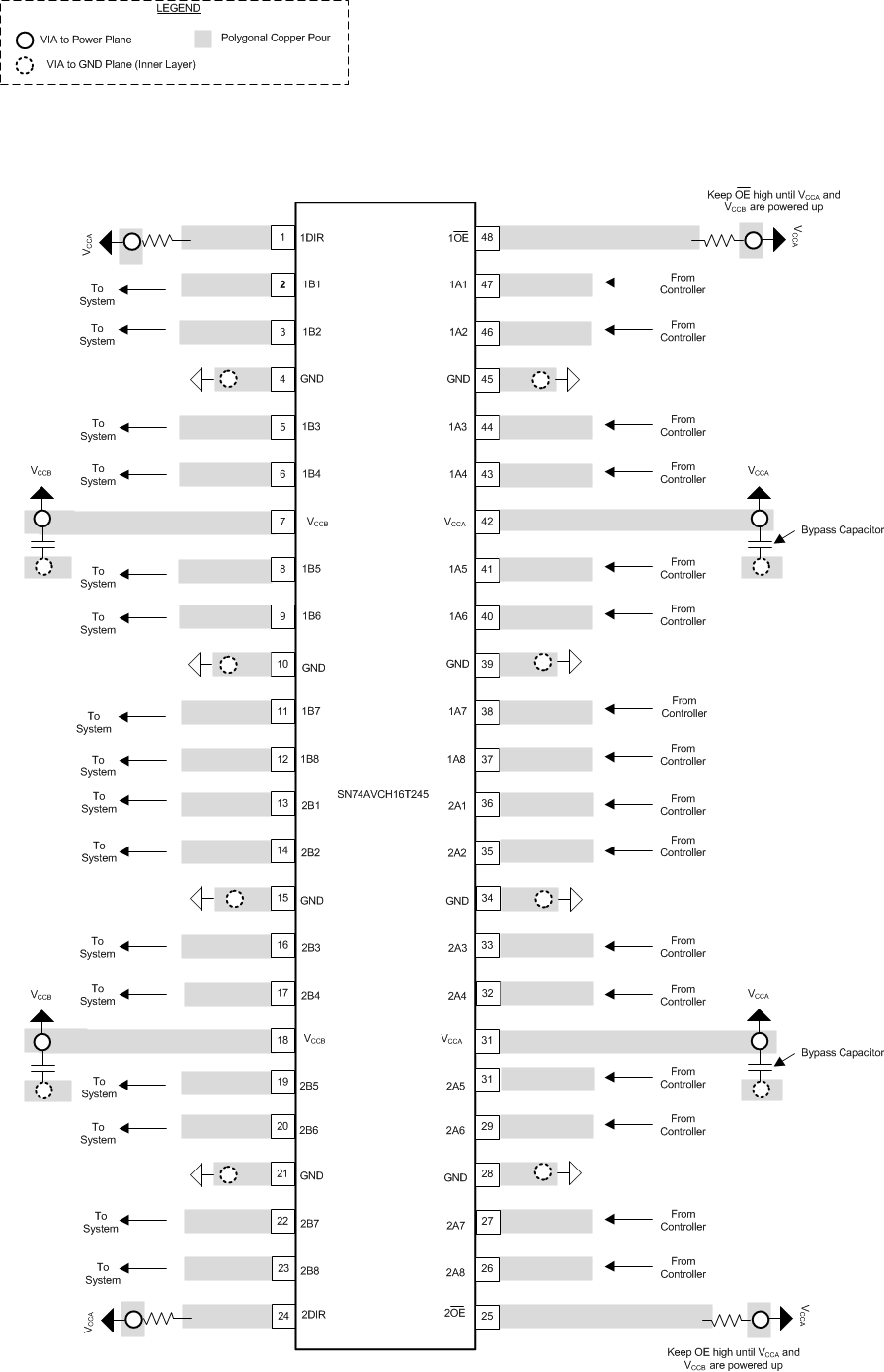

12.2 Layout Example

SN74LVC16T245 layout-example-sces636.gifFigure 6. SN74LVC16T245 Layout Example
