9 Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

9.1 Application Information

The SN74HC594 is a low drive CMOS device that can be used for a multitude of bus interface type applications where output ringing is a concern. The low drive and slow edge rates will minimize overshoot and undershoot on the outputs.

9.2 Typical Application

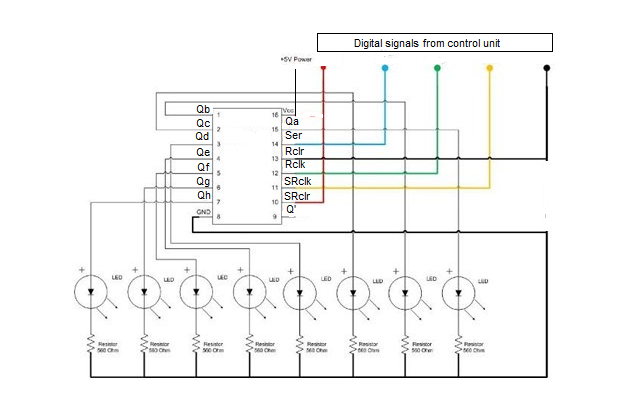

SN54HC594 SN74HC594 typapp1.pngFigure 6. Typical Application Schematic

9.2.1 Design Requirements

This device uses CMOS technology and has balanced output drive. Take care to avoid bus contention because it can drive currents that would exceed maximum limits. The high drive will also create fast edges into light loads so consider routing and load conditions to prevent ringing.

9.2.2 Detailed Design Procedure

  • Recommended input conditions:
  • Recommended output conditions:
    • Load currents should not exceed 35 mA per output and 70 mA total for the part
    • Outputs should not be pulled above VCC

9.2.3 Application Curves

SN54HC594 SN74HC594 appcurve1.pngFigure 7. Switching Characteristics Comparison
