10.2.2.2 Signal Connectivity

While there is no formal industry standardized specification for the input interface of LVDS LCD panels, the industry has aligned over the years on a certain data format (bit order). through show how each signal should be connected from the graphic source through the SN65LVDS93B input, output and LVDS LCD panel input. Detailed notes are provided with each figure.

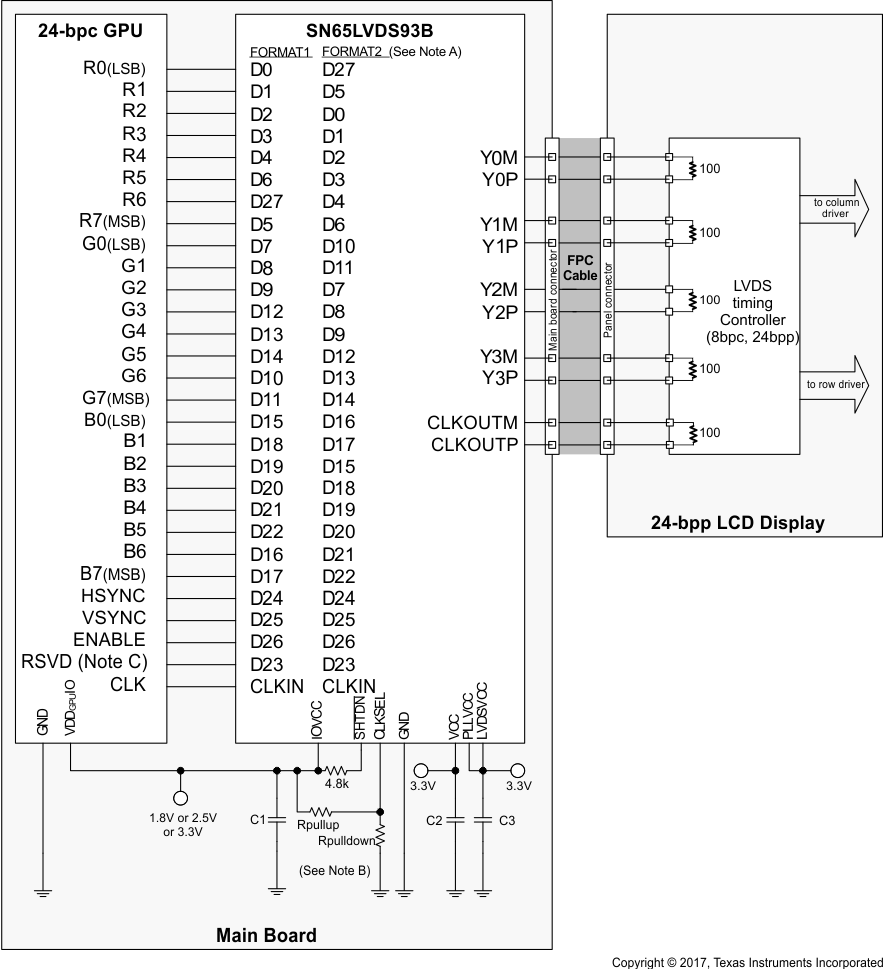

SN65LVDS93B lcd_24bit_llsem2.gif
Note A. FORMAT: The majority of 24-bit LCD display panels require the two most significant bits (2 MSB ) of each color to be transferred over the 4th serial data output Y3. A few 24-bit LCD display panels require the two LSBs of each color to be transmitted over the Y3 output. The system designer needs to verify which format is expected by checking the LCD display data sheet.
  • Format 1: use with displays expecting the 2 MSB to be transmitted over the 4th data channel Y3. This is the dominate data format for LCD panels.
  • Format 2: use with displays expecting the 2 LSB to be transmitted over the 4th data channel.
Note B. Rpullup: install only to use rising edge triggered clocking.
Rpulldown: install only to use falling edge triggered clocking.
  • C1: decoupling capacitor for the VDDIO supply; install at least 1x0.01µF.
  • C2: decoupling capacitor for the VDD supply; install at least 1x0.1µF and 1x0.01µF.
  • C3: decoupling capacitor for the VDDPLL and VDDLVDS supply; install at least 1x0.1µF and 1x0.01µF.
Note C. If RSVD is not driven to a valid logic level, then an external connection to GND is recommended.
Note D. RSVD must be driven to a valid logic level. All unused SN65LVDS93B inputs must be tied to a valid logic level.
Figure 13. 24-Bit Color Host to 24-Bit LCD Panel Application

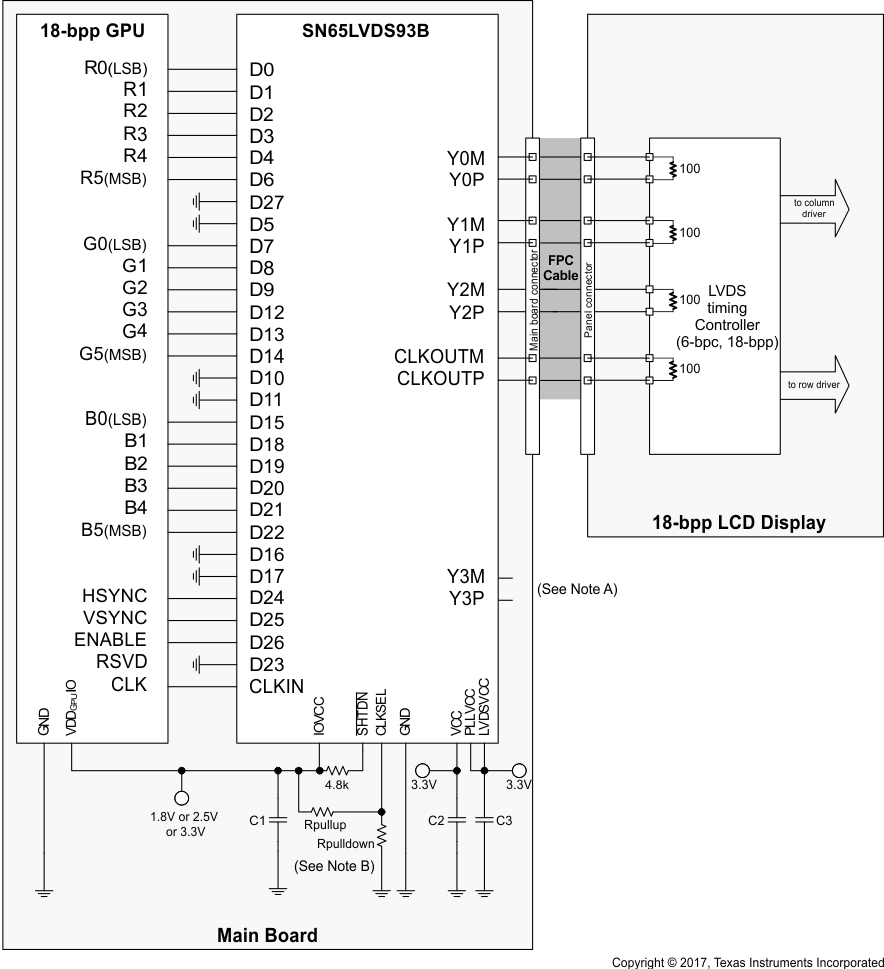

SN65LVDS93B lcd_18bit_llsem2.gif
Note A. Leave output Y3 NC.
Note B.Rpullup: install only to use rising edge triggered clocking.
Rpulldown: install only to use falling edge triggered clocking.
  • C1: decoupling capacitor for the VDDIO supply; install at least 1x0.01µF.
  • C2: decoupling capacitor for the VDD supply; install at least 1x0.1µF and 1x0.01µF.
  • C3: decoupling capacitor for the VDDPLL and VDDLVDS supply; install at least 1x0.1µF and 1x0.01µF.
Figure 14. 18-Bit Color Host to 18-Bit Color LCD Panel Display Application
SN65LVDS93B lcd_24to18bit_llsem2.gif
Note A. Leave output Y3 NC.
Note B. R0, R1, G0, G1, B0, B1: For improved image quality, the GPU should dither the 24-bit output pixel down to18-bit per pixel.
NoteC.Rpullup: install only to use rising edge triggered clocking.
Rpulldown: install only to use falling edge triggered clocking.
  • C1: decoupling capacitor for the VDDIO supply; install at least 1x0.01µF.
  • C2: decoupling capacitor for the VDD supply; install at least 1x0.1µF and 1x0.01µF.
  • C3: decoupling capacitor for the VDDPLL and VDDLVDS supply; install at least 1x0.1µF and 1x0.01µF.
Figure 15. 24-Bit Color Host to 18-Bit Color LCD Panel Display Application
