ZHCSHV2A March 2018 – May 2018 SN65LVDS93B
PRODUCTION DATA.
8 Parameter Measurement Information
Figure 3. Equivalent Input and Output Schematic Diagrams
All input timing is defined at IOVDD / 2 on an input signal with a 10% to 90% rise or fall time of less than 3 ns. CLKSEL = 0V.
Figure 4. Setup and Hold Time Definition

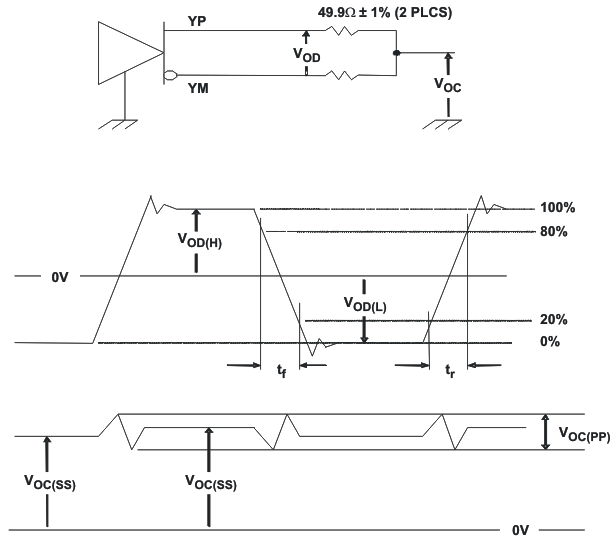

Figure 5. Test Load and Voltage Definitions for LVDS Outputs

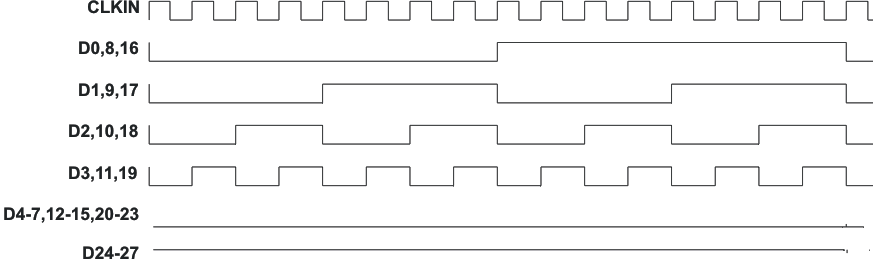

The 16 grayscale test pattern test device power consumption for a typical display pattern.
Figure 6. 16 Grayscale Test Pattern

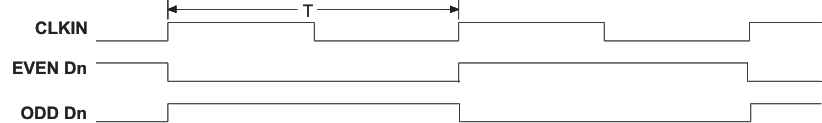

The worst-case test pattern produces nearly the maximum switching frequency for all of the LVDS outputs.
Figure 7. Worst-Case Power Test Pattern

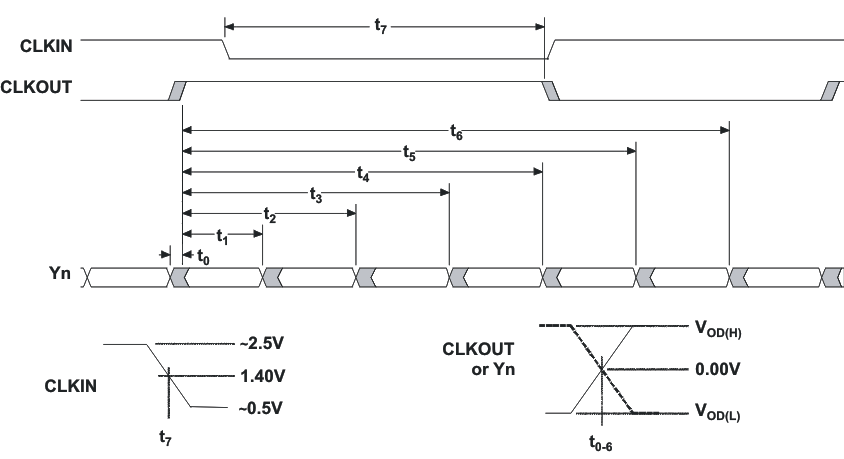

CLKOUT is shown with CLKSEL at high-level.
CLKIN polarity depends on CLKSEL input level.
Figure 8. SN65LVDS93B Timing Definitions CLKIN polarity depends on CLKSEL input level.

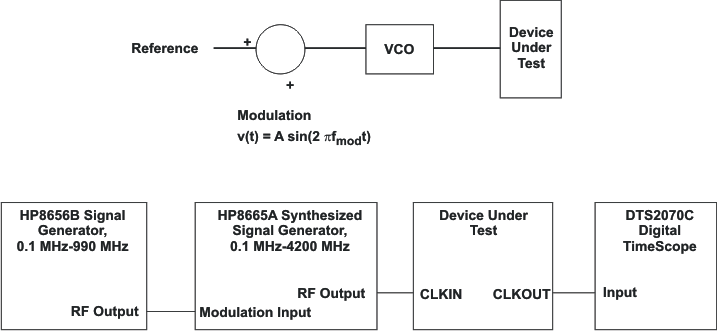

Figure 9. Output Clock Jitter Test Set Up

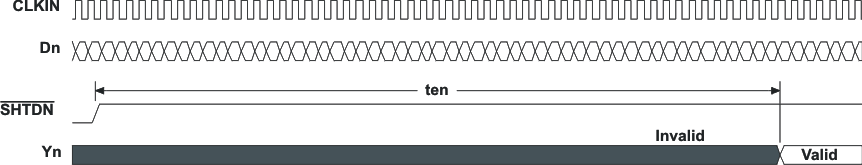

Figure 10. Enable Time Waveforms

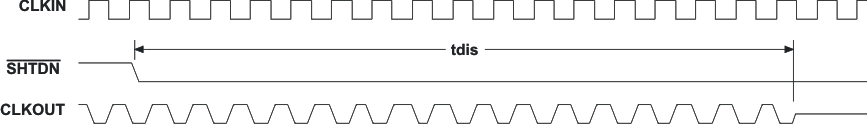

Figure 11. Disable Time Waveforms
