8 Parameter Measurement Information

SN65HVD1050A-Q1 dvr_tst_lls696.gif Figure 3. Driver Voltage, Current, and Test Definition
SN65HVD1050A-Q1 bus_log_lls696.gif Figure 4. Bus Logic State Voltage Definitions
SN65HVD1050A-Q1 vod_tst_lls696.gif Figure 5. Driver VOD Test Circuit
SN65HVD1050A-Q1 drv_tst_wf_lls696.gif Figure 6. Driver Test Circuit and Voltage Waveforms
SN65HVD1050A-Q1 rx_v_cd_lls696.gif Figure 7. Receiver Voltage and Current Definitions
SN65HVD1050A-Q1 rx_tst_cx_waves_lls888.gif
A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle, tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
B. CL includes instrumentation and fixture capacitance within ±20%.
Figure 8. Receiver Test Circuit and Voltage Waveforms

Table 1. Differential Input Voltage Threshold Test

INPUT OUTPUT
VCANH VCANL |VID| R
–11.1 V –12 V 900 mV L VOL
12 V 11.1 V 900 mV L
–6 V –12 V 6 V L
12 V 6 V 6 V L
–11.5 V –12 V 500 mV H VOH
12 V 11.5 V 500 mV H
–12 V –6 V 6 V H
6 V 12 V 6 V H
Open Open X H
SN65HVD1050A-Q1 ten_test_cx_waves_lls888.gif
A. CL = 100 pF and includes instrumentation and fixture capacitance within ±20%.
B. All VI input pulses are supplied by a generator having the following characteristics: tr or tf ≤ 6 ns, pulse repetition rate (PRR) = 125 kHz, 50% duty cycle.
Figure 9. ten Test Circuit and Waveforms
SN65HVD1050A-Q1 comon_mode_lls888.gif

NOTE:

All VI input pulses are from 0 V to VCC and supplied by a generator having the following characteristics: tr or tf ≤ 6 ns, pulse repetition rate (PRR) = 125 kHz, 50% duty cycle.
Figure 10. Common-Mode Output Voltage Test and Waveforms
SN65HVD1050A-Q1 tloop_tc_wf_lls696.gif
A. CL = 100 pF and includes instrumentation and fixture capacitance within ±20%.
B. All VI input pulses are from 0 V to VCC and supplied by a generator having the following characteristics: tr or tf ≤ 6 ns, pulse repetition rate (PRR) = 125 kHz, 50% duty cycle.
Figure 11. t(LOOP) Test Circuit and Waveforms
SN65HVD1050A-Q1 dom_to_test_cx_waves_lls888.gif
A. All VI input pulses are from 0 V to VCC and supplied by a generator having the following characteristics: tr or tf ≤ 6 ns, pulse repetition rate (PRR) = 500 Hz, 50% duty cycle.
B. CL = 100 pF includes instrumentation and fixture capacitance within ±20%.
Figure 12. Dominant Time-Out Test Circuit and Waveforms
SN65HVD1050A-Q1 drv_sc_wf_lls888.gif Figure 13. Driver Short-Circuit Current Test and Waveforms

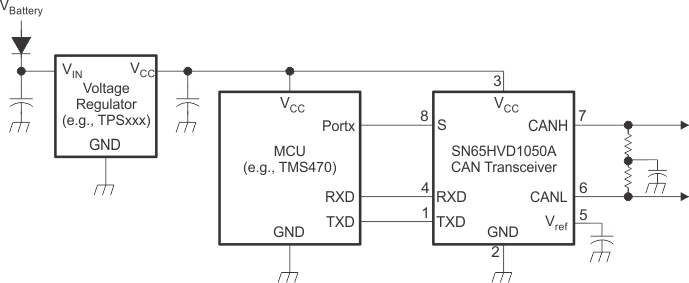

SN65HVD1050A-Q1 typ_app_cx_split_term_lls888.gif Figure 14. Typical Application
