8 Parameter Measurement Information

SN65HVD1040 dv_cur_lls631.gifFigure 11. Driver Voltage, Current, and Test Definition
SN65HVD1040 bus_svd_lls631.gifFigure 12. Bus Logic State Voltage Definitions
SN65HVD1040 drv_tcir_lls631.gifFigure 13. Driver VOD Test Circuit
SN65HVD1040 drv_tc_vw_lls631.gifFigure 14. Driver Test Circuit and Voltage Waveforms
SN65HVD1040 recv_cvw_lls631.gifFigure 15. Receiver Voltage and Current Definitions
SN65HVD1040 rectc_vw_lls631.gif
A. The input pulse is supplied by a generator having the following characteristics: PRR  ≤ 125 kHz, 50% duty cycle, tr  ≤ 6 ns, tf  ≤ 6ns, ZO = 50 Ω.
B. CL includes instrumentation and fixture capacitance within ±20%.
Figure 16. Receiver Test Circuit and Voltage Waveforms

Table 1. Differential Input Voltage Threshold Test

INPUT OUTPUT
VCANH VCANL |VID| R
–11.1 V –12 V 900 mV L VOL
12 V 11.1 V 900 mV L
–6 V –12 V 6 V L
12 V 6 V 6 V L
–11.5 V –12 V 500 mV H VOH
12 V 11.5 V 500 mV H
–12 V –6 V 6 V H
6 V 12 V 6 V H
Open Open X H
SN65HVD1040 ten_cir_vwf_lls631.gifFigure 17. Ten Test Circuit and Voltage Waveforms
SN65HVD1040 ptp_vo_twf_lls631.gif
All VI input pulses are from 0 V to VCC and supplied by a generator having the following characteristics: tr or tf ≤ 6 ns. Pulse Repetition Rate (PRR) = 125 kHz, 50% duty cycle.
Figure 18. Peak-To-Peak Common Mode Output Voltage Test and Waveform
SN65HVD1040 tloop_twf_lls631.gif
All VI input pulses are from 0 V to VCC and supplied by a generator with the following characteristics: tr or tf ≤ 6 ns. Pulse Repetition Rate (PRR) = 125 kHz, 50% duty cycle.

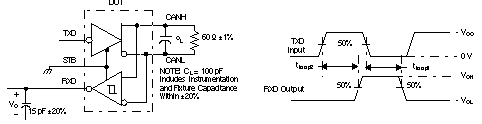

Figure 19. Tloop Test Circuit and Voltage Waveforms
SN65HVD1040 to_twf_lls631.gif
All VI input pulses are from 0 V to VCC and supplied by a generator with the following characteristics: tr or tf ≤ 6 ns. Pulse Repetition Rate (PRR) = 500 Hz, 50% duty cycle.
A. CL = 100 pF includes instrumentation and fixture capacitance within ±20%.
Figure 20. Dominant Time-Out Test Circuit and Waveform
SN65HVD1040 tbus_twf_lls631.gif
A. For VI bit width ≤ 0.7 μs, VO = VOH. For VII bit width ≥ 5 μs, VO = VOL. VI input pulses are supplied from a generator with the following characteristics; tr or tf ≤ 6 ns. Pulse Repetition Rate (PRR) = 50 Hz, 30% duty cycle.
B. CL = 15 pF includes instrumentation and fixture capacitance within ±20%.
Figure 21. TBUS Test Circuit and Waveform
SN65HVD1040 dsc_twf_lls631.gifFigure 22. Driver Short-Circuit Current Test and Waveform
SN65HVD1040 outsymt_lls631.gifFigure 23. Driver Output Symmetry Test Circuit
