ZHCSBS4F July 2013 – August 2014 SN65HVD01
PRODUCTION DATA.
7 Parameter Measurement Information
Input generator rate is 100 kbps, 50% duty cycle, rise and fall times less than 6 nsec.

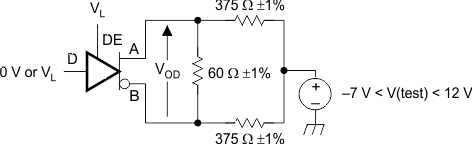

Figure 9. Measurement of Driver Differential Output Voltage with Common-Mode Load
Figure 10. Measurement of Driver Differential and Common-Mode Output with RS-485 Load
Figure 11. Measurement of Driver Differential Output Rise and Fall Times and Propagation Delays
D at VL to test non-inverting output, D at 0 V to test inverting output.
Figure 12. Measurement of Driver Enable and Disable Times with Active High Output and Pull-Down Load
D at 0V to test non-inverting output, D at VL to test inverting output.
Figure 13. Measurement of Driver Enable and Disable Times with Active Low Output and Pull-Up Load
Figure 14. Measurement of Receiver Output Rise and Fall Times and Propagation Delays
Figure 15. Measurement of Receiver Enable/Disable Times with Driver Enabled
Figure 16. Measurement of Receiver Enable Times with Driver Disabled
