Parameter Measurement Information

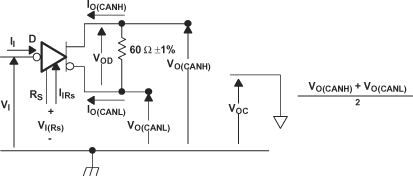

SN55HVD233-SEP pmi_dri_lls557.gifFigure 12. Driver Voltage, Current, and Test Definition
SN55HVD233-SEP pmi_bus_lls557.gifFigure 13. Bus Logic State Voltage Definitions
SN55HVD233-SEP pmi_driv_lls557.gifFigure 14. Driver VOD
SN55HVD233-SEP pmi_dtc_lls557.gif
The input pulse is supplied by a generator having the following characteristics:
  • Pulse repetition rate (PRR) ≤ 125 kHz, 50% duty cycle
  • tr ≤ 6 ns
  • tf ≤ 6 ns
  • ZO = 50 Ω
CL includes fixture and instrumentation capacitance.
Figure 15. Driver Test Circuit and Voltage Waveforms
SN55HVD233-SEP pmi_rece_lls557.gifFigure 16. Receiver Voltage and Current Definitions

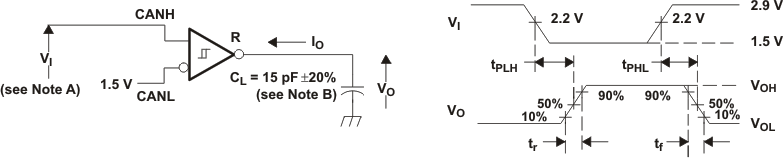

SN55HVD233-SEP pmi_rectc_lls557.gif
The input pulse is supplied by a generator having the following characteristics:
  • PRR ≤ 125 kHz, 50% duty cycle
  • tr ≤ 6 ns
  • tf ≤ 6 ns
  • ZO = 50 Ω
CL includes fixture and instrumentation capacitance.
Figure 17. Receiver Test Circuit and Voltage Waveforms

Table 1. Differential Input Voltage Threshold Test

INPUT OUTPUT MEASURED
VCANH VCANL R |VID|
–6.1 V –7 V L VOL 900 mV
12 V 11.1 V L 900 mV
–1 V –7 V L 6 V
12 V 6 V L 6 V
–6.5 V –7 V H VOH 500 mV
12 V 11.5 V H 500 mV
–7 V –1 V H 6 V
6 V 12 V H 6 V
Open Open H X
SN55HVD233-SEP pmi_testc_sllsei2.gif

NOTE:

This test is conducted to test survivability only. Data stability at the R output is not specified.
Figure 18. Test Circuit, Transient Overvoltage Test
SN55HVD233-SEP pmi_tens_sllsei2.gif

NOTE:

All VI input pulses are supplied by a generator having the following characteristics:
  • tr or tf ≤ 6 ns
  • PRR = 125 kHz, 50% duty cycle
Figure 19. Ten(s) Test Circuit and Voltage Waveforms
SN55HVD233-SEP pmi_vocpp_LLSEI2.gif

NOTE:

All VI input pulses are supplied by a generator having the following characteristics:
  • tr or tf ≤ 6 ns
  • PRR = 125 kHz, 50% duty cycle
Figure 20. VOC(pp) Test Circuit and Voltage Waveforms

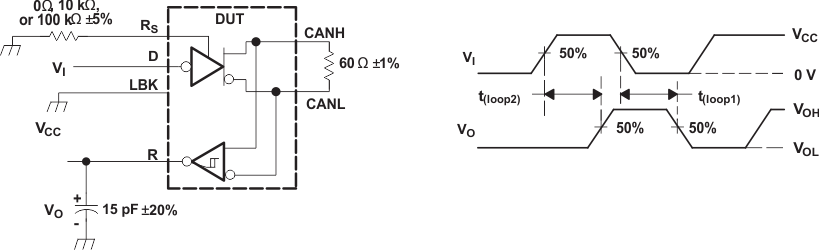

SN55HVD233-SEP pmi_tloop_sllsei2.gifFigure 21. T(loop) Test Circuit and Voltage Waveforms
SN55HVD233-SEP pmi_tlbk_LLSEI2.gifFigure 22. T(LBK) Test Circuit and Voltage Waveforms
SN55HVD233-SEP pmi_los_lls557.gifFigure 23. IOS Test Circuit and Waveforms
SN55HVD233-SEP pmi_comm_lls557.gif

NOTE:

All input pulses are supplied by a generator with ƒ ≤ 1.5 MHz.
Figure 24. Common-Mode Voltage Rejection
