SCAS298N January   1993  – June 2014 SN54LVC541A , SN74LVC541A

PRODUCTION DATA.

  1. 1 Features
  2. 2 Applications
  3. 3 Description
  4. 4 Simplified Schematic
  5. 5 Revision History
  6. 6 Pin Configuration and Functions
  7. 7 Specifications
    1. 7.1  Absolute Maximum Ratings
    2. 7.2  Handling Ratings
    3. 7.3  Recommended Operating Conditions
    4. 7.4  Thermal Information
    5. 7.5  Electrical Characteristics—DC Limit Changes
    6. 7.6  Switching Characteristics—AC Limit Changes
    7. 7.7  Switching Characteristics, SN74LVC541A -40°C to 85°C
    8. 7.8  Switching Characteristics, SN74LVC541A -40°C to 125°C
    9. 7.9  Operating Characteristics
    10. 7.10 Typical Characteristics
  8. 8 Parameter Measurement Information
  9. 9 Detailed Description
    1. 9.1 Overview
    2. 9.2 Functional Block Diagram
    3. 9.3 Feature Description
    4. 9.4 Device Functional Modes
  10. 10Application and Implementation
    1. 10.1 Application Information
    2. 10.2 Typical Application
      1. 10.2.1 Design Requirements
      2. 10.2.2 Detailed Design Procedure
      3. 10.2.3 Application Curves
  11. 11Power Supply Recommendations
  12. 12Layout
    1. 12.1 Layout Guidelines
    2. 12.2 Layout Example
  13. 13Device and Documentation Support
    1. 13.1 Related Links
    2. 13.2 Trademarks
    3. 13.3 Electrostatic Discharge Caution
    4. 13.4 Glossary
  14. 14Mechanical, Packaging, and Orderable Information

封装选项

请参考 PDF 数据表获取器件具体的封装图。

机械数据 (封装 | 引脚)
  • W|20
  • J|20
  • FK|20
散热焊盘机械数据 (封装 | 引脚)
订购信息

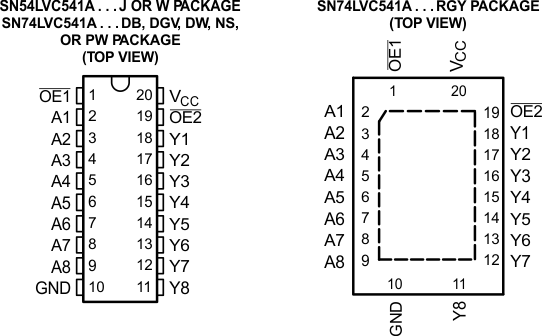

6 Pin Configuration and Functions


Pin Functions

PIN I/O DESCRIPTION
NO. NAME
1 OE1 I Output enable
2 A1 I A1 input
3 A2 I A2 input
4 A3 I A3 input
5 A4 I A4 input
6 A5 I A5 input
7 A6 I A6 input
8 A7 I A7 input
9 A8 I A8 input
10 GND — Ground pin
11 Y8 O Y8 output
12 Y7 O Y7 output
13 Y6 O Y6 output
14 Y5 O Y5 output
15 Y4 O Y4 output
16 Y3 O Y3 output
17 Y2 O Y2 output
18 Y1 O Y1 output
19 OE2 I Output enable
20 VCC — Power pin
