Parameter Measurement Information

  • Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tt < 6 ns.
  • The outputs are measured one at a time, with one input transition per measurement.
CL= 50 pF and includes probe and jig capacitance.
Figure 7-1 Load Circuit

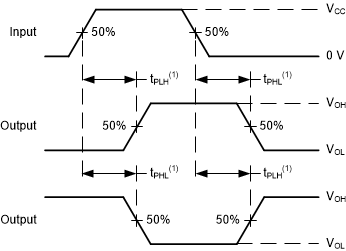

The maximum between tPLH and tPHL is used for tpd.
Figure 7-3 Voltage Waveforms Propagation Delays

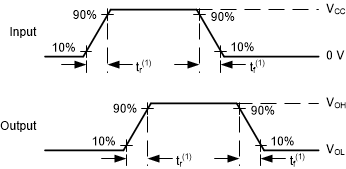

tt is the greater of tr and tf.
Figure 7-2 Voltage Waveforms Transition Times
