7 Parameter Measurement Information
7.1 Series SN5414 and SN7414 Devices
Figure 14. Load Circuit For2-State Totem-Pole Outputs
Figure 16. Load Circuit For 3-State Outputs
Figure 18. Voltage WaveformsSetup and Hold Times
Figure 15. Load Circuit ForOpen-Collector Outputs

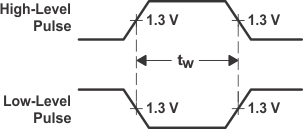

Figure 17. Voltage Waveforms Pulse Durations

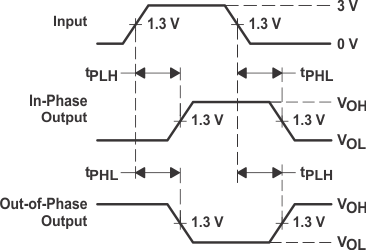

Figure 19. Voltage WaveformsPropagation Delay Times
A. CL includes probe and jig capacitance.
B. All diodes are 1N3064 or equivalent.
C. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control. Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
D. S1 and S2 are closed for tPLH, tPHL, tPHZ, and tPLZ; S1 is open and S2 is closed for tPZH; S1 is closed and S2 is open for tPZL.
E. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO ≈ 50 Ω ; tr and tf ≤ 7 ns for Series SN5414 and SN7414 devices and tr and tf ≤ 2.5 ns for Series SN54S14 and SN74S14 devices.
F. The outputs are measured one at a time with one input transition per measurement.

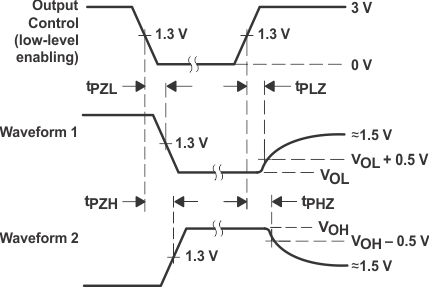

Figure 20. Voltage Waveforms Enable and Disable Times, 3-State Outputs
7.2 Series SN54LS14 and SN74LS14 Devices
Figure 21. Load Circuit For2-State Totem-Pole Outputs
Figure 23. Load Circuit For 3-State Outputs
Figure 25. Voltage WaveformsSetup and Hold Times
Figure 22. Load Circuit ForOpen-Collector Outputs
Figure 24. Voltage Waveforms Pulse Durations
Figure 26. Voltage WaveformsPropagation Delay Times
A. CL includes probe and jig capacitance.
B. All diodes are 1N3064 or equivalent.
C. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control. Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
D. S1 and S2 are closed for tPLH, tPHL, tPHZ, and tPLZ; S1 is open and S2 is closed for tPZH; S1 is closed and S2 is open for tPZL.
E. Phase relationships between inputs and outputs have been chosen arbitrarily for these examples.
F. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO ≈ 50 Ω, tr ≤ 1.5 ns, tf ≤ 2.6 ns.
G. The outputs are measured one at a time with one input transition per measurement.
Figure 27. Voltage Waveforms Enable and Disable Times, 3-State Outputs
