ZHCSEP8 November 2015 RF37S114
PRODUCTION DATA.
4 Detailed Description
4.1 Supported Command Set
Table 4-1 summarizes the ISO/IEC 15693 mandatory and optional commands that are supported by this transponder.
Table 4-1 Supported Command Set (ISO/IEC 15693 Mandatory and Optional Commands)
| REQUEST | REQUEST MODE (1) | |||||
|---|---|---|---|---|---|---|
| REQUEST CODE | INVENTORY | ADDRESSED | NONADDRESSED | AFI | OPTIONAL FLAG | |
| Inventory | 0x01 | ✓ | ✗ | ✗ | ✓ | 0/– |
| Stay Quiet | 0x02 | ✗ | ✓ | ✗ | ✗ | 0/– |
| Read_Single_Block | 0x20 | ✗ | ✓ | ✓ | ✗ | –/1 |
| Write_Single_Block | 0x21 | ✗ | ✓ | ✓ | ✗ | –/1 |
| Lock_Block | 0x22 | ✗ | ✓ | ✓ | ✗ | –/1 |
(1) ✓ = Implemented, ✗ = Not applicable
4.2 Memory Organization

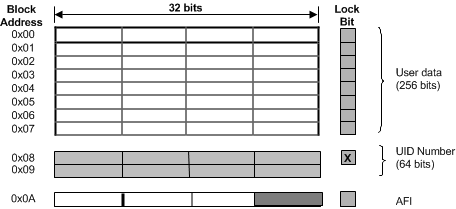

Figure 4-1 shows the organization of the user-accessible memory on this transponder.
Figure 4-1 Memory Organization
