7.6 Typical Characteristics

At TA = 25°C, IL = 0 mA, VIN = 5-V power supply, CL = 0 µF, and 2.5-V output, unless otherwise noted.

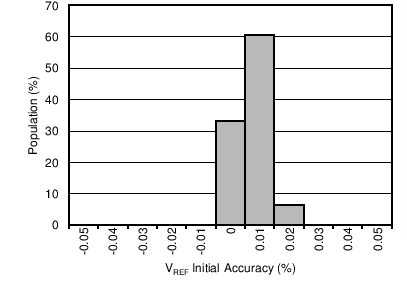

Figure 7-1 Initial Accuracy Distribution (VREF)
Figure 7-3 Initial Accuracy Distribution (VBIAS)
Figure 7-5 VREF – 2 × VBIAS Distribution
–40°C ≤ TA ≤ 125°C
Figure 7-7 Distribution of VREF – 2 × VBIAS Drift Tracking Over Temperature
Refer to the Section 8.1 section for more information.

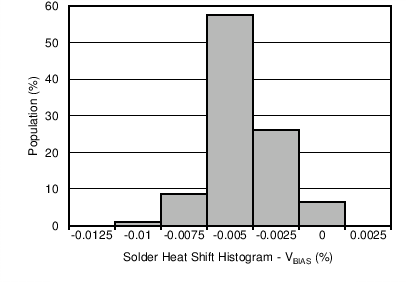

Figure 7-9 Solder Heat Shift Distribution (VBIAS)
Figure 7-11 VREF – 2 × VBIAS Tracking vs Temperature
VBIAS output
Figure 7-13 Output Voltage Change vs Load Current (VBIAS)
VBIAS output IL = 20 mA

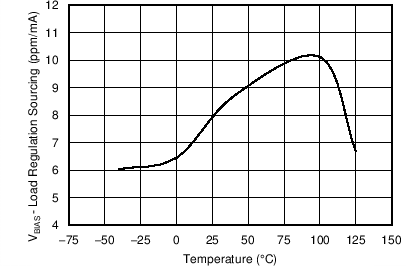

Figure 7-15 Load Regulation Sourcing vs Temperature (VBIAS)
VBIAS output IL = –20 mA

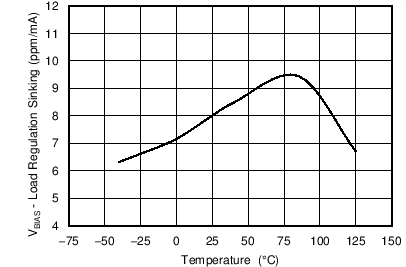

Figure 7-17 Load Regulation Sinking vs Temperature (VBIAS)
VBIAS output

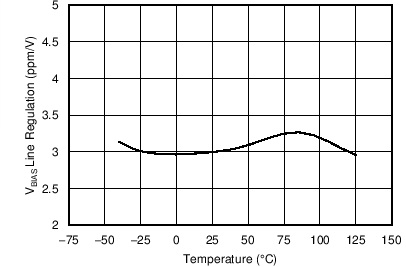

Figure 7-19 Line Regulation vs Temperature (VBIAS)
CL = 10 µF

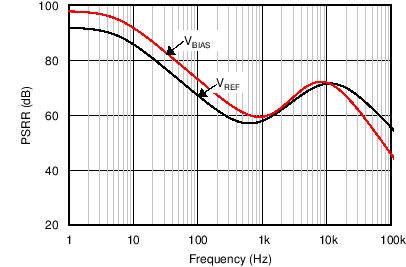

Figure 7-21 Power-Supply Rejection Ratio vs Frequency
CL = 10 µF
Figure 7-23 Line Transient Response
CL = 10 µF IL = ±1-mA step
Figure 7-25 Load Transient Response
CL = 10 µF IL = ±20-mA step
Figure 7-27 Load Transient Response
CL = 1 µF
Figure 7-29 Turn-On Settling Time
Figure 7-31 Quiescent Current vs Temperature
VREF output
Figure 7-33 0.1-Hz to 10-Hz Noise (VREF)
Figure 7-35 Output Voltage Noise Spectrum
VBIAS output
Figure 7-37 Output Impedance vs Frequency (VBIAS)
Figure 7-39 Thermal Hysteresis Distribution (VBIAS)
–40°C ≤ TA ≤ 125°C
Figure 7-2 Drift Distribution (VREF)
–40°C ≤ TA ≤ 125°C
Figure 7-4 Drift Distribution (VBIAS)
–40°C ≤ TA ≤ 85°C
Figure 7-6 Distribution of VREF – 2 × VBIAS Drift Tracking Over Temperature
Refer to the Section 8.1 section for more information.
Figure 7-8 Solder Heat Shift Distribution (VREF)
Figure 7-10 Output Voltage Accuracy (VREF) vs Temperature
VREF output

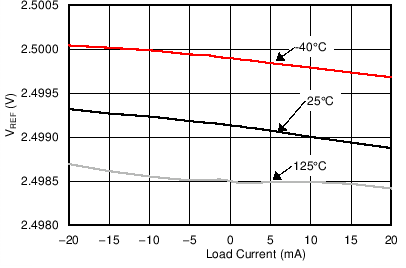

Figure 7-12 Output Voltage Change vs Load Current (VREF)
VREF output IL = 20 mA

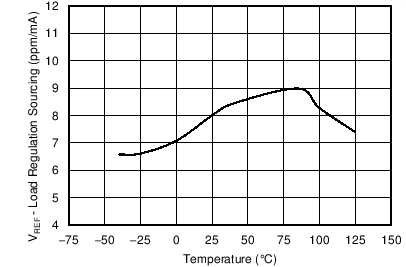

Figure 7-14 Load Regulation Sourcing vs Temperature (VREF)
VREF output IL = –20 mA
Figure 7-16 Load Regulation Sinking vs Temperature (VREF)
VREF output

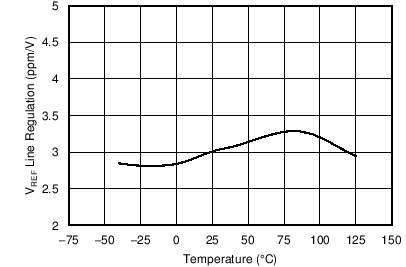

Figure 7-18 Line Regulation vs Temperature (VREF)
CL = 0 µF

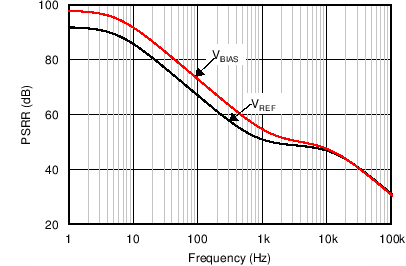

Figure 7-20 Power-Supply Rejection Ratio vs Frequency
CL = 1 µF
Figure 7-22 Line Transient Response
CL = 1 µF IL = ±1-mA step
Figure 7-24 Load Transient Response
CL = 1 µF IL = ±20-mA step

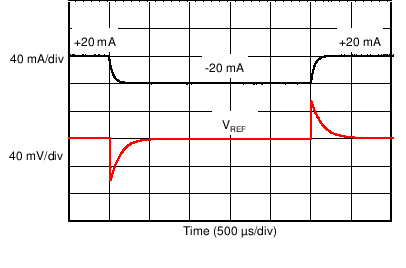

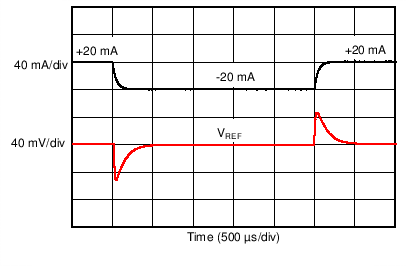

Figure 7-26 Load Transient Response

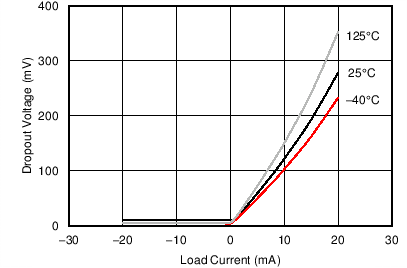

Figure 7-28 Minimum Dropout Voltage vs Load Current
CL = 10 µF
Figure 7-30 Turn-On Settling Time

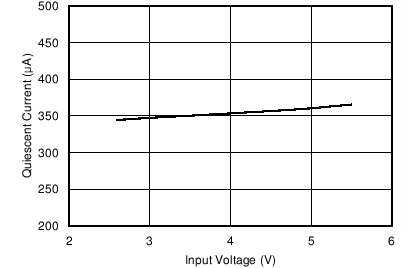

Figure 7-32 Quiescent Current vs Input Voltage
VBIAS output
Figure 7-34 0.1-Hz to 10-Hz Noise (VBIAS)
VREF output
Figure 7-36 Output Impedance vs Frequency (VREF)
Figure 7-38 Thermal Hysteresis Distribution (VREF)
Figure 7-40 Long-Term Stability (First 1000 hours)
