Typical Characteristics

at TA = 25°C, VS = 15 V (unless otherwise noted)
REF200 sbvs020_typchar_1.gif

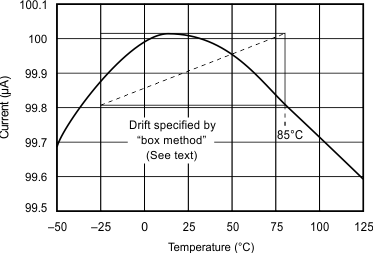

Figure 1. Current Source Typical Drift vs Temperature
REF200 sbvs020_typchar_3.gif
Figure 3. Current Source Output Current vs Voltage
REF200 sbvs020_typchar_5.png

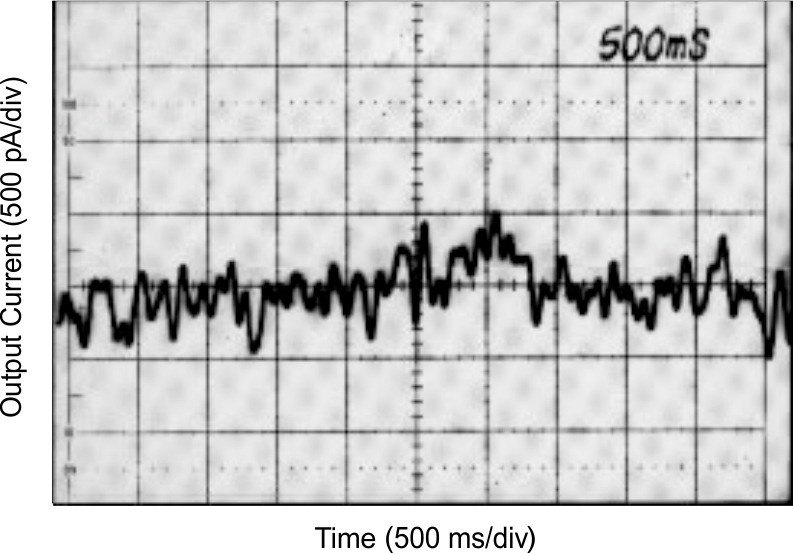

Figure 5. Current Source Current Noise (0.1 Hz to 10 Hz)
REF200 sbvs020_typchar_7.gif

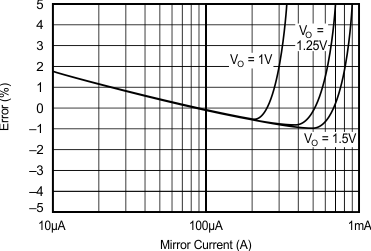

Figure 7. Mirror Gain Error vs Current
REF200 sbvs020_typchar_9.gif

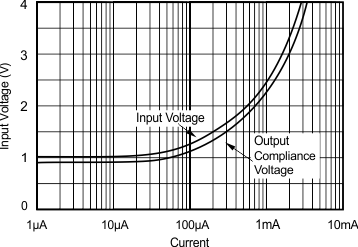

Figure 9. Mirror Input Voltage and Output Compliance Voltage vs Current
REF200 sbvs020_typchar_2.gif
Figure 2. Current Source Temperature Drift Distribution
REF200 sbvs020_typchar_4.gif
Figure 4. Current Source Output Current vs Voltage
REF200 sbvs020_typchar_6.gif

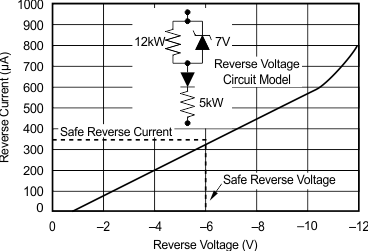

Figure 6. Current Source Reverse Current vs Reverse Voltage
REF200 sbvs020_typchar_8.gif
Figure 8. Mirror Transfer Nonlinearity
