Each system design and PCB layout is unique. The layout should be carefully reviewed in the context of a specific PCB design. However, the following guidelines can optimize PCM3070 performance:

  • Connect the thermal pad to ground.
  • The decoupling capacitors for the power supplies should be placed close to the device terminals. Figure 19 shows the recommended decoupling capacitors for the PCM3070.
  • The PCM3070 internal voltage references must be filtered using external capacitors. Place the filter capacitors on REF near the device terminals for optimal performance.
  • For analog differential audio signals, the signals should be routed differentially on the PCB for better noise immunity. Avoid crossing of digital and analog signals to avoid undesirable crosstalk.

Layout Example

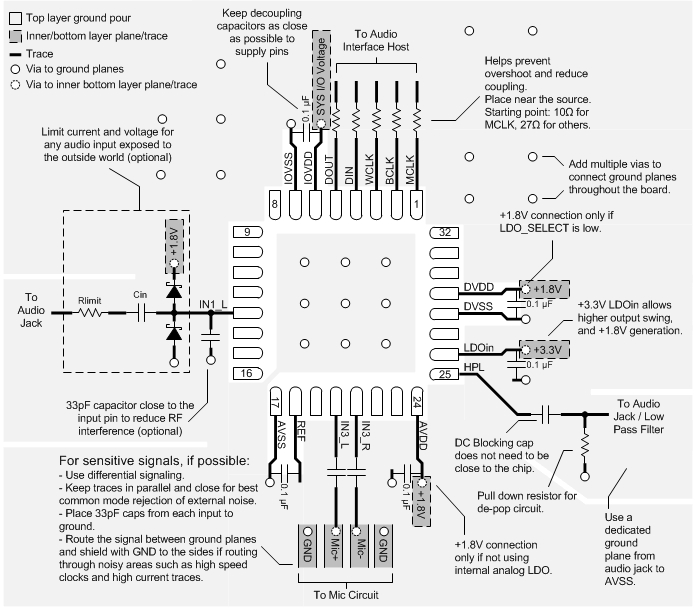

PCM3070 PCM3070_Layout.gif Figure 24. Layout

Example layout views can be found in the EVM User Guide:
