4 Pin Configuration and Functions

OPA130 OPA2130 OPA4130 OPA130 D Package, 8-Pin SOIC (Top View) Figure 4-1 OPA130 D Package, 8-Pin SOIC (Top View)
Table 4-1 Pin Functions: OPA130
PIN TYPE DESCRIPTION
NAME NO.
+IN 3 Input Noninverting input, channel A
–IN 2 Input Inverting input, channel A
NC 1, 5 — Do not connect these pins(1)
NC 8 — No internal connection. Float this pin.
OUT 6 Output Output
V+ 7 Power Positive (highest) power supply
V– 4 Power Negative (lowest) power supply
(1) Existing layouts for the OPA130 D package before revision B of this data sheet do not need to be redesigned.
OPA130 OPA2130 OPA4130 OPA2130 D Package, 8-Pin SOIC (Top View) Figure 4-2 OPA2130 D Package, 8-Pin SOIC (Top View)
Table 4-2 Pin Functions: OPA2130
PIN TYPE DESCRIPTION
NAME NO.
+IN A 3 Input Noninverting input, channel A
+IN B 5 Input Noninverting input, channel B
–IN A 2 Input Inverting input, channel A
–IN B 6 Input Inverting input, channel B
OUT A 1 Output Output, channel A
OUT B 7 Output Output, channel B
V+ 8 Power Positive (highest) power supply
V– 4 Power Negative (lowest) power supply

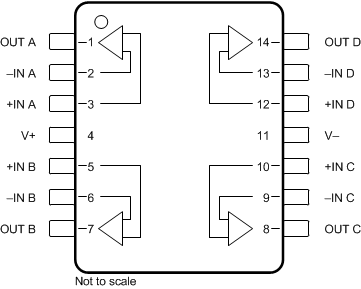

OPA130 OPA2130 OPA4130 OPA4130 D Package, 14-Pin SOIC (Top View) Figure 4-3 OPA4130 D Package, 14-Pin SOIC (Top View)
Table 4-3 Pin Functions: OPA4130
PIN TYPE DESCRIPTION
NAME NO.
+IN A 3 Input Noninverting input, channel A
+IN B 5 Input Noninverting input, channel B
+IN C 10 Input Noninverting input, channel C
+IN D 12 Input Noninverting input, channel D
–IN A 2 Input Inverting input, channel A
–IN B 6 Input Inverting input, channel B
–IN C 9 Input Inverting input, channel C
–IN D 13 Input Inverting input, channel D
OUT A 1 Output Output, channel A
OUT B 7 Output Output, channel B
OUT C 8 Output Output, channel C
OUT D 14 Output Output, channel D
V+ 4 Power Positive (highest) power supply
V– 11 Power Negative (lowest) power supply
