Typical Characteristics – Low-Power Mode Supply Currents

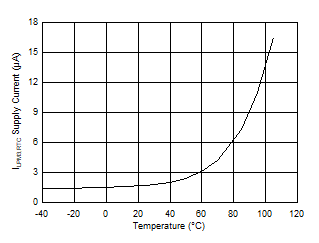

VCC = 3 VRTC enabledSVS disabled
Figure 8-1 LPM3 Supply Current vs Temperature

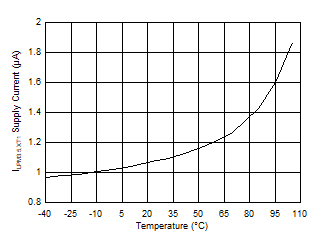

VCC = 3 VXT1 enabledSVS enabled
Figure 8-3 LPM3.5 Supply Current vs Temperature
VCC = 2 VRTC enabledSVS disabled
Figure 8-2 LPM3 Supply Current vs Temperature

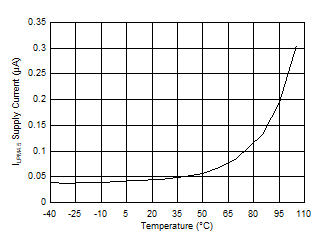

VCC = 3 VSVS disabled
Figure 8-4 LPM4.5 Supply Current vs Temperature
