5.17 POR, BOR

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)(1)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
td(BOR) Brownout(2)(3) 2000 µs
VCC(start) dVCC/dt ≤ 3 V/s (see Figure 5-10) 0.7 × V(B_IT– ) V
V(B_IT–) dVCC/dt ≤ 3 V/s (see Figure 5-10 through Figure 5-12) 1.79 V
Vhys(B_IT–) dVCC/dt ≤ 3 V/s (see Figure 5-10) 70 130 210 mV
t(reset) Pulse duration needed at RST/NMI pin to accepted reset internally, VCC = 2.2 V, 3 V 2 µs
(1) The current consumption of the brownout module is already included in the ICC current consumption data.
(2) The voltage level V(B_IT–) + Vhys(B_IT–) ≤ 1.89 V.
(3) During power up, the CPU begins code execution following a period of td(BOR) after VCC = V(B_IT–) + Vhys(B_IT–). The default FLL+ settings must not be changed until VCC ≥ VCC(min), where VCC(min) is the minimum supply voltage for the desired operating frequency. See the MSP430x4xx Family User’s Guide (SLAU056) for more information on the brownout and SVS circuit.
MSP430FG4619 MSP430FG4618 MSP430FG4617 MSP430FG4616 MSP430CG4619 MSP430CG4618 MSP430CG4617 MSP430CG4616 slas508_porreset_supvol.gifFigure 5-10 POR, BOR vs Supply Voltage

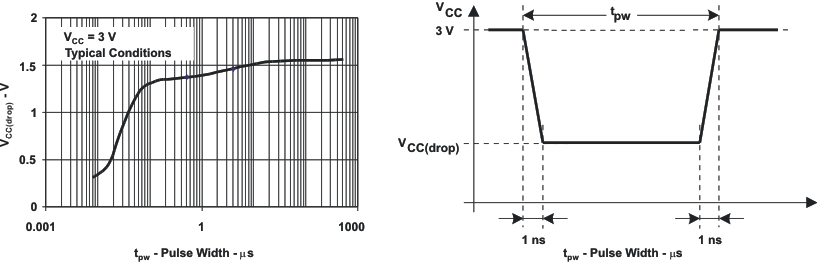

MSP430FG4619 MSP430FG4618 MSP430FG4617 MSP430FG4616 MSP430CG4619 MSP430CG4618 MSP430CG4617 MSP430CG4616 slas508_vcc_drop_level.gifFigure 5-11 VCC(drop) Level with a Square Voltage Drop to Generate a POR or BOR Signal
MSP430FG4619 MSP430FG4618 MSP430FG4617 MSP430FG4616 MSP430CG4619 MSP430CG4618 MSP430CG4617 MSP430CG4616 slas508_vcc_dop_level2.gifFigure 5-12 VCC(drop) Level With a Triangle Voltage Drop to Generate a POR or BOR Signal
