6.12.10 Port P9 (P9.0) Input/Output With Schmitt Trigger (MSP430F67xxIPZ Only)

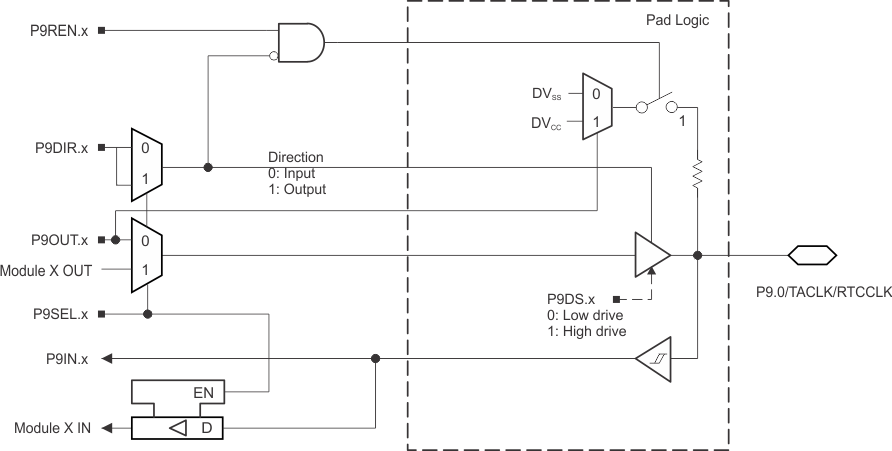

Figure 6-11 shows the port diagram. Table 6-72 summarizes the selection of the pin functions.

MSP430F6736 MSP430F6735 MSP430F6734 MSP430F6733 MSP430F6731 MSP430F6730 MSP430F6726 MSP430F6725 MSP430F6724 MSP430F6723 MSP430F6721 MSP430F6720 p9_0_pz_slas731.gifFigure 6-11 Port P9 (P9.0) Diagram (MSP430F67xxIPZ Only)

Table 6-72 Port P9 (P9.0) Pin Functions (MSP430F67xxIPZ Only)

PIN NAME (P9.x) x FUNCTION CONTROL BITS OR SIGNALS
P9DIR.x P9SEL.x
P9.0/TACLK/RTCCLK 0 P9.0 (I/O) I: 0; O: 1 0
TACLK 0 1
RTCCLK 1 1
