8.14 Typical Characteristics – Outputs, Reduced Drive Strength (PxDS.y = 0)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

GUID-826B68B5-7003-4297-80A4-E5F64F999E23-low.gifFigure 8-2 Typical Low-Level Output Current vs Low-Level Output Voltage

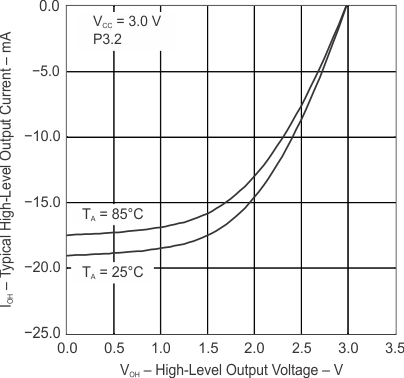

GUID-2134DB49-4A16-436B-A3C0-F12CA9D5E398-low.gifFigure 8-4 Typical High-Level Output Current vs High-Level Output Voltage
GUID-9D34AF63-76CE-4545-8C14-1B6AB2A2F97D-low.gifFigure 8-3 Typical Low-Level Output Current vs Low-Level Output Voltage
GUID-E51F45D2-BBD8-49E2-A6A0-D761761AC176-low.gifFigure 8-5 Typical High-Level Output Current vs High-Level Output Voltage
