7.3.1 Overview

A block diagram of a single core is shown in Figure 6.

Interleaving switching action of the converters is illustrated in Figure 7. The LP8758-E0 regulator switches each core 90° apart, reducing input ripple current.

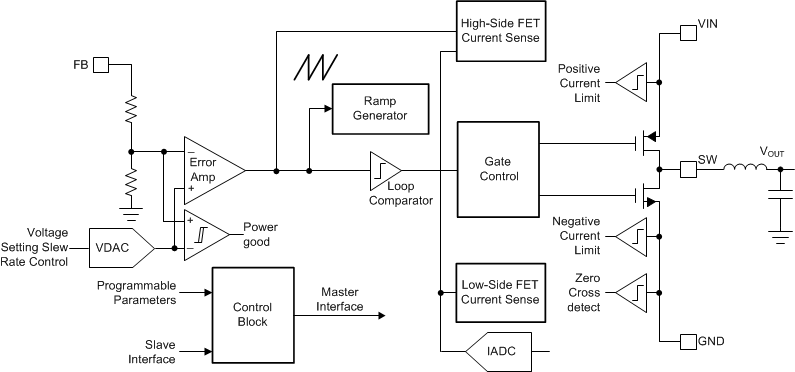

LP8758-E0 Detailed_Block.gifFigure 6. Detailed Block Diagram Showing One Core
LP8758-E0 ai_phases360_SNVSAC6.gifFigure 7. PWM Timings and Inductor Current Waveforms (1)
1. Graph is not in scale and is for illustrative purposes only.
