10 Layout

10.1 Layout Guidelines

Place capacitors as close as possible to the LP5523 device to minimize the current loops. Example of LP5523 PCB layout and component placement is seen in Figure 31.

10.2 Layout Example

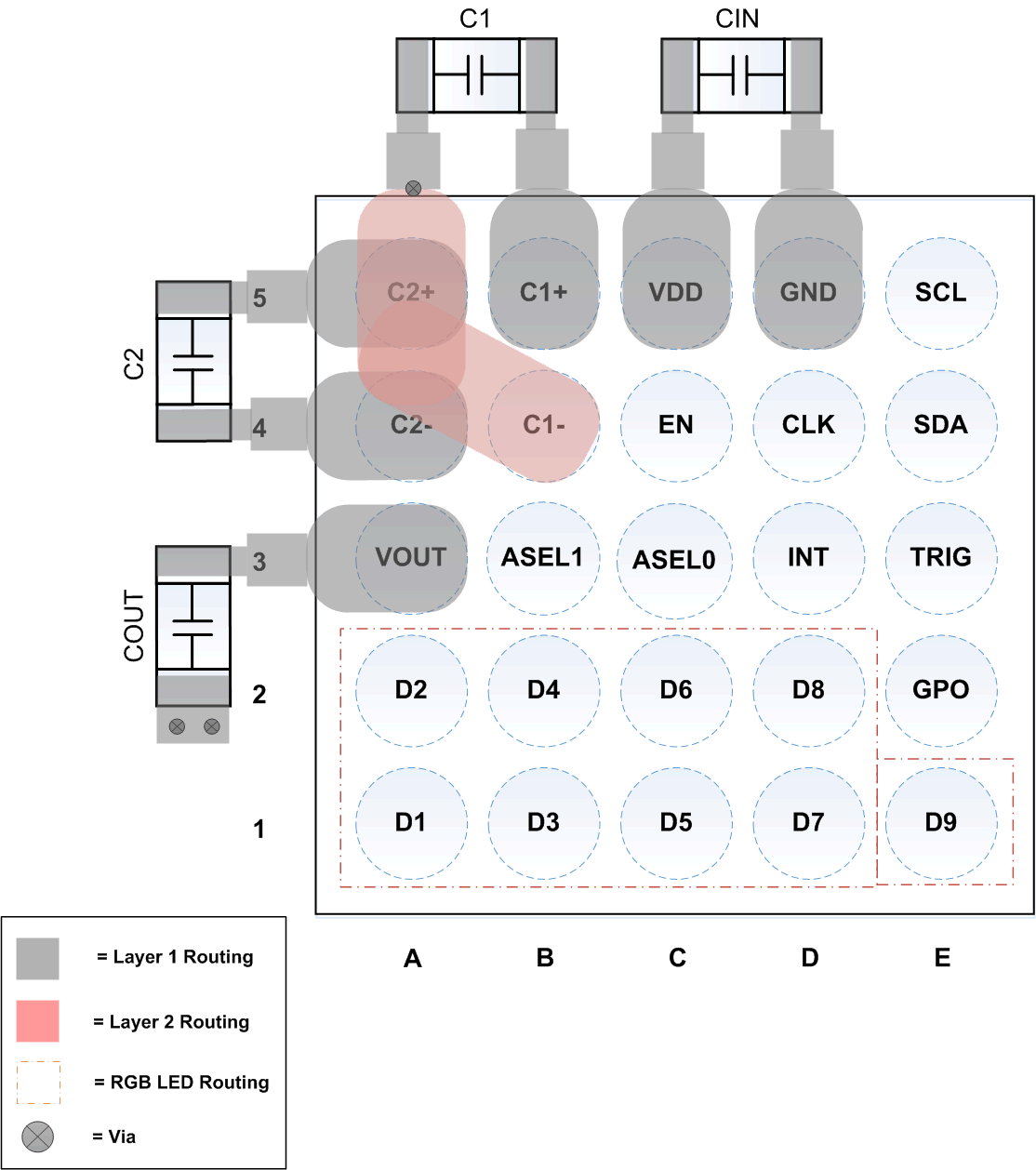

LP5523 layout_snvs550.gif Figure 31. LP5523 Layout Example
