7.7 Typical Characteristics
Typical characteristics show the typical performance of the LP3470A device. Test conditions are at TA = TJ = 25°C (unless otherwise noted).
Figure 1. Supply Current vs Supply Voltage

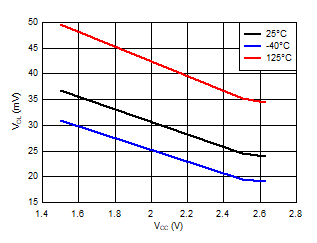

Figure 3. Low Level Output Voltage vs Supply Voltage

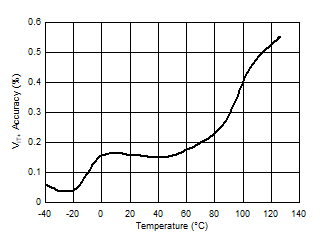

Figure 5. Positive-going Input Threshold VIT+ Accuracy vs Temperature

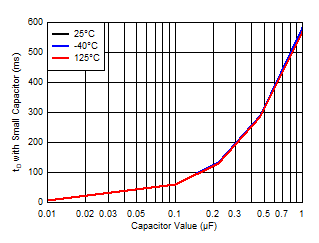

Figure 7. Reset Time Delay vs Small Capacitor Values

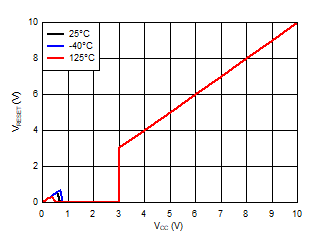

Figure 2. Output Voltage vs Supply Voltage for LP3470A293

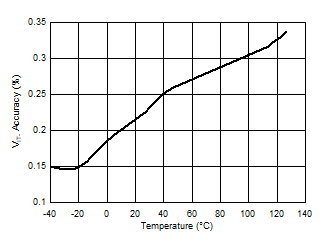

Figure 4. Negative-going Input Threshold VIT- Accuracy vs Temperature

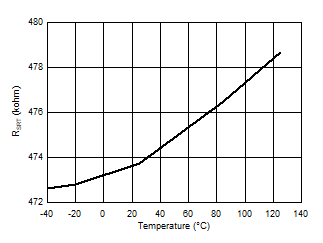

Figure 6. SRT Pin Internal Resistance Overtemperature

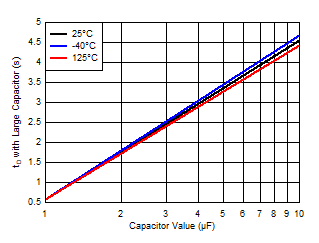

Figure 8. Reset Time Delay vs Large Capacitor Values
