3 说明

LMZ10501 微型模块采用易用型直流/直流降压设计，可在空间受限的应用中驱动高达 1A 的负载。该器件仅需使用一个输入电容、一个输出电容、一个小型 VCON 滤波电容和两个电阻即可实现基本运行。该微型模块采用 8 引脚 µSIP 封装，配备电感器。还提供基于内部电流限制的软启动功能、电流过载保护和热关断功能。

封装信息
器件型号封装(1)封装尺寸(2)
LMZ10501SIL（µSIP，8）3.00mm × 2.60mm
(1) 如需了解所有可用封装，请参阅数据表末尾的可订购产品附录。
(2) 封装尺寸（长 × 宽）为标称值，并包括引脚（如适用）。
GUID-A889B18D-CC4F-4113-9978-3EE6D572B72C-low.pngVIN = 3.6V 时的典型效率

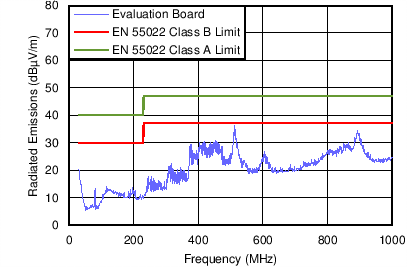

GUID-8551EDDD-D3CC-41E0-895A-FD2A45C498FA-low.png辐射电磁干扰 (EMI) (CISPR22) VIN = 5V、VOUT = 1.8V、IOUT = 1A
