6.7 Typical Characteristics

LMX2594 D002_SNAS696.gif
fOSC = 100 MHz Jitter = 55.8 fs (100 Hz - 100 MHz)
fPD = 200 MHz
Figure 3. Closed-Loop Phase Noise at 15 GHz
LMX2594 D004_SNAS696.gif
fOSC = 100 MHz Jitter = 46.8 fs (100 Hz - 100 MHz)
fPD = 200 MHz
Figure 5. Closed-Loop Phase Noise at 11 GHz
LMX2594 D001_SNAS696.gif
fOSC = 100 MHz Jitter = 46.87 fs (100 Hz - 100 MHz)
fPD = 200 MHz
Figure 7. Closed-Loop Phase Noise at 8 GHz
LMX2594 D012_SNAS696.gif
fOSC = 100 MHz fOUT = 14 GHz / 4 = 3.5 GHz
fPD = 200 MHz Jitter = 49.4 fs (100 Hz - 100 MHz)
fVCO = 14 GHz
Figure 9. Closed-Loop Phase Noise at 3.5 GHz
LMX2594 D013_SNAS696.gif
The glitches in the plot are due to the inability of the measurement equipment to track the VCO while calibrating.
Figure 11. VCO Ramping 7.5-GHz to 15-GHz Triangle Wave With VCO Calibration
LMX2594 D009_SNAS696.gif
CalTime = 25.2 µs = 1.3 µs (Core) + 9.1 µs (Fcal) +14.8 µs (Ampcal)
fOSC = 200 MHz, fPD = 100 MHz, fVCO = 7.5 GHz - 14 GHz, CHDIV = 2
Figure 13. VCO Calibration With Partial Assist

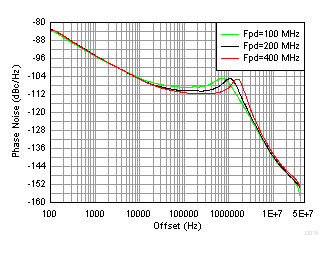

LMX2594 tc_fpdimpact.gif
fOSC = 200 MHz fVCO = 14.8 GHz
Figure 15. PLL Phase Noise Variation vs. fPD

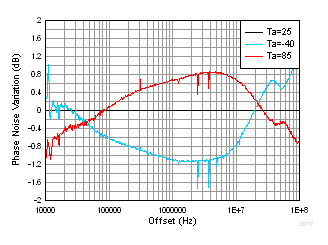

LMX2594 tc_PhaseNoiseVsTempDelta.gif
fVCO = 8 GHz, Narrow Loop Bandwidth (<100 Hz)
Figure 17. CHANGE in 8-GHz VCO Phase Noise Over Temperature

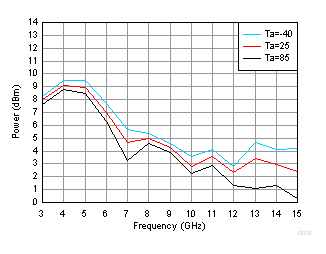

LMX2594 tc_powervstemp.gif
Single-ended output with resistor pullup and OUTx_PWR = 50. Note that Near 13.3 to 14.3 GHz, output power can be impacted at hot temperature. See the Application Information section for more information.
Figure 19. Output Power vs Temperature
LMX2594 tc_dividernoise.gif
This noise adds to the scaled VCO Noise when the channel divider is used.
Figure 21. Additive VCO Divider Noise Floor
LMX2594 D003_SNAS696.gif
fOSC = 100 MHz Jitter = 52.6 fs (100 Hz - 100 MHz)
fPD = 200 MHz
Figure 4. Closed-Loop Phase Noise at 13 GHz
LMX2594 D005_SNAS696.gif
fOSC = 100 MHz Jitter = 46.9 fs (100 Hz - 100 MHz)
fPD = 200 MHz
Figure 6. Closed-Loop Phase Noise at 9 GHz
LMX2594 D011_SNAS696.gif
fOSC = 100 MHz Jitter = 44.1 fs (100 Hz - 100 MHz)
fPD = 200 MHz
Figure 8. Closed-Loop Phase Noise at 7.5 GHz
LMX2594 D010_SNAS696.gif
Figure 10. VCO Ramping 12-GHz to 12.125-GHz Calibration Free
LMX2594 D008_SNAS696.gif
CalTime = 33.6 µs = 5.8 µs (Core) + 14 µs (Fcal) + 13.8 µs (Ampcal)
fOSC = 200 MHz, fPD = 100 MHz, fVCO = 7.5 - 14 GHz, CHDIV = 2
Figure 12. VCO Unassisted Calibration

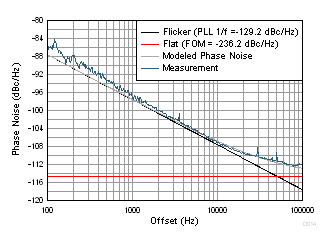

LMX2594 tc_pllnoisemetrics.gif
fVCO = 12 GHz fPD = 100 MHz
Figure 14. Calculation of PLL Noise Metrics

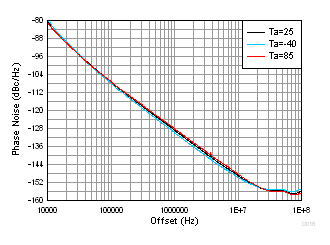

LMX2594 tc_PhaseNoiseVsTemp.gif
fVCO = 8 GHz, Narrow Loop Bandwidth (<100 Hz)
Figure 16. VCO Phase Noise Over Temperature
LMX2594 tc_powervspullup.gif
Single-Ended Output OUTx_PWR = 50
Figure 18. Output Power Across Frequency
LMX2594 D030_SNAS696.gif
Resistor pullup Normalized to maximum output power.
Figure 20. Output Power Normalized To Maximum Across OUTA_PWR With Resistor Pullup
