10 Power Supply Recommendations

10.1 Supply Recommendations

Low noise regulators are generally recommended for the supply pins. It is OK to have one regulator supply the part, although it is best to put individual bypassing as shown in the Layout Guidelines for the best spur performance. The most noise sensitive components are the pullup components for the output buffers since supply noise here will directly go to the output. For purposes of bypassing, below is how the current consumption is approximately distributed through each pin. For this table, default mode is with internal VCO mode with one output buffer powered up with OUTx_PWR=15. External VCO mode assumes the VCO divider and output buffers are off.

Table 16. Current Consumption by Pin

PIN NUMBER PIN NAME CONDITION
DEFAULT MODE DEFAULT MODE
with VCO DIVIDER ENABLED
EXTERNAL VCO MODE
with OUTPUT BUFFER DISABLED
Pin 6 VccCP 12 12 12
Pin 10 VccPLL 28 28 48
Pin 16 VccBUF 23 43 1
Pin 17 VccVCO 83 83 14
Pin 28 VccDIG 10 10 10
Pin 32 VccFRAC <<1 <<1 <<1
n/a Output pullup component 22 22 0
TOTAL 178 198 85

10.2 Regulator Output Pins

The recommendation for the VregVCO and VbiasCOMP pins is a minimum of one 10 µF capacitor, but more capacitance is better. These pins have a bias voltage of about 2.5 V, which means that capacitors of smaller case size and voltage ratings can actually have far less capacitance the labeled value of the capacitor. If there is insufficient capacitance on these pins, then the VCO phase noise may be degraded. This degradation may vary with frequency and how insufficient the capacitance is, but for example, bench tests show a degradation of about 5 dB at 20 KHz offset for a 3 GHz carrier if these capacitors are reduced to 4.7 µF.

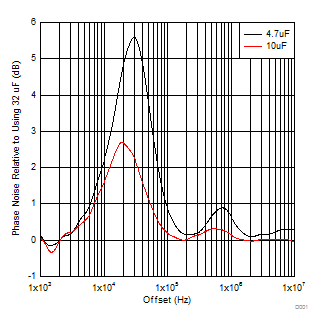

LMX2581E ta_VregCap.gifFigure 26. Impact of VregVCO and VbiasCOMP Capacitor on VCO Phase Noise
