Using a proprietary digital-phase, locked-loop technique, the LMX243x devices generate very stable, low-noise control signals for RF and IF voltage controlled oscillators. Both the RF and IF synthesizers include a two-level programmable charge pump. Both the RF and IF PLLs have dedicated fastlock circuitry with integrated time-out counters which require only a single word write to power up or change frequencies.
|PART NUMBER||PACKAGE||BODY SIZE (NOM)|
|LMX243x||ULGA (20)||3.50 mm × 3.50 mm|
|TSSOP (20)||6.50 mm × 4.40 mm|

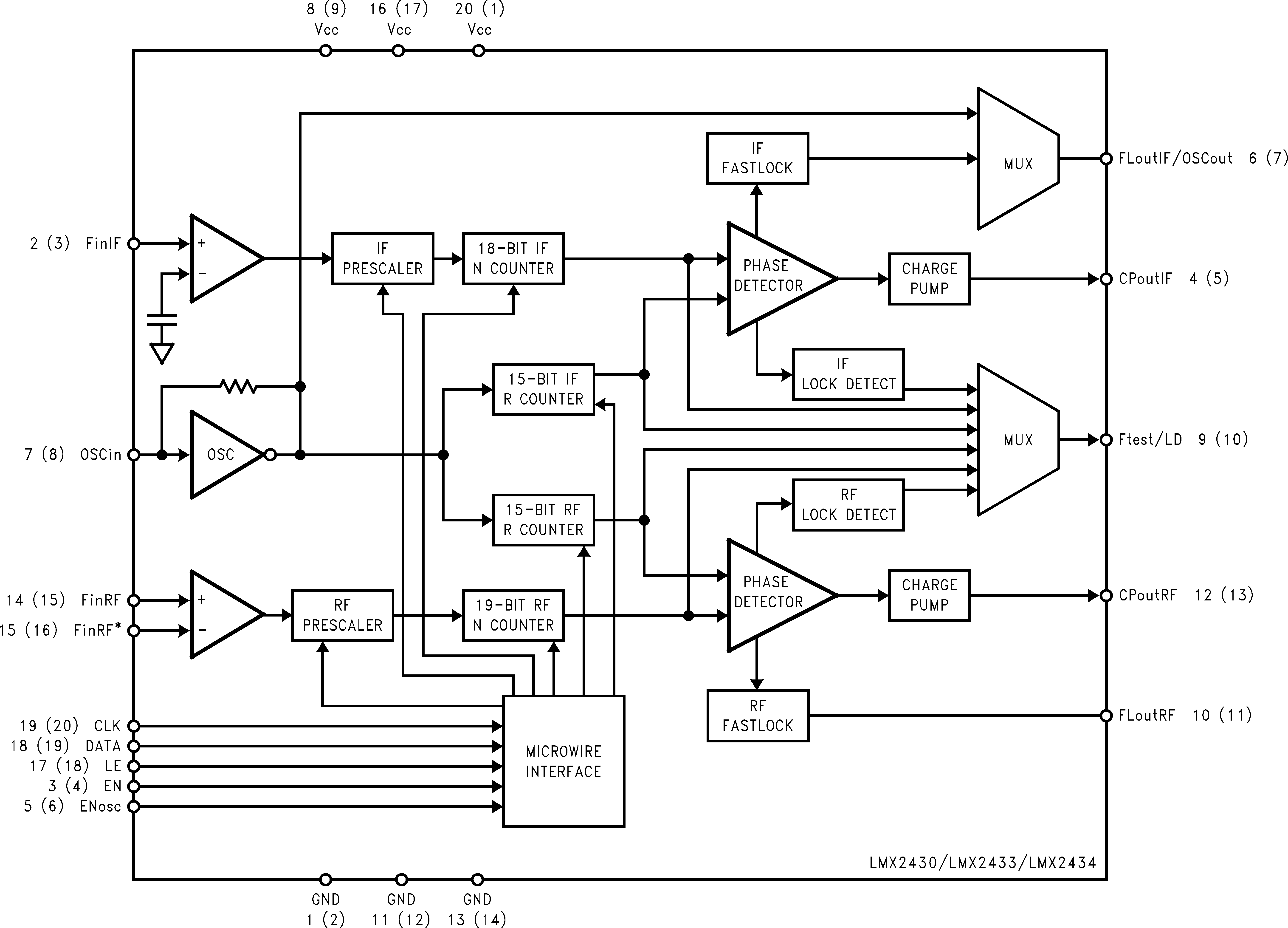

NOTE:1 (2) refers to Pin 1 of the 20-Pin ULGA and Pin 2 of the 20-Pin TSSOP
