5 Pin Configuration and Functions

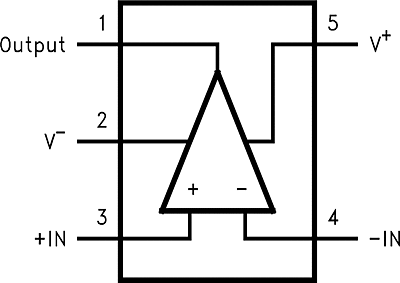

LMV710 DBV Package
5-Pin SOT-23
Top View
LMV710-N LMV711-N LMV715-N 10132514.gif

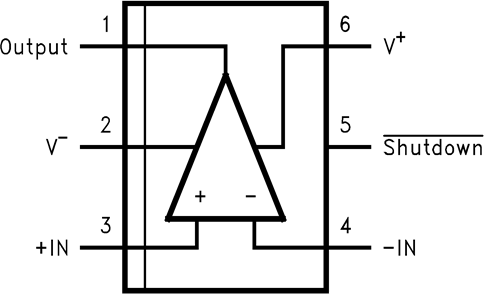

LMV711, LMV715 DBV Package
6-Pin SOT-23
Top View
LMV710-N LMV711-N LMV715-N 10132515.png

Pin Functions

PIN TYPE(1) DESCRIPTION
NAME DBV (5) DBV (6)
+IN 3 3 I Noninverting input
–IN 4 4 I Inverting input
Output 1 1 O Output
Shutdown — 5 I Active low enable input
V+ 5 6 P Positive supply input
V– 2 2 P Supply negative input
(1) I = Input, O = Output, P = Power
