6 Pin Configuration and Functions

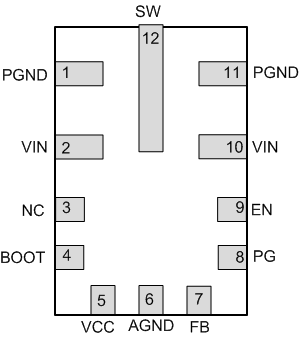

GUID-7C8B3270-8AFB-44C6-B0D3-97E9C44E57D6-low.gifFigure 6-1 12-Pin VQFN-HR RNX Package (Top View)
Table 6-1 Pin Functions
NO. NAME TYPE DESCRIPTION
1, 11 PGND G Power ground terminal. Connect to system ground and AGND. Connect to CIN with short wide traces.
2, 10 VIN P Input supply to regulator. Connect to CIN with short wide traces.
3 NC — Connect the SW pin to NC on the PCB. This simplifies the connection from the CBOOT capacitor to the SW pin. This pin has no internal connection to the regulator.
4 BOOT P Bootstrap supply voltage for internal high-side driver. Connect a high-quality 100-nF capacitor from this pin to the SW pin. Connect the SW pin to NC on the PCB. This simplifies the connection from the CBOOT capacitor to the SW pin.
5 VCC P Internal 5-V LDO output. Used as supply to internal control circuits. Do not connect to external loads. Can be used as logic supply for power-good flag. Connect a high-quality 1-µF capacitor from this pin to GND.
6 AGND G Analog ground for regulator and system. Ground reference for internal references and logic. All electrical parameters are measured with respect to this pin. Connect to system ground on PCB.
7 FB A Feedback input to regulator. Connect to tap point of feedback voltage divider. Do not float. Do not ground.
8 PG A Open-drain power-good flag output. Connect to suitable voltage supply through a current limiting resistor. High = power OK, low = power bad. Goes low when EN = Low. Can be open or grounded when not used.
9 EN A Enable input to regulator. High = ON, low = OFF. Can be connected directly to VIN; Do not float.
12 SW P Regulator switch node. Connect to power inductor. Connect the SW pin to NC on the PCB. This simplifies the connection from the CBOOT capacitor to the SW pin.
A = Analog, P = Power, G = Ground
