6.8 Typical Characteristics

Unless otherwise specified the following conditions apply: VIN = 12 V, fSW = 2100 kHz, L = 2.2 µH, COUT = 47 µF, TA = 25 °C.

fSW = 2100 kHz VOUT = 5 V

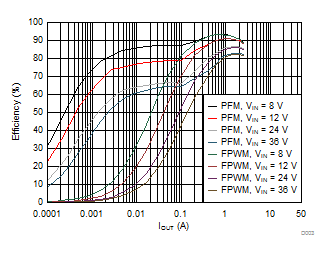

Figure 6-1 Efficiency vs Load Current
fSW = 1000 kHz (Sync) VOUT = 5 V
Figure 6-3 Efficiency vs Load Current
PFM Option VOUT = 5 V
Figure 6-5 Load Regulation
VOUT = 5 V
Figure 6-7 Dropout Curve
VIN = 12 V VFB = 1.1 V

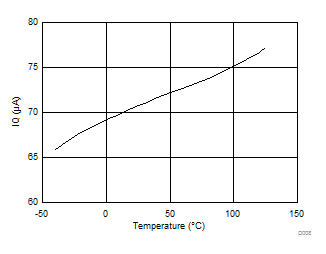

Figure 6-9 IQ vs Junction Temperature

Figure 6-11 VIN UVLO Hysteresis vs Junction Temperature
fSW = 2100 kHz VOUT = 3.3 V
Figure 6-2 Efficiency vs Load Current
fSW = 1000 kHz (Sync) VOUT = 3.3 V
Figure 6-4 Efficiency vs Load Current
FPWM Option VOUT = 5 V
Figure 6-6 Load Regulation
VOUT = 3.3 V
Figure 6-8 Dropout Curve

Figure 6-10 VIN UVLO Rising Threshold vs Junction Temperature
VIN = 12 V
Figure 6-12 HS and LS Current Limit vs Junction Temperature
