9.3.3 Clock Input Interfacing and Termination

Figure 29 through Figure 35 show the recommended input interfacing and termination circuits. Unused clock inputs can be left floating or pulled down.

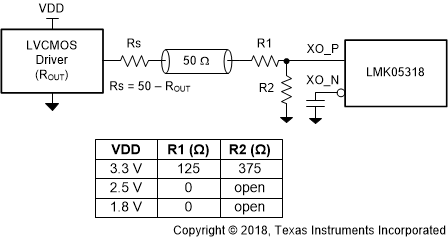

LMK05318 5318_lvcmos_to_XO.gifFigure 29. Single-Ended LVCMOS to XO Input (XO_P)
LMK05318 5318_LVCMOS_to_ref.gifFigure 30. Single-Ended LVCMOS (1.8, 2.5, 3.3 V) to Reference (PRIREF_P/SECREF_P)

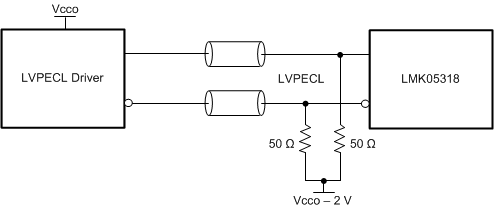

LMK05318 5318_lvpecl_to_ref.gifFigure 31. DC-Coupled LVPECL to Reference (PRIREF_P/SECREF_P) or XO Inputs

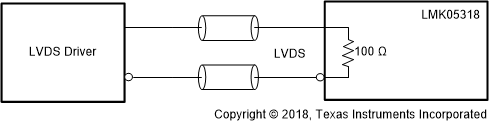

LMK05318 5318_LVDS_to_ref.gifFigure 32. DC-Coupled LVDS to Reference (PRIREF/SECREF) or XO Inputs
LMK05318 5318_cml_to_ref.gifFigure 33. DC-Coupled CML (Source Terminated) to Reference (PRIREF/SECREF) or XO Inputs

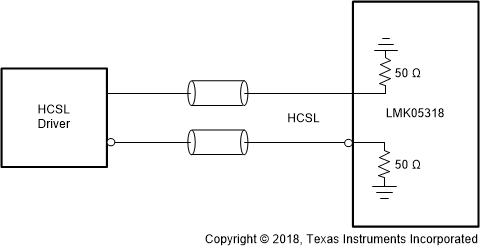

LMK05318 5318_hcsl_to_ref.gifFigure 34. HCSL (Load Terminated) to Reference (PRIREF/SECREF) or XO Inputs
LMK05318 5318_diff_to_ref.gifFigure 35. AC-Coupled Differential to Reference (PRIREF/SECREF) or XO Inputs
