Typical Characteristics

at TA = 25°C, VDD = 3.3 V, differential input impedance (ZIN) = 100 Ω, single-ended output impedance (ZLOAD) = 50 Ω, and POUT(TOTAL) = 8 dBm into ZLOAD = 50 Ω (unless otherwise noted)
LMH9126 D001gaintempJUN.gif
POUT = 2 dBm
Figure 1. Gain vs Frequency and Temperature
LMH9126 D003S11Temp_JUN.gif
Figure 3. Input Return Loss vs Frequency

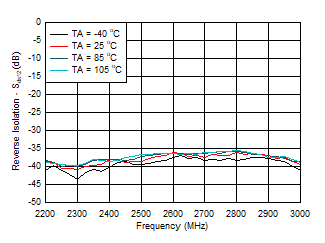

LMH9126 D005S12Temp_JUN.gif
Figure 5. Reverse Isolation vs Frequency
LMH9126 D007OIP3VDD_JUN.gif
POUT/TONE = 2 dBm, 10-MHz tone spacing
Figure 7. Output IP3 vs Frequency and Supply Voltage
LMH9126 D009OIP3_df_JUN.gif
POUT/TONE = 2 dBm
Figure 9. Output IP3 vs Frequency and Tone Spacing
LMH9126 D011P1dB_VDD_JUN.gif
Figure 11. Output P1dB vs Frequency and Supply Voltage
LMH9126 D013CMRR_temp_JUN.gif
Figure 13. CMRR vs Frequency
LMH9126 D015Ph_imb_temp_JUN.gif
Figure 15. Phase Imbalance vs Frequency and Temperature
LMH9126 D002gainVDD_JUN.gif
POUT = 2 dBm
Figure 2. Gain vs Frequency and Supply Voltage
LMH9126 D004S22Temp_JUN.gif
Figure 4. Output Return Loss vs Frequency
LMH9126 D006OIP3Temp_JUN.gif
POUT/TONE = 2 dBm, 10-MHz tone spacing
Figure 6. Output IP3 vs Frequency and Temperature
LMH9126 D008OIP3PoutTemp_JUN.gif
f = 2.6 GHz, 10-MHz tone spacing
Figure 8. Output IP3 vs Output Power per Tone

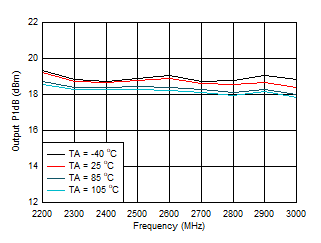

LMH9126 D010P1dB_temp_JUN.gif
Figure 10. Output P1dB vs Frequency and Temperature

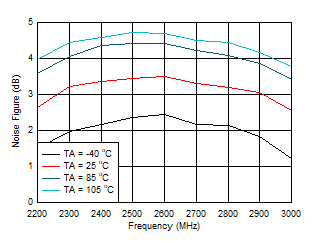

LMH9126 D012NF_temp_JUN.gif
ZSOURCE = 100-Ω differential
Figure 12. Noise Figure vs Frequency and Temperature
LMH9126 D014_G_imb_temp_JUN.gif
Figure 14. Gain Imbalance vs Frequency and Temperature
