9.2.2.3 Application Curves

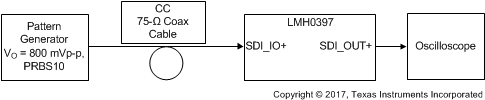

In EQ Mode, the LMH0397 SDI_OUT performance was measured with the test setup shown in Figure 31.

LMH0397 app_test_setup_diagram_EQMode_SDIOUT.gifFigure 31. Test Setup for LMH0397 Loop-Through in EQ Mode

The eye diagrams in this subsection show the LMH0397 75-Ω loop-through output at SDI_OUT+.

LMH0397 CD_SDIOUT_2.97G_PRBS10_200mV_56ps.png
EQ Mode, measured at SDI_OUT+
HOST_EQ0 = F, SDI_OUT_SEL = L, OUT_CTRL = F
Figure 32. 2.97 Gbps, CC = 200-m Belden 1694A, Reclocked
LMH0397 CD_SDIOUT_270M_PRBS10_200mV_617ps.png
EQ Mode, measured at SDI_OUT+
HOST_EQ0 = F, SDI_OUT_SEL = L, OUT_CTRL = F
Figure 34. 270 Mbps, CC = 600-m Belden 1694A, Reclocked
LMH0397 CD_SDIOUT_1.485G_PRBS10_200mV_112ps.png
EQ Mode, measured at SDI_OUT+
HOST_EQ0 = F, SDI_OUT_SEL = L, OUT_CTRL = F
Figure 33. 1.485 Gbps, CC = 280-m Belden 1694A, Reclocked
