6.7 Typical Characteristics

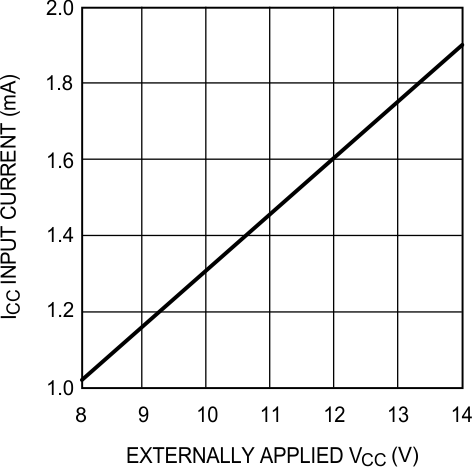

Figure 1. ICC Current vs Applied VCC Voltage
Figure 3. Maximum Frequency vs VOUT and VIN
Figure 5. Efficiency vs Load Current vs VIN
(Circuit of Figure 10)
Figure 2. On-Time vs Input Voltage and RON
Figure 4. Current Limit Off-Time vs VFB and RCL
Figure 6. Output Voltage vs Load Current
(Circuit of Figure 10)
