Specifications

Absolute Maximum Ratings(1)

over the recommended operating junction temperature (TJ) range of –40°C to +125°C (unless otherwise noted)
PARAMETER MIN MAX UNIT
Input voltages VIN to PGND –0.3 42(2) V
EN to PGND –0.3 VIN + 0.3
FB, RT, SS/TRK to AGND –0.3 3.6
PGOOD to AGND –0.3 15
SYNC to AGND –0.3 5.5
BIAS to AGND –0.3 30 or VIN(3)
AGND to PGND –0.3 0.3
Output voltages SW to PGND –0.3 VIN + 0.3 V
SW to PGND less than 10-ns transients –3.5 42
CBOOT to SW –0.3 5.5
VCC to AGND –0.3 3.6
Operating junction temperature TJ –40 125 °C
Storage temperature, Tstg –65 150 °C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
At maximum duty cycle of 0.01%
Whichever is lower

ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±1000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±500
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

Recommended Operating Conditions(1)

over the recommended operating junction temperature (TJ) range of –40°C to +125°C (unless otherwise noted)
PARAMETER MIN MAX UNIT
Input voltages VIN to PGND 3.5 36 V
EN –0.3 VIN
FB –0.3 1.1
PGOOD –0.3 12
BIAS input not used –0.3 0.3
BIAS input used 3.3 28 or VIN(2)
AGND to PGND –0.1 0.1
Output voltage VOUT 1 28 V
Output current IOUT 0 2 A
Temperature Operating junction temperature range, TJ –40 125 °C
Operating Ratings indicate conditions for which the device is intended to be functional, but do not ensure specific performance limits. For ensured specifications, see Electrical Characteristics.
Whichever is lower

Thermal Information

THERMAL METRIC (1)(2) LM43602 UNIT
HTSSOP VSON
(16 PINS) (16 PINS)
RθJA Junction-to-ambient thermal resistance 38.9(3) 31.3 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 24.3 22.8 °C/W
RθJB Junction-to-board thermal resistance 19.9 9.6 °C/W
ψJT Junction-to-top characterization parameter 0.7 0.2 °C/W
ψJB Junction-to-board characterization parameter 19.7 9.6 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance 1.7 1.3 °C/W
The package thermal impedance is calculated in accordance with JESD 51-7.
Thermal Resistances were simulated on a 4 layer, JEDEC board.
See Figure 64 for θJA vs Copper Area Curve.

Electrical Characteristics

Limits apply over the recommended operating junction temperature (TJ) range of –40°C to +125°C, unless otherwise stated. Minimum and Maximum limits are specified through test, design or statistical correlation. Typical values represent the most likely parametric norm at TJ = 25°C, and are provided for reference purposes only. Unless otherwise stated, the following conditions apply: VIN = 12 V, VOUT = 3.3 V, FS = 500 kHz.
PARAMETER CONDITIONS MIN TYP MAX UNIT
SUPPLY VOLTAGE (VIN PIN)
VIN-MIN-ST Minimum input voltage for start-up 3.8 V
ISHDN Shutdown quiescent current VEN = 0 V 1.2 3.1 µA
IQ-NONSW Operating quiescent current (non-switching) from VIN VEN = 3.3 V
VFB = 1.5 V
VBIAS = 3.4 V external
5 10 µA
IBIAS-NONSW Operating quiescent current (non-switching) from external VBIAS VEN = 3.3 V
VFB = 1.5 V
VBIAS = 3.4 V external
85 130 µA
IQ-SW Operating quiescent current (switching) VEN = 3.3 V
IOUT = 0 A
RT = open
VBIAS = VOUT = 3.3 V
RFBT = 1.0 Meg
27 µA
ENABLE (EN PIN)
VEN-VCC-H Voltage level to enable the internal LDO output VCC VENABLE high level 1.2 V
VEN-VCC-L Voltage level to disable the internal LDO output VCC VENABLE low level 0.525 V
VEN-VOUT-H Precision enable level for switching and regulator output: VOUT VENABLE high level 2 2.2 2.42 V
VEN-VOUT-HYS Hysteresis voltage between VOUT precision enable and disable thresholds VENABLE hysteresis –290 mV
ILKG-EN Enable input leakage current VEN = 3.3 V 0.85 1.75 µA
INTERNAL LDO (VCC and BIAS PINS)
VCC Internal LDO output voltage VCC VIN ≥ 3.8 V 3.28 V
VCC-UVLO Undervoltage lock out (UVLO) thresholds for VCC VCC rising threshold 3.1 V
Hysteresis voltage between rising and falling thresholds –520 mV
VBIAS-ON Internal LDO input change over threshold to BIAS VBIAS rising threshold 2.94 3.15 V
Hysteresis voltage between rising and falling thresholds –75 mV
VOLTAGE REFERENCE (FB PIN)
VFB Feedback voltage TJ = 25ºC 1.004 1.011 1.018 V
TJ = –40ºC to 85ºC 0.994 1.011 1.026
TJ = –40ºC to 125ºC 0.994 1.011 1.030
ILKG-FB Input leakage current at FB pin FB = 1 V 0.2 65 nA
THERMAL SHUTDOWN
TSD (1) Thermal shutdown Shutdown threshold 160 °C
Recovery threshold 150 °C
CURRENT LIMIT AND HICCUP
IHS-LIMIT Peak inductor current limit 3.65 4.5 5.15 A
ILS-LIMIT Inductor current valley limit 1.75 2 2.25 A
SOFT START (SS/TRK PIN)
ISSC Soft-start charge current 1.25 2 2.75 µA
RSSD Soft-start discharge resistance UVLO, TSD, OCP, or EN = 0 V 18
POWER GOOD (PGOOD PIN)
VPGOOD-HIGH Power-good flag overvoltage tripping threshold % of FB voltage 110% 113%
VPGOOD-LOW Power-good flag undervoltage tripping threshold % of FB voltage 77% 88%
VPGOOD-HYS Power-good flag recovery hysteresis % of FB voltage 6%
RPGOOD PGOOD pin pulldown resistance when power bad VEN = 3.3 V 69 150 Ω
VEN = 0 V 150 350
MOSFETS (2)
RDS-ON-HS High-side MOSFET ON-resistance IOUT = 1 A
VBIAS = VOUT = 3.3 V
120
RDS-ON-LS Low-side MOSFET ON-resistance IOUT = 1 A
VBIAS = VOUT = 3.3 V
65
Specified by design
Measured at the pins

Timing Requirements

MIN NOM MAX UNIT
CURRENT LIMIT AND HICCUP
NOC Hiccup wait cycles when LS current limit tripped 32 Cycles
TOC Hiccup retry delay time 5.5 ms
SOFT START (SS/TRK PIN)
TSS Internal soft-start time when SS pin open circuit 4.1 ms
POWER GOOD (PGOOD PIN)
TPGOOD-RISE Power-good flag rising transition deglitch delay 220 µs
TPGOOD-FALL Power-good flag falling transition deglitch delay 220 µs

Switching Characteristics

over operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
SW (SW PIN)
tON-MIN(1) Minimum high side MOSFET ON-time 125 165 ns
tOFF-MIN(1) Minimum high side MOSFET OFF-time 200 250 ns
OSCILLATOR (SW and SYNC PINS)
FOSC-DEFAULT Oscillator default frequency RT pin open circuit 425 500 580 kHz
FADJ Minimum adjustable frequency With 1% resistors at RT pin 200 kHz
Maximum adjustable frequency 2200 kHz
Frequency adjust accuracy 10%
VSYNC-HIGH Sync clock high level threshold 2 V
VSYNC-LOW Sync clock low level threshold 0.4 V
DSYNC-MAX Sync clock maximum duty cycle 90%
DSYNC-MIN Sync clock minimum duty cycle 10%
TSYNC-MIN Mininum sync clock ON and OFF time 80 ns
Specified by design

Typical Characteristics

Unless otherwise specified, VIN = 12 V, VOUT = 3.3 V, FS = 500 kHz, L = 6.8 µH, COUT = 120 µF, CFF = 100 pF. See Application Performance Curves for Bill of materials for other VOUT and FS combinations.
LM43602 3p3V_500k_Eff_Gr.png
VOUT = 3.3V FS = 500 kHz
Figure 1. Efficiency at Room Temperature
LM43602 3p3V_500k_Eff85_Gr.png
VOUT = 3.3V FS = 500 kHz
Figure 3. Efficiency at 85°C
LM43602 5V_500k_EffLin_Gr.png
VOUT = 5V FS = 500 kHz
Figure 5. Efficiency at Room Temperature
LM43602 3p3_500k_Reg_Gr.png
VOUT = 3.3V FS = 500 kHz
Figure 7. VOUT Regulation
LM43602 3p3V_500k_Drop_Gr.png
VOUT = 3.3V FS = 500 kHz
Figure 9. Dropout Curve
LM43602 3p3V_500k_FreqDrop_Gr.png
VOUT = 3.3V FS = 500 kHz
Figure 11. Frequency vs VIN
LM43602 EN_DOWN.png Figure 13. EN Falling Threshold vs Junction Temperature

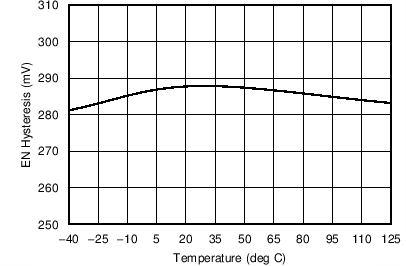

LM43602 EN_Hyst.png Figure 15. EN Hysteresis vs Junction Temperature

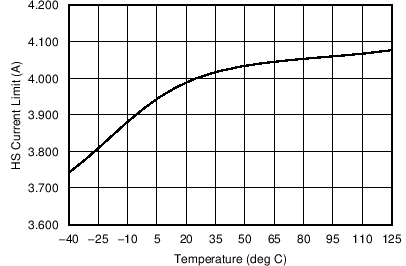

LM43602 HSILIM.png Figure 17. HS Current Limit vs Junction Temperature

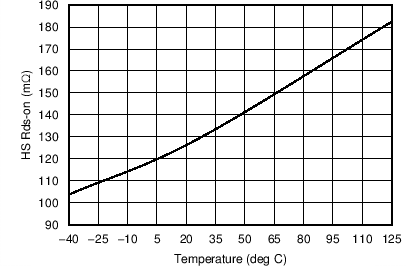

LM43602 HSRDSON.png Figure 19. High Side FET On Resistance vs Junction Temperature
LM43602 PGOVPUP.png Figure 21. PGOOD OVP Falling Threshold vs Junction Temperature

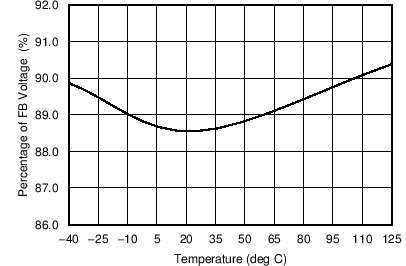

LM43602 PGUVPDWN.png Figure 23. PGOOD UVP Falling Threshold vs Junction Temperature
LM43602 3p3V_500k_EffLin_Gr.png
VOUT = 3.3V FS = 500 kHz
Figure 2. Efficiency at Room Temperature
LM43602 5V_500k_Eff_Gr.png
VOUT = 5V FS = 500 kHz
Figure 4. Efficiency at Room Temperature
LM43602 5V_500k_Eff85_Gr.png
VOUT = 5V FS = 500 kHz
Figure 6. Efficiency at 85°C
LM43602 5V_500k_Reg_Gr.png
VOUT = 5V FS = 500 kHz
Figure 8. VOUT Regulation
LM43602 5V_500k_Drop_Gr.png
VOUT = 5V FS = 500 kHz
Figure 10. Dropout Curve
LM43602 5V_500k_FreqDrop_Gr.png
VOUT = 5V FS = 500 kHz
Figure 12. Frequency vs VIN
LM43602 EN_UP.png Figure 14. EN Rising Threshold vs Junction Temperature

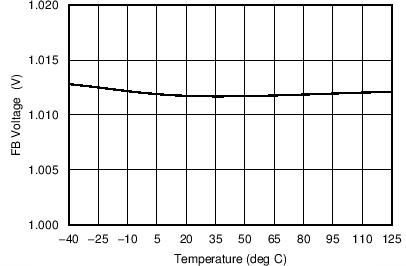

LM43602 VFB.png Figure 16. FB Voltage vs Junction Temperature

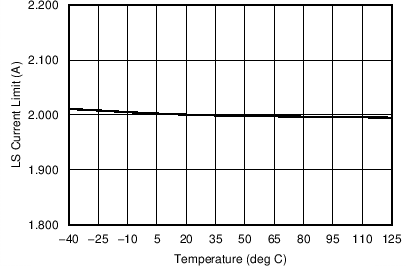

LM43602 LSILIM.png Figure 18. LS Current Limit vs Junction Temperature

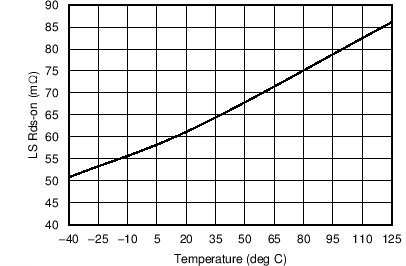

LM43602 LSRDSON.png Figure 20. Low Side FET On Resistance vs Junction Temperature
LM43602 PGOVPDOWN.png Figure 22. PGOOD OVP Rising Threshold vs Junction Temperature
LM43602 PGUVPUP.png Figure 24. PGOOD UVP Rising Threhsold vs Junction Temperature
