6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
IN Input voltage –0.3 6 V
OUT Output overvoltage sense input –0.3 40 V
SW Inductor connection –0.3 40 V
LED1, LED2 LED string cathode connection –0.3 30 V
HWEN, PWM, SDA, SCL, ASEL Logic I/Os –0.3 6 V
Maximum junction temperature, TJ_MAX 150 °C
Storage temperature, Tstg –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±500
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. Pins listed as ±2000 V may actually have higher performance.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. Pins listed as ±500 V may actually have higher performance.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
IN Input voltage 2.5 5.5 V
OUT Overvoltage sense input 0 38 V
SW Inductor connection 0 38 V
LED1, LED2 LED string cathode connection 0 29.5 V
HWEN, PWM, SDA, SCL, ASEL Logic I/Os 0 5.5 V

6.4 Thermal Information

THERMAL METRIC(1) LM36922H UNIT
YFQ (DSBGA)
12 PINS
RθJA Junction-to-ambient thermal resistance 88.9 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 0.7 °C/W
RθJB Junction-to-board thermal resistance 43.9 °C/W
ΨθJT Junction-to-top characterization parameter 2.9 °C/W
ΨθJB Junction-to-board characterization parameter 43.7 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.

6.5 Electrical Characteristics

Minimum and maximum limits apply over the full operating ambient temperature range (−40°C ≤ TA ≤ 85°C), typical values are at TA = 25°C, and VIN = 3.6 V (unless otherwise noted).
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
BOOST
IMATCH(1) LED current matching ILED1 to ILED2 50 µA ≤ ILED ≤ 25 mA, 2.7 V ≤ VIN ≤ 5 V (linear or exponential mode) –1% 0.1% 1%
Accuracy Absolute accuracy (ILED1, ILED2) 50 µA ≤ ILED ≤ 25 mA, 2.7 V ≤ VIN ≤ 5 V (linear or exponential mode) –3% 0.1% 3%
ILED_MIN Minimum LED current (per string) PWM or I2C current control (linear or exponential mode) 50 µA
ILED_MAX Maximum LED current (per string) 25 mA
RDNL IDAC ratio-metric DNL exponential mode only 1/3
(0.3%) 		LSB
VHR Regulated current sink headroom voltage ILED = 25 mA 210 mV
ILED = 5 mA 100
VHR_MIN Current sink minimum headroom voltage ILED = 95% of nominal, ILED = 5 mA 35 50 mV
Efficiency Typical efficiency VIN = 3.7 V, ILED = 5 mA/string, typical application circuit (2x8 LEDs), POUT/PIN) 86%
RNMOS NMOS switch on resistance ISW = 250 mA 0.29 Ω
ICL NMOS switch current limit 2.7 V ≤ VIN ≤ 5 V OCP = 00 575 750 875 mA
OCP = 01 860 1000 1110
OCP = 10 1100 1250 1400
OCP = 11 1350 1500 1650
VOVP Output overvoltage protection ON threshold, 2.7 V ≤ VIN ≤ 5 V OVP = 00 16 17 17.5 V
OVP = 01 23 24 25
OVP = 10 30 31 32
OVP = 11 37 38 39
OVP Hysteresis 0.5 V
ƒSW Switching frequency 2.7 V ≤ VIN ≤ 5 V, boost frequency
shift = 0		 Boost frequency select = 0 475 500 525 kHz
Boost frequency select = 1 950 1000 1050
DMAX Maximum boost duty cycle 92% 94%
ISHDN Shutdown current Chip enable bit = 0, SDA = SCL = IN or GND, 2.7 V ≤ VIN ≤ 5 V 1.2 5 µA
TSD Thermal shutdown 135 °C
Hysteresis 15
PWM INPUT
Min ƒPWM 50 Hz
Max ƒPWM Sample rate = 24 MHz 50 kHz
tMIN_ON Minimum pulse ON time Sample rate = 24 MHz 183.3 ns
Sample rate = 4 MHz 1100
Sample rate = 800 kHz 5500
tMIN_OFF Minimum pulse OFF time Sample rate = 24 MHz 183.3 ns
Sample rate = 4 MHz 1100
Sample rate = 800 kHz 5500
tSTART-UP Turnon delay from shutdown to backlight on PWM input active, PWM = logic high,HWEN input from low to high, ƒPWM = 10 kHz (50% duty cycle) 3.5 5 ms
PWMRES PWM input resolution 1.6 kHz ≤ ƒPWM ≤ 12 kHz, PWM hysteresis = 00, PWM sample rate = 11 11 bits
VIH Input logic high HWEN, ASEL, SCL, SDA, PWM inputs 1.25 VIN V
VIL Input logic low HWEN, ASEL, SCL, SDA, PWM inputs 0 0.4
tGLITCH PWM input glitch rejection PWM pulse filter = 00 0 15 ns
PWM pulse filter = 01 60 100 140
PWM pulse filter = 10 90 150 210
PWM pulse filter = 11 120 200 280
tPWM_STBY PWM shutdown period Sample rate = 24 MHz 0.54 0.6 0.66 ms
Sample rate = 4 MHz 2.7 3 3.3
Sample rate = 800 kHz 22.5 25 27.5
(1) LED Current Matching between strings is given as the worst case matching between any two strings. Matching is calculated as ((ILEDX – ILEDY)/(ILEDX + ILEDY)) × 100.

6.6 I2C Timing Requirements

See Figure 1
MIN MAX UNIT
t1 SCL clock period 2.5 µs
t2 Data in setup time to SCL high 100 ns
t3 Data out stable after SCL low 0 ns
t4 SDA low Setup Time to SCL low (start) 100 ns
t5 SDA high hold time after SCL high (stop) 100 ns
LM36922H I2Ctime_diag.gif Figure 1. I2C Timing

6.7 Typical Characteristics

LM36922H C002_SNVSAF3.png
Figure 2. OVP Hysteresis
LM36922H C004_SNVSAF3.png
Figure 4. 24-V OVP Threshold
LM36922H C006_SNVSAF3.png
Figure 6. 38-V OVP Threshold
LM36922H C008_SNVSAF3.png
HWEN = GND
Figure 8. Shutdown Current
LM36922H C011_SNVSAF3.png
ILED = 5 mA
Figure 10. VHR MIN

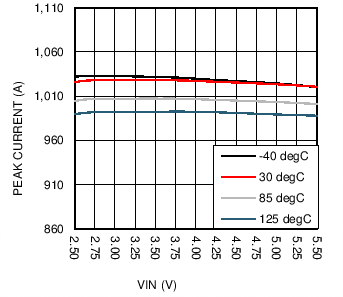

LM36922H C013_SNVSAF3.png
Open Loop
Figure 12. 1000-mA OCP Current
LM36922H C015_SNVSAF3.png
Open Loop
Figure 14. 1500-mA OCP Current
LM36922H C003_SNVSAF3.png
Figure 3. 17-V OVP Threshold
LM36922H C005_SNVSAF3.png
Figure 5. 31-V OVP Threshold
LM36922H C007_SNVSAF3.png

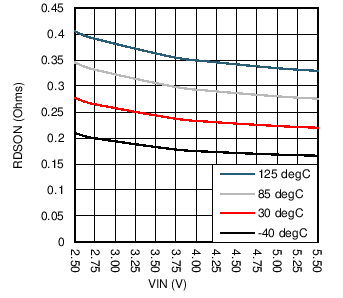

Figure 7. RDSON
LM36922H C010_SNVSAF3.png
fSW= 1 Mhz No Load
Figure 9. IQ Current (Switching)
LM36922H C012_SNVSAF3.png
Open Loop
Figure 11. 750-mA OCP Current
LM36922H C014_SNVSAF3.png
Open Loop
Figure 13. 1250-mA OCP Current
