Typical Characteristics for LM339B and LM2901B Only

TA = 25°C, VS = 5 V, RPULLUP = 5.1k, CL = 15 pF, VCM = 0 V, VUNDERDRIVE = 100 mV, VOVERDRIVE = 100 mV unless otherwise noted.

GUID-20221207-SS0I-CC61-P5QC-JZXWHRXPVLV4-low.svgFigure 7-1 Total Supply Current vs. Supply Voltage
GUID-20221207-SS0I-HF69-RXJJ-JQ5XP8DDSHRC-low.svgFigure 7-3 Total Supply Current vs. Input Voltage at 3.3V
GUID-20221207-SS0I-3DNZ-RSNP-8SLJ3JQJ9ZV1-low.svgFigure 7-5 Total Supply Current vs. Input Voltage at 12V

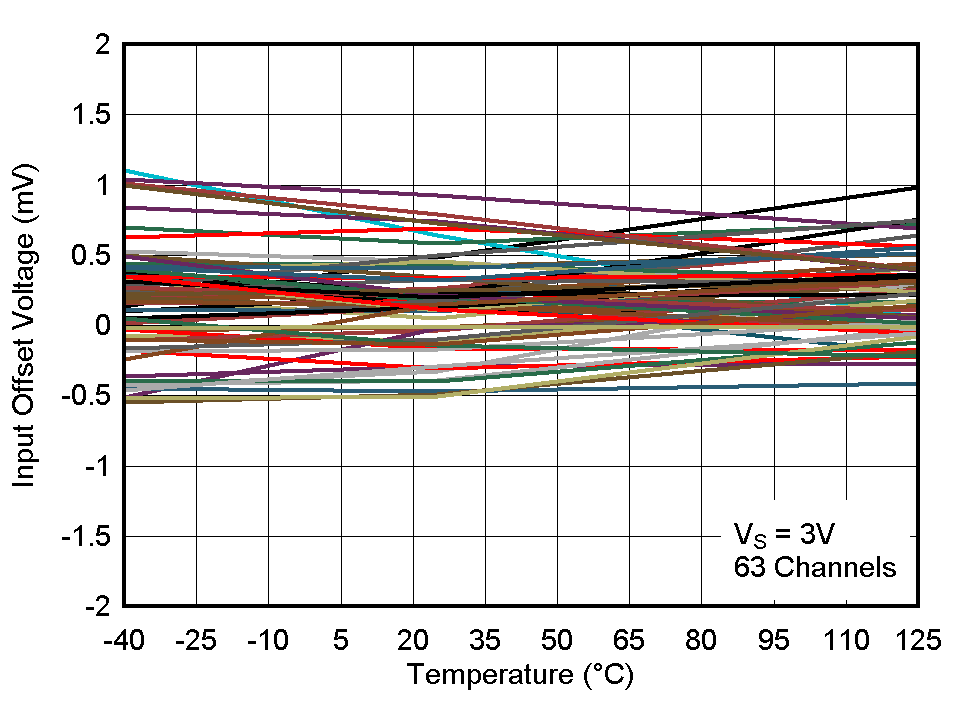

GUID-8ED842DB-11EF-4976-A8C7-FA9B91F59A38-low.gifFigure 7-7 Input Offset Voltage vs. Temperature at 3V

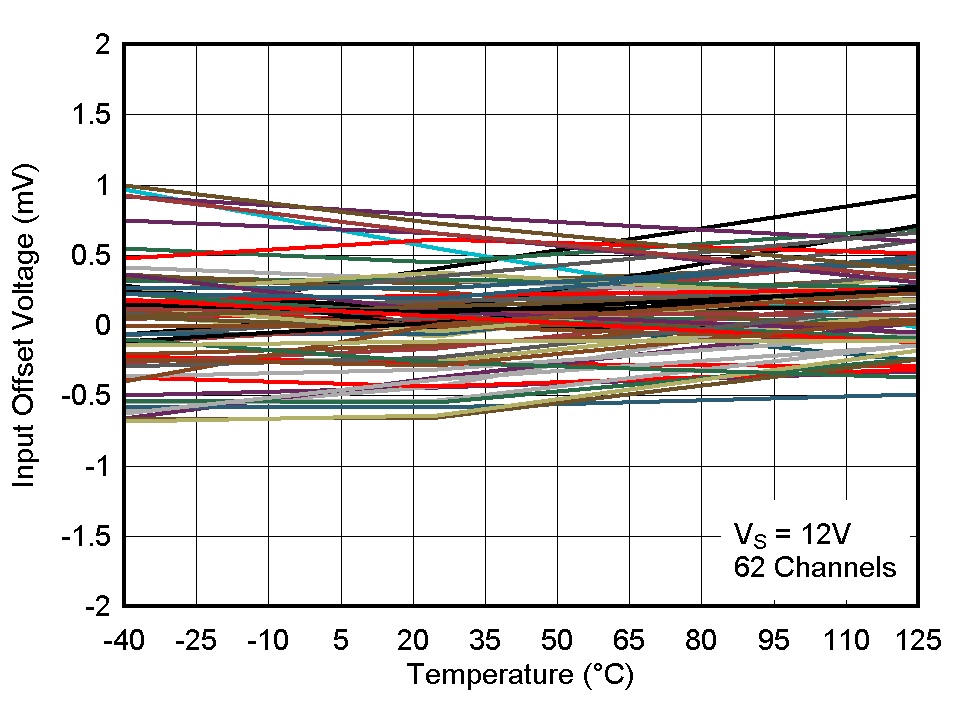

GUID-091DCEA6-C5B0-4621-B52D-D01AC2C25E97-low.gifFigure 7-9 Input Offset Voltage vs. Temperature at 12V

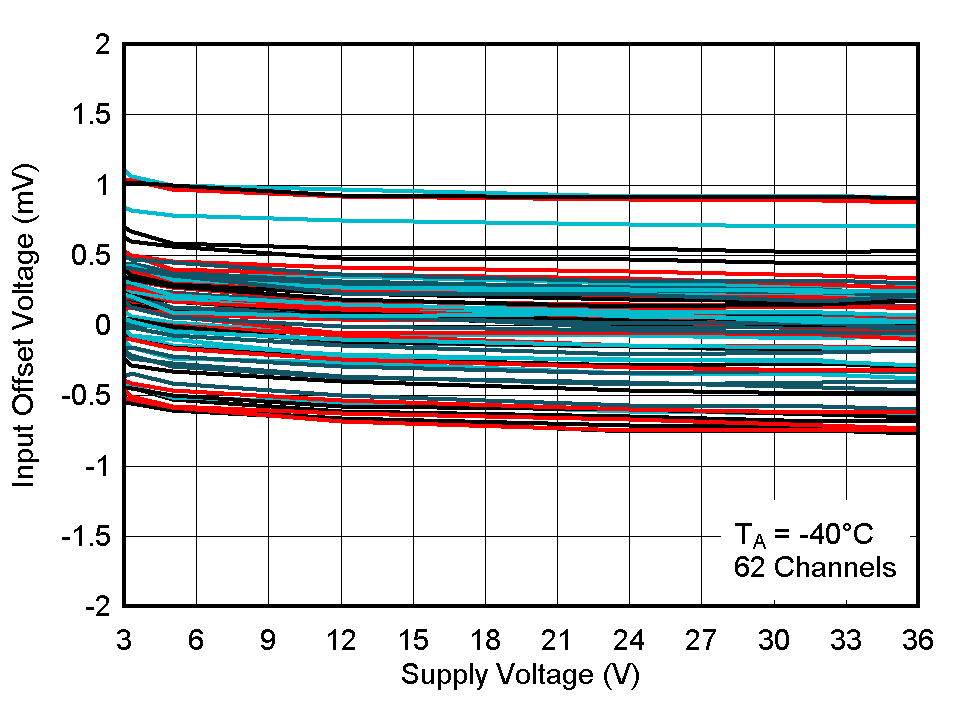

GUID-419AE2E5-E708-465B-A306-FAD39BA71009-low.gifFigure 7-11 Input Offset Voltage vs. Supply Voltage at -40°C

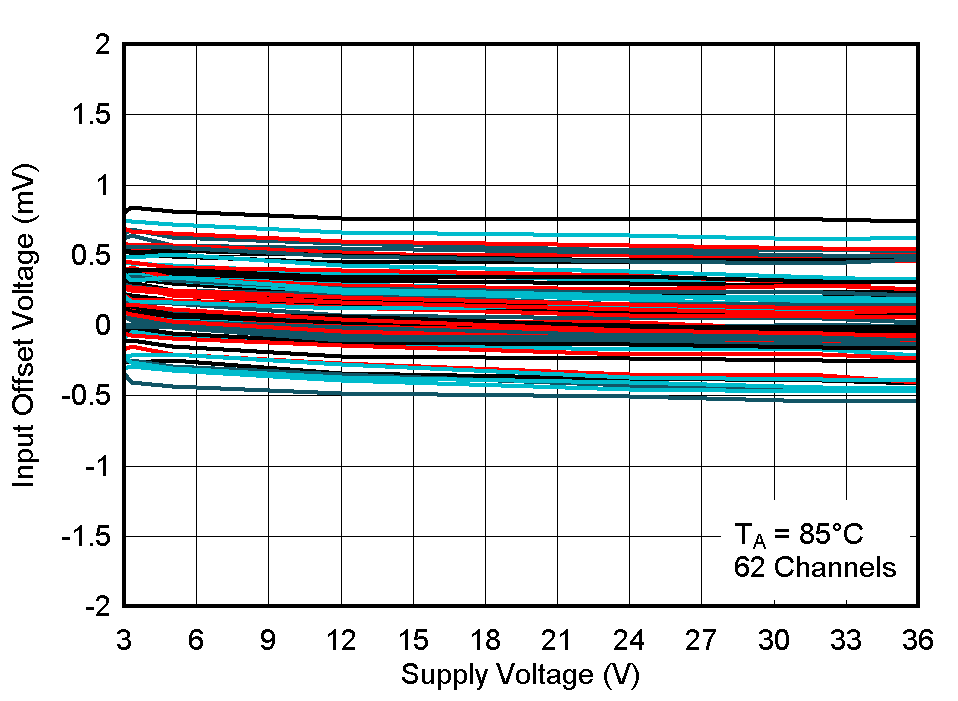

GUID-7C8F5ED0-A419-4650-95A6-868C689974C5-low.gifFigure 7-13 Input Offset Voltage vs. Supply Voltage at 85°C

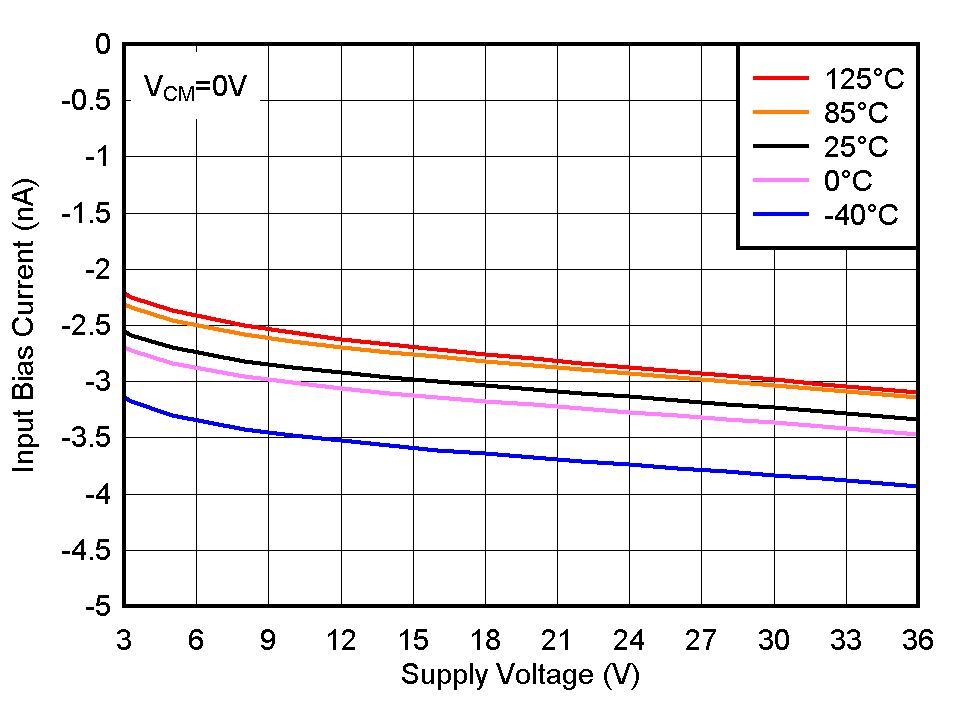

GUID-4B0A8554-388C-4A4C-BC4B-7278932F4F67-low.gifFigure 7-15 Input Bias Current vs. Supply Voltage

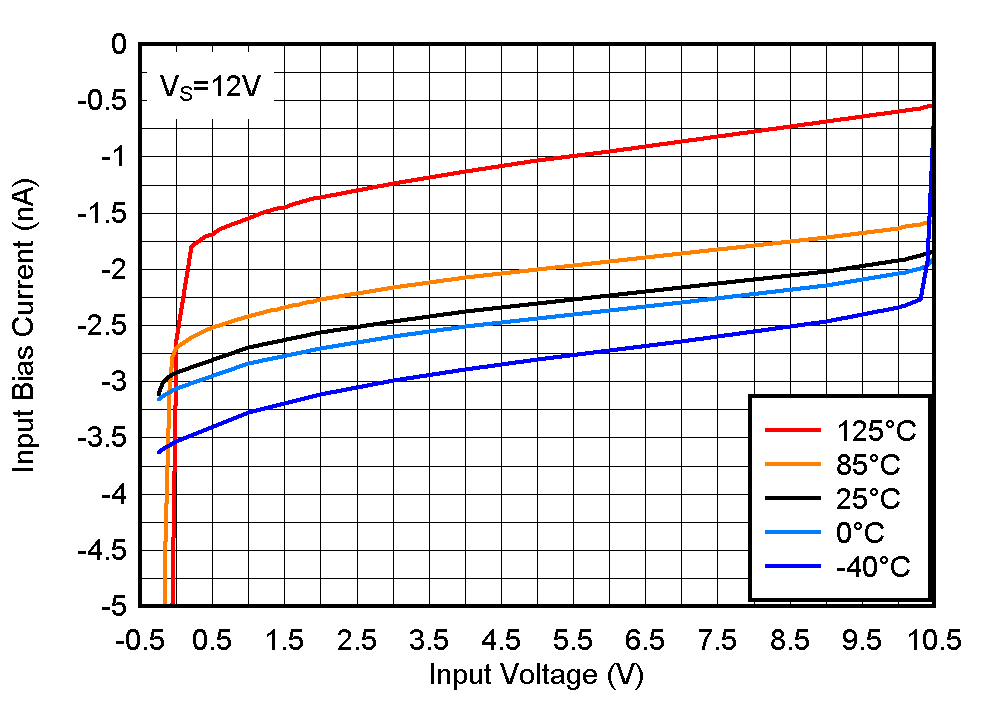

GUID-EA9B3D0F-1F12-4331-969C-FFCDCA4BC1EE-low.gifFigure 7-17 Input Bias Current vs. Input Voltage at 12V

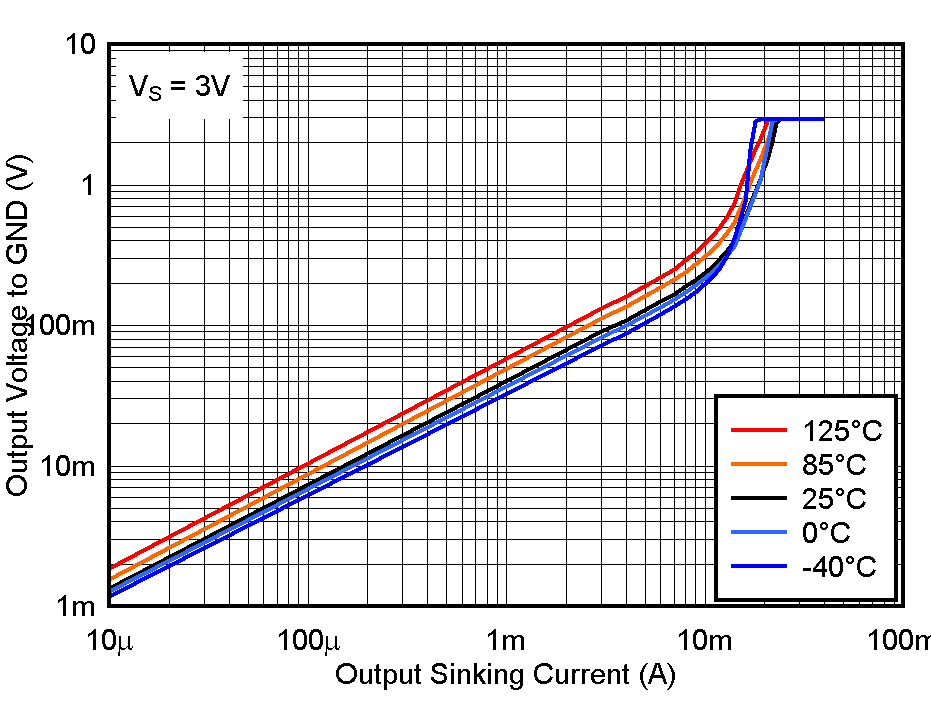

GUID-EE656172-8B08-403E-85AD-A9CAB151C399-low.gifFigure 7-19 Output Low Voltage vs. Output Sinking Current at 3V

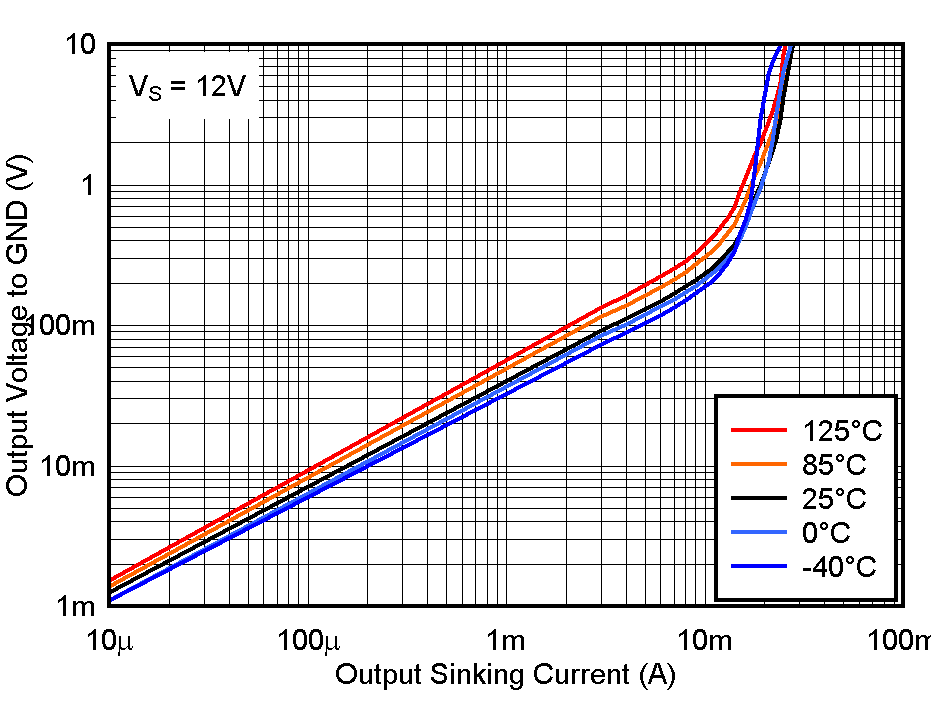

GUID-2627B065-E981-4D6C-BBB8-D14A56607802-low.gifFigure 7-21 Output Low Voltage vs. Output Sinking Current at 12V

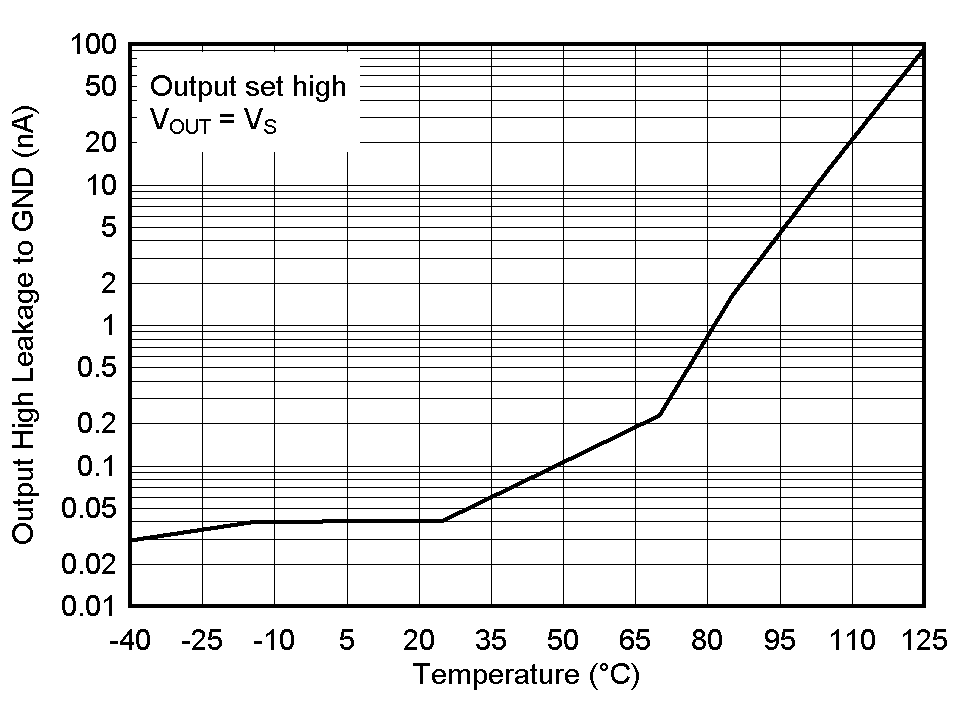

GUID-39C83B78-5854-4D32-B83B-C67E1EB62874-low.gifFigure 7-23 Output High Leakage Current vs.Temperature at 5V

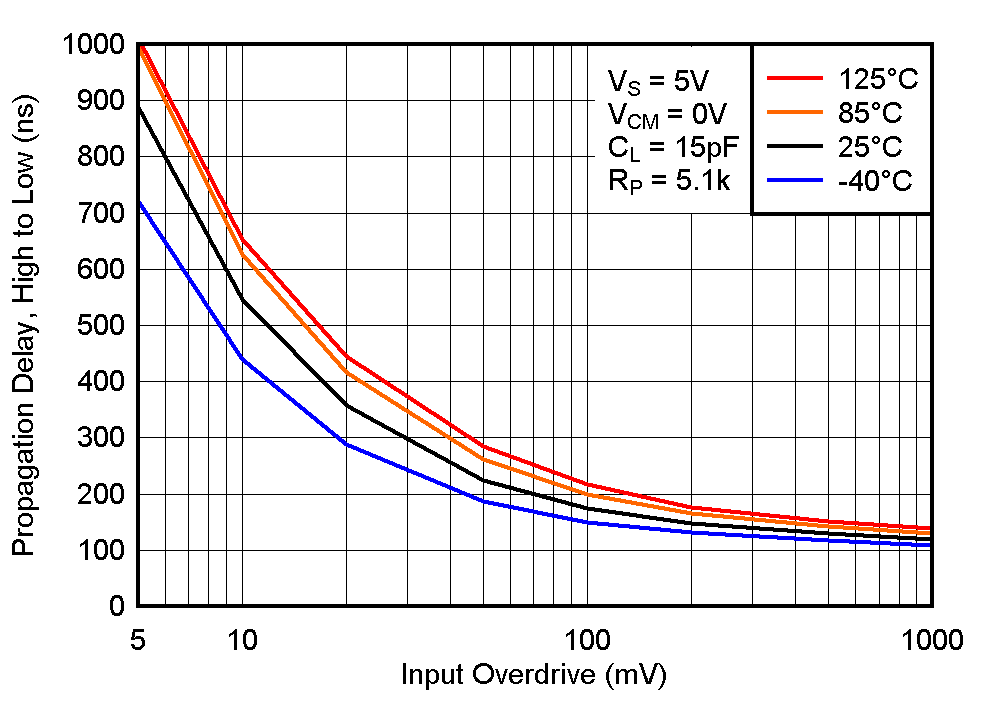

GUID-3C1C9F0D-DE18-49EB-B547-98B24EBFD584-low.gifFigure 7-25 High to Low Propagation Delay vs. Input Overdrive Voltage, 5V

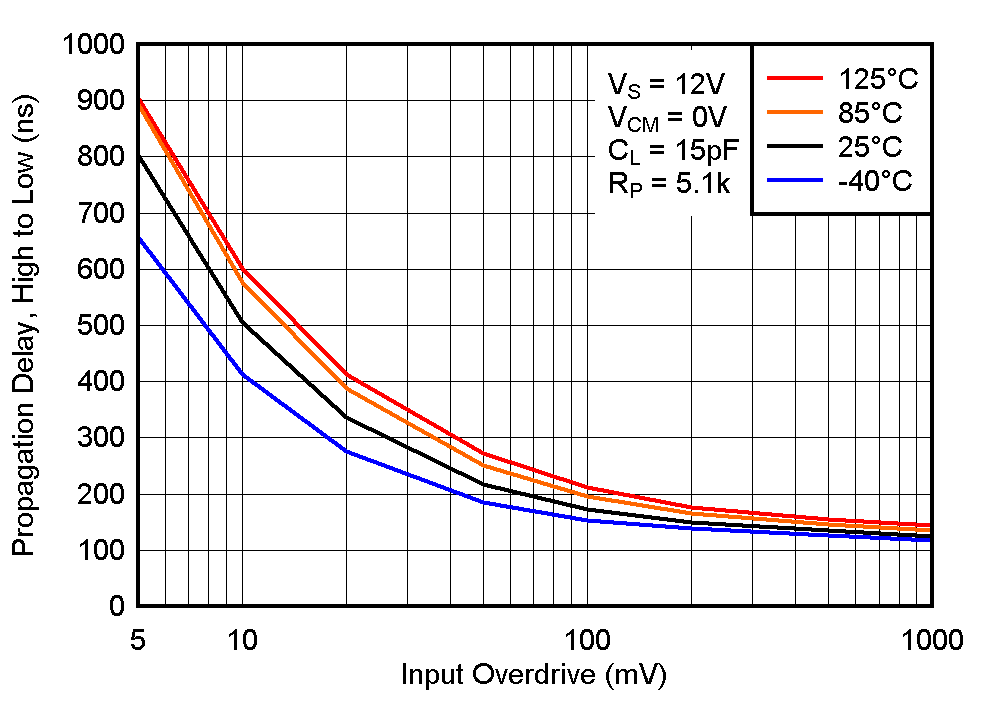

GUID-B2FF44A0-EF67-45C1-8547-3520BF5B2581-low.gifFigure 7-27 High to Low Propagation Delay vs. Input Overdrive Voltage, 12V

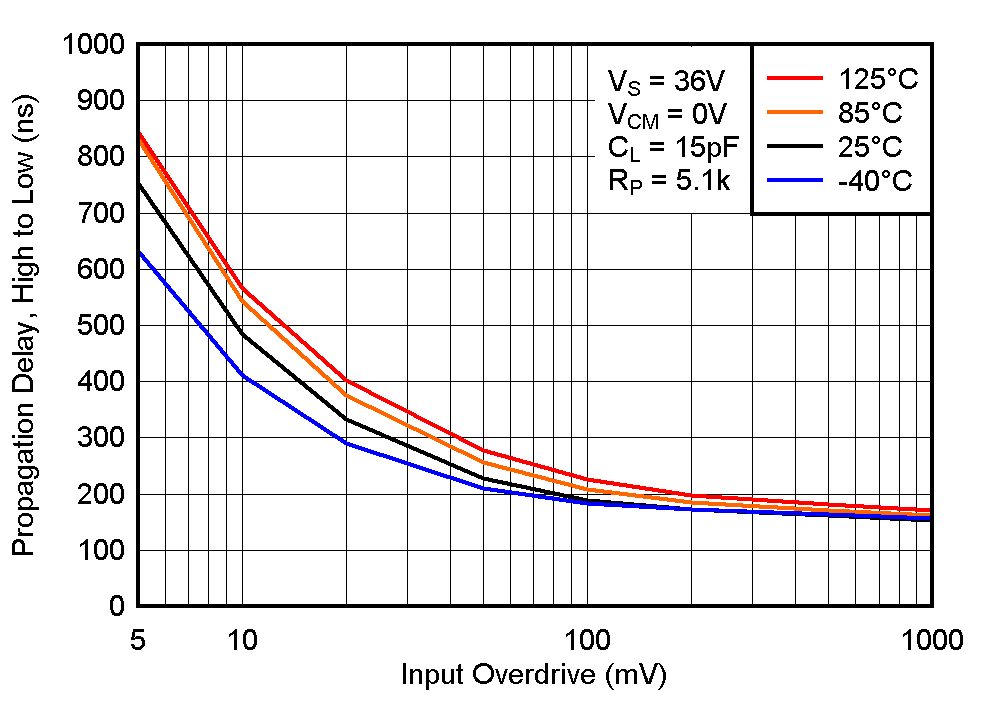

GUID-D2CD0D48-2733-48A9-8D6B-7DE5EC08F589-low.gifFigure 7-29 High to Low Propagation Delay vs. Input Overdrive Voltage, 36V

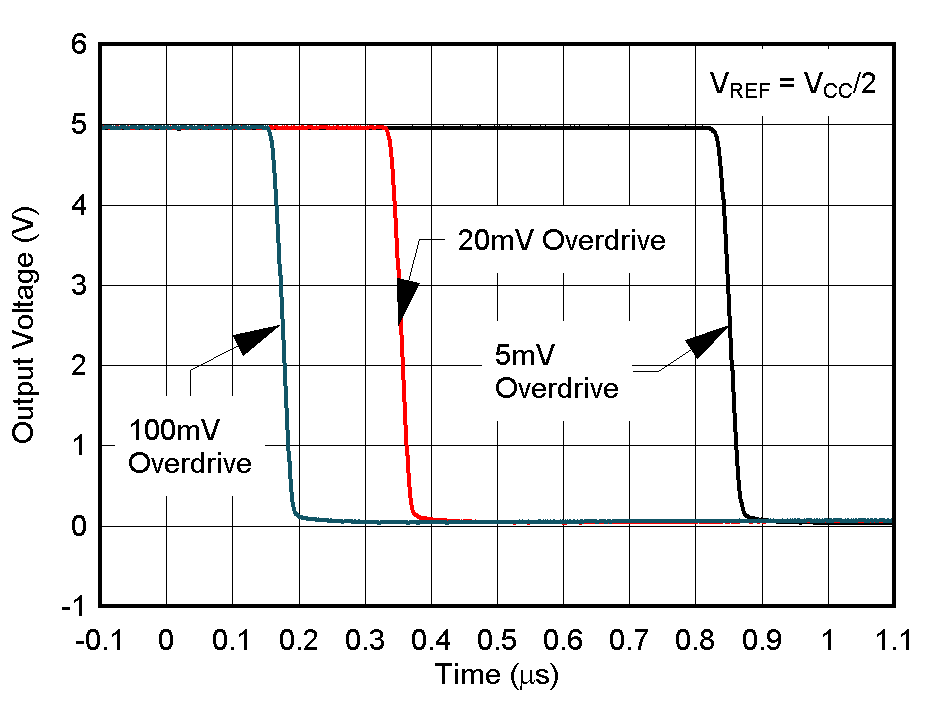

GUID-C971D278-CA6A-446A-83B5-208473BC1AD3-low.gifFigure 7-31 Response Time for Various Overdrives, High-to-Low Transition
GUID-20221207-SS0I-JHZ4-NWC8-9L8WPJW732KC-low.svgFigure 7-2 Total Supply Current vs. Input Voltage at 3V
GUID-20221207-SS0I-XJ2N-SVNH-VPZHCPBGVDB0-low.svgFigure 7-4 Total Supply Current vs. Input Voltage at 5V
GUID-20221207-SS0I-SR63-GJFK-HXXVRDQVLCND-low.svgFigure 7-6 Total Supply Current vs. Input Voltage at 36V

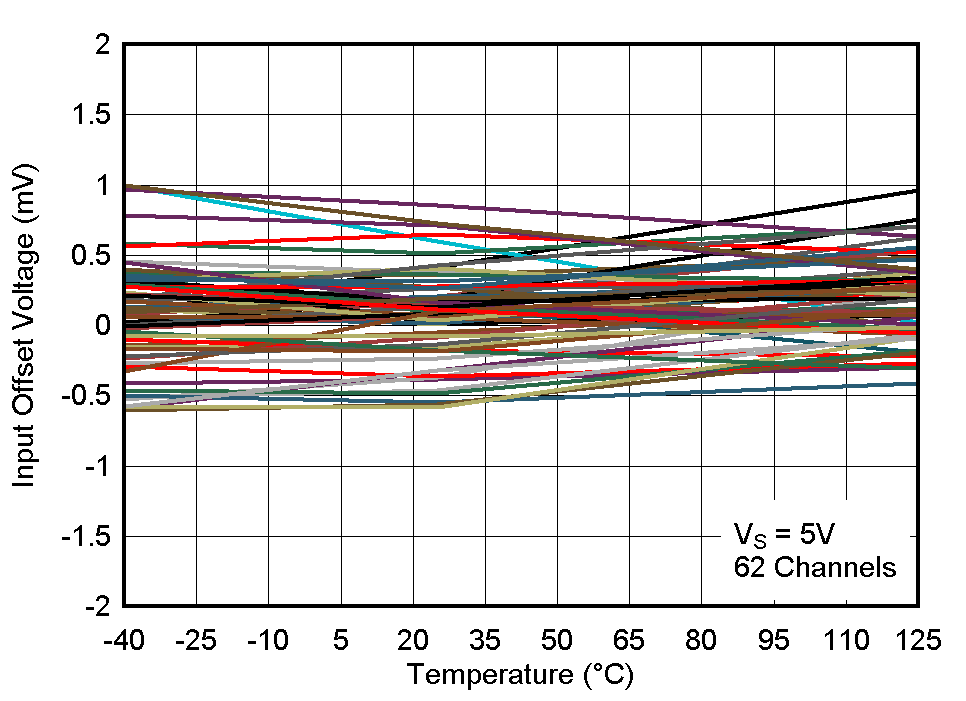

GUID-EADC8665-7CA6-4C8C-B85F-783628BC37F1-low.gifFigure 7-8 Input Offset Voltage vs. Temperature at 5V

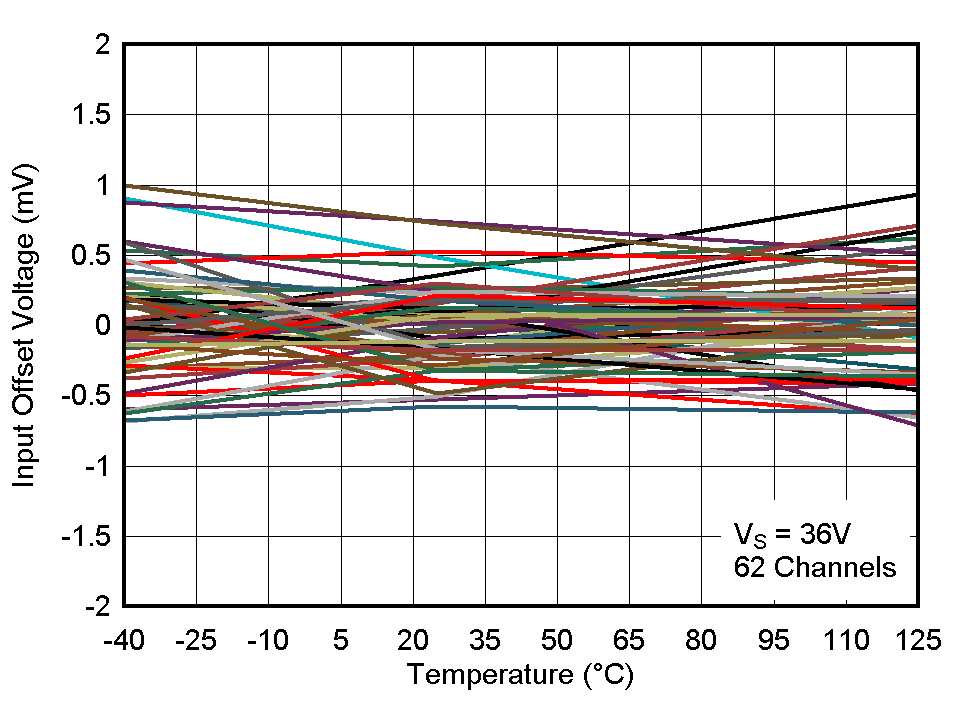

GUID-28D41752-7FF1-4734-B898-397999011DC5-low.gifFigure 7-10 Input Offset Voltage vs. Temperature at 36

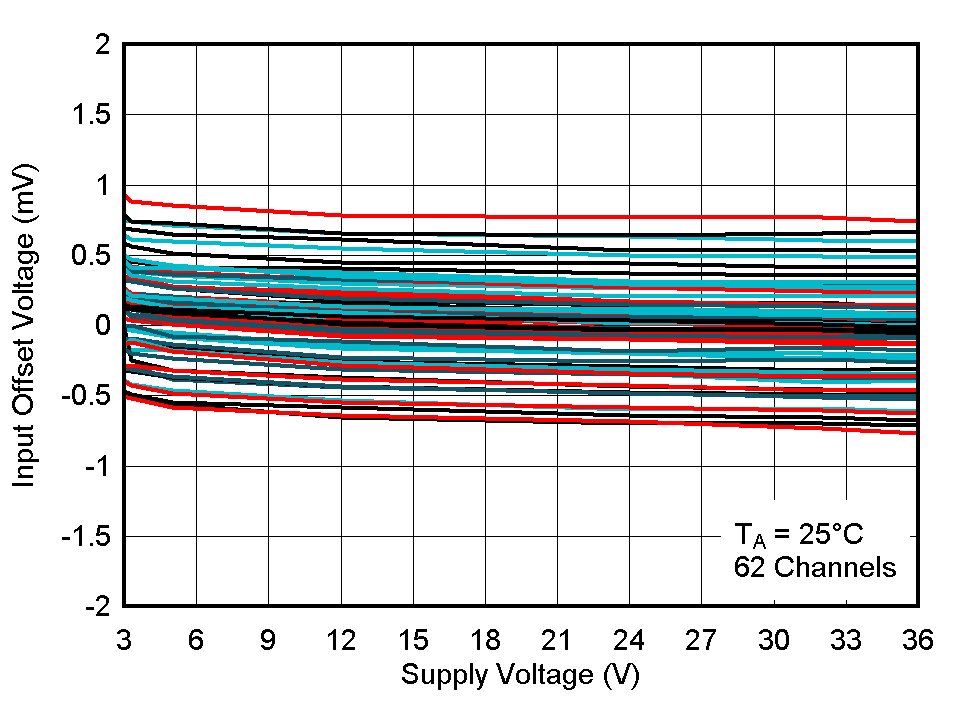

GUID-8F6B6F10-22D3-4936-8758-20DAAE88D496-low.gifFigure 7-12 Input Offset Voltage vs. Supply Voltage at 25°C

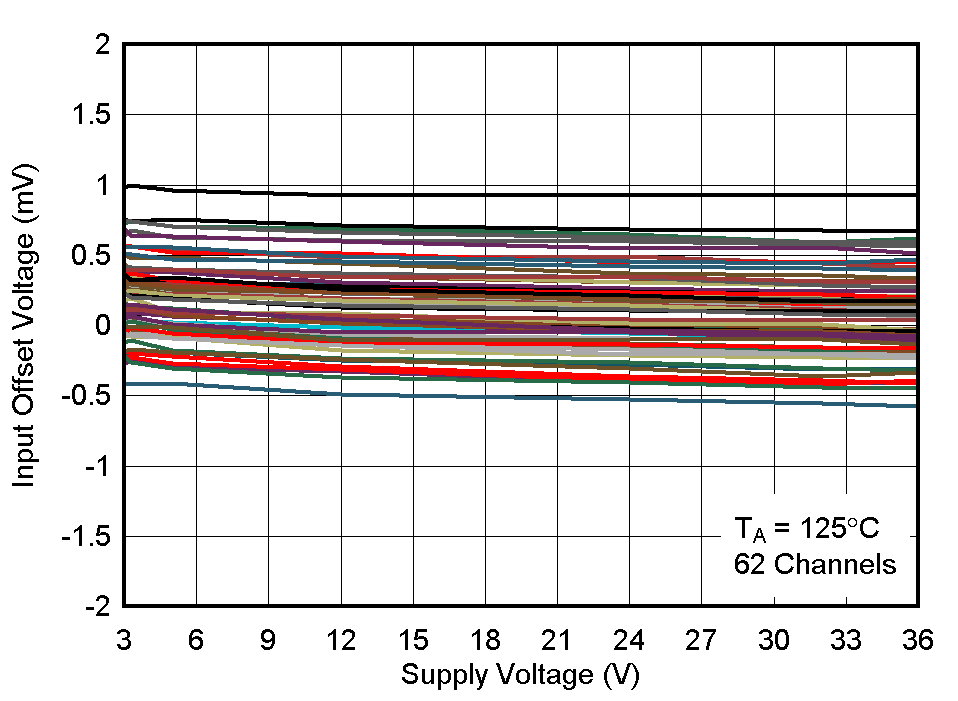

GUID-C7900F83-4537-461D-A21E-02865D76A8D8-low.gifFigure 7-14 Input Offset Voltage vs. Supply Voltage at 125°C

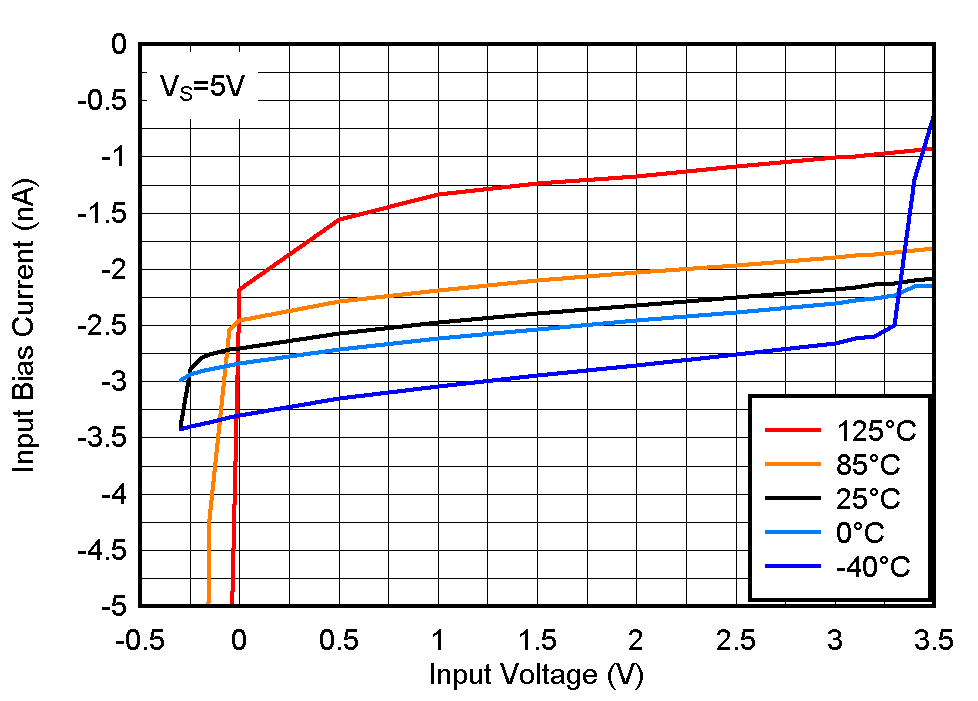

GUID-A5784C69-EB5D-457C-B477-9DA05E1811C8-low.gifFigure 7-16 Input Bias Current vs. Input Voltage at 5V

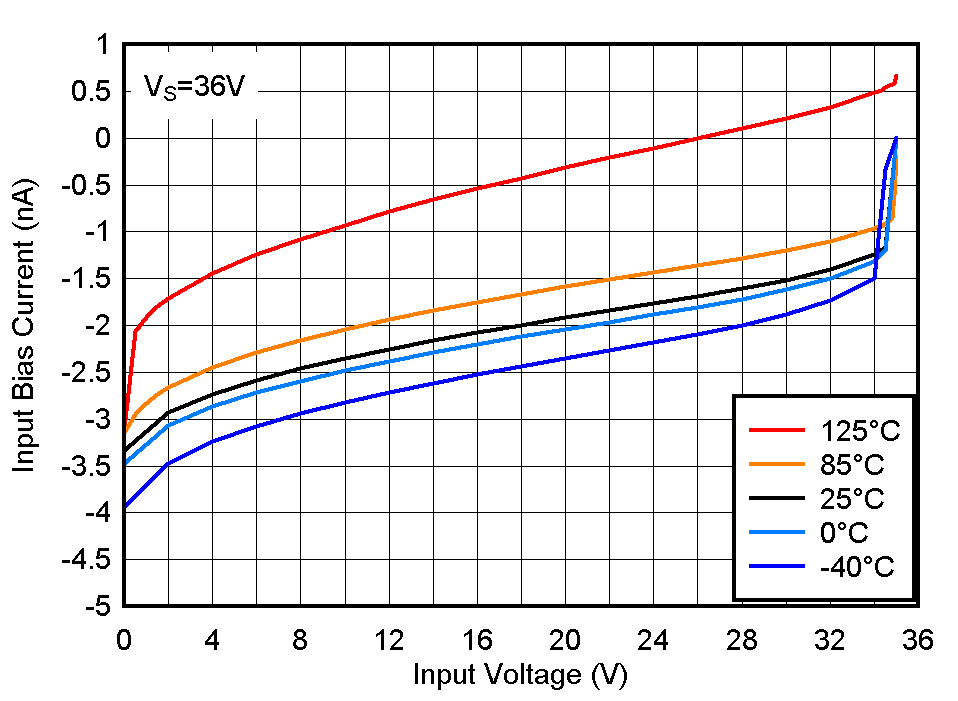

GUID-D5DEF217-68C5-4799-B272-6D081247855E-low.gifFigure 7-18 Input Bias Current vs. Input Voltage at 36V

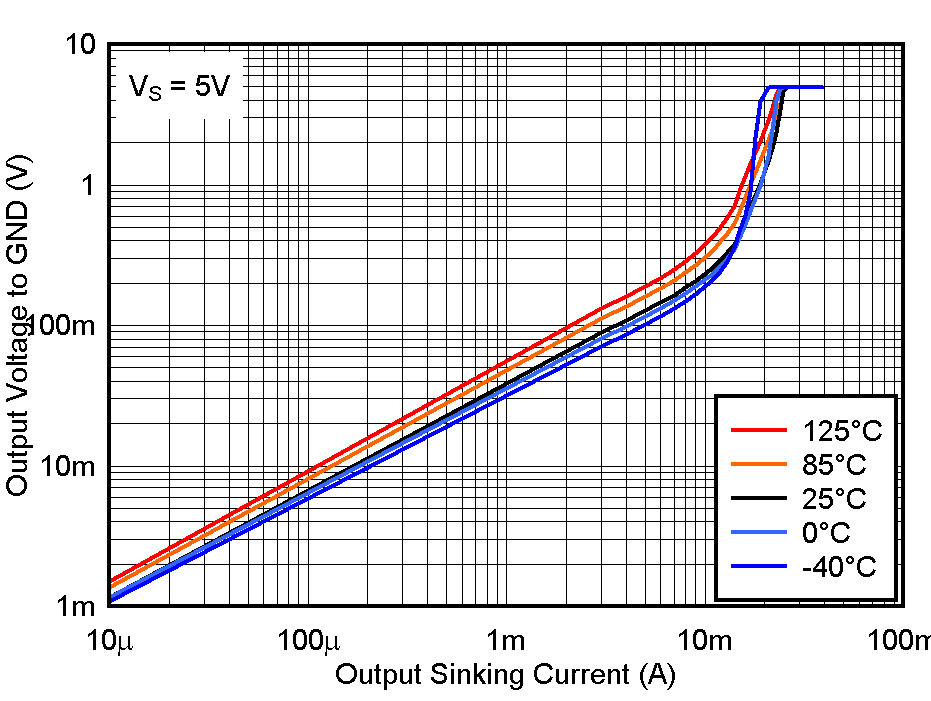

GUID-F90CC653-BAC1-41B9-B9E6-751BB0265D15-low.gifFigure 7-20 Output Low Voltage vs. Output Sinking Current at 5V

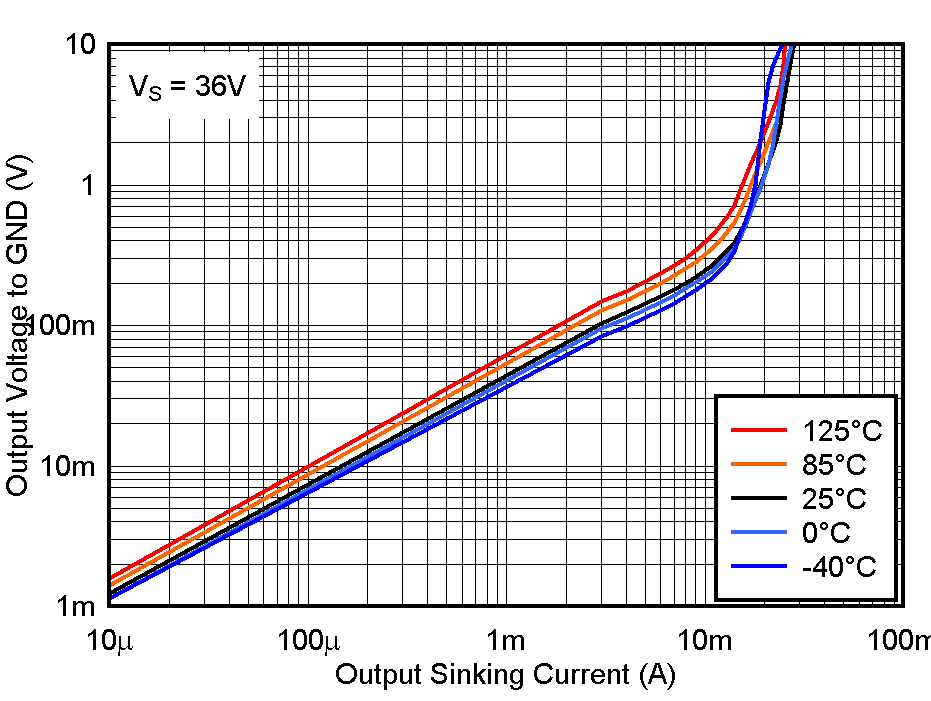

GUID-97FFDA69-F9AB-4581-833B-E8D9F33E3BEB-low.gifFigure 7-22 Output Low Voltage vs.Output Sinking Current at 36V

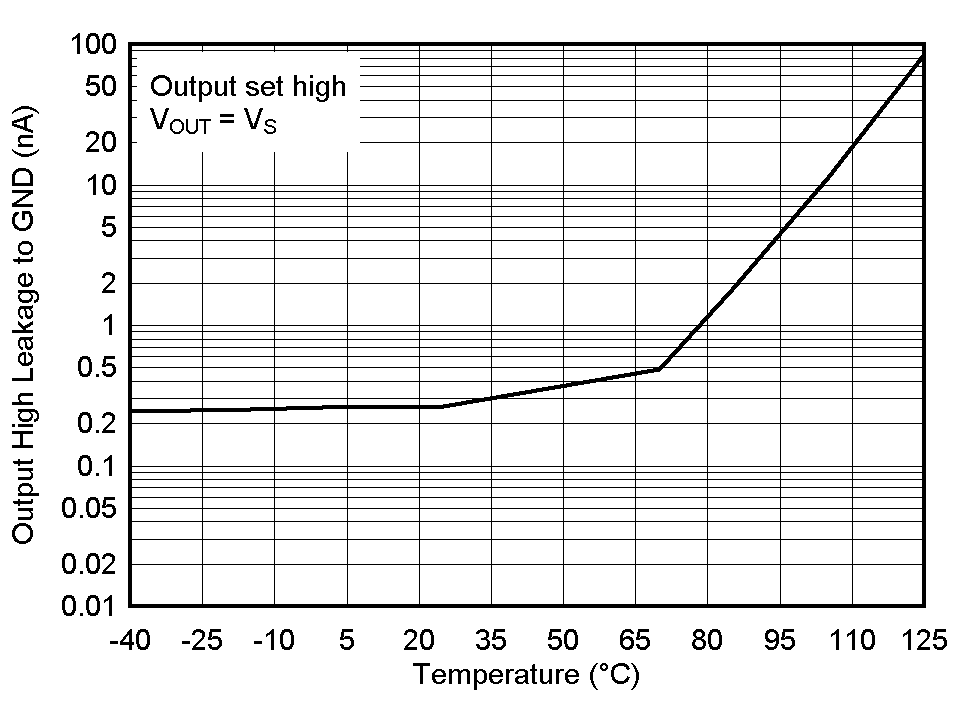

GUID-F7E7A9A8-B593-40B0-9237-133FE8B18C67-low.gifFigure 7-24 Output High Leakage Current vs. Temperature at 36V

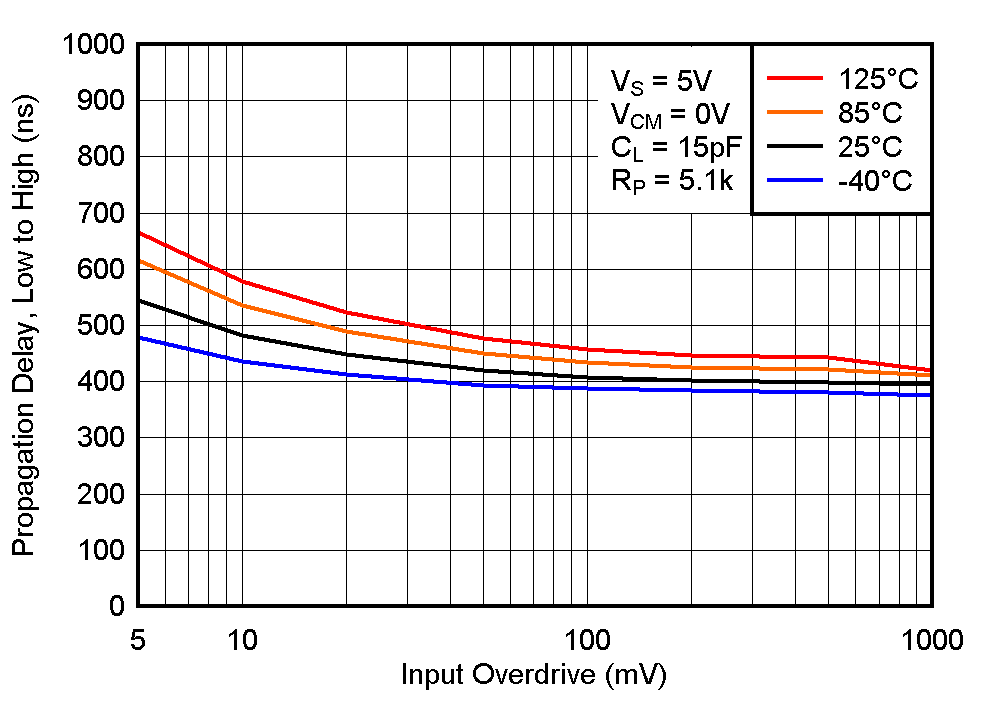

GUID-ED89463A-C19A-4A37-8948-1203B0C20CA2-low.gifFigure 7-26 Low to High Propagation Delay vs. Input Overdrive Voltage, 5V

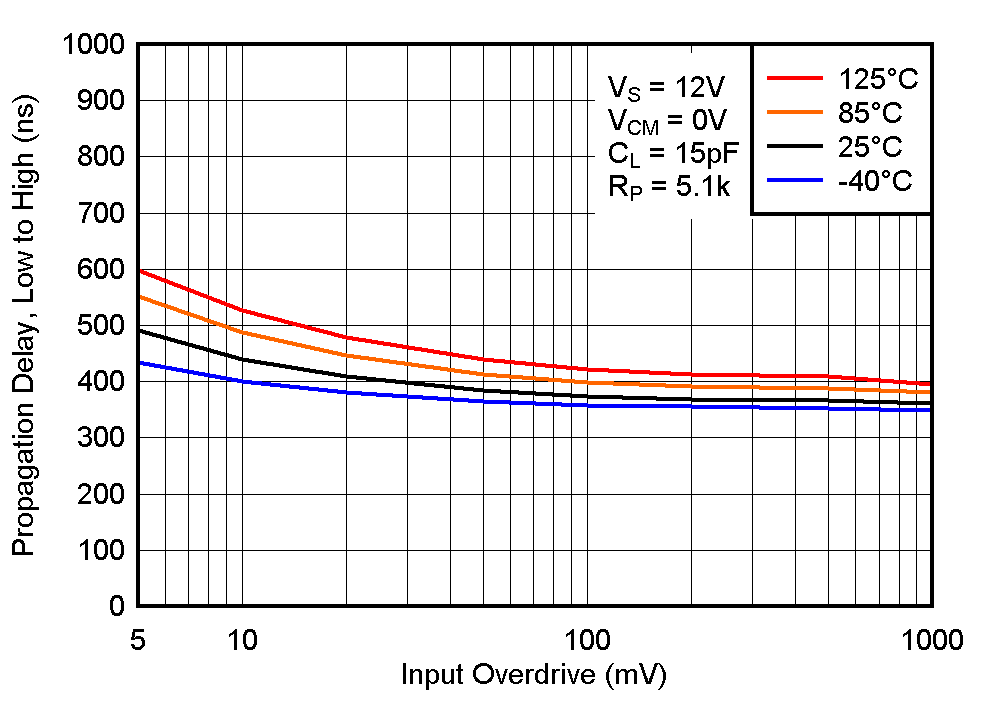

GUID-9CFCE2E8-9A3A-4CE6-BA14-8210D8E9A9F2-low.gifFigure 7-28 Low to High Propagation Delay vs. Input Overdrive Voltage, 12V

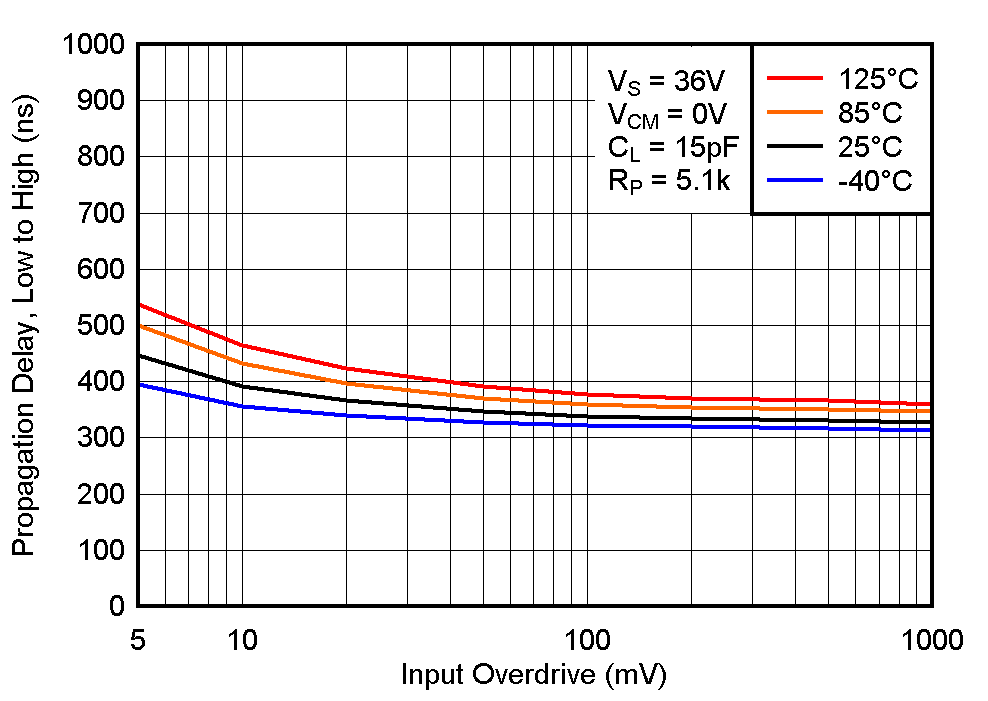

GUID-FC3F868A-8E13-4EE4-BC6F-66859468E15E-low.gifFigure 7-30 Low to High Propagation Delay vs. Input Overdrive Voltage, 36V

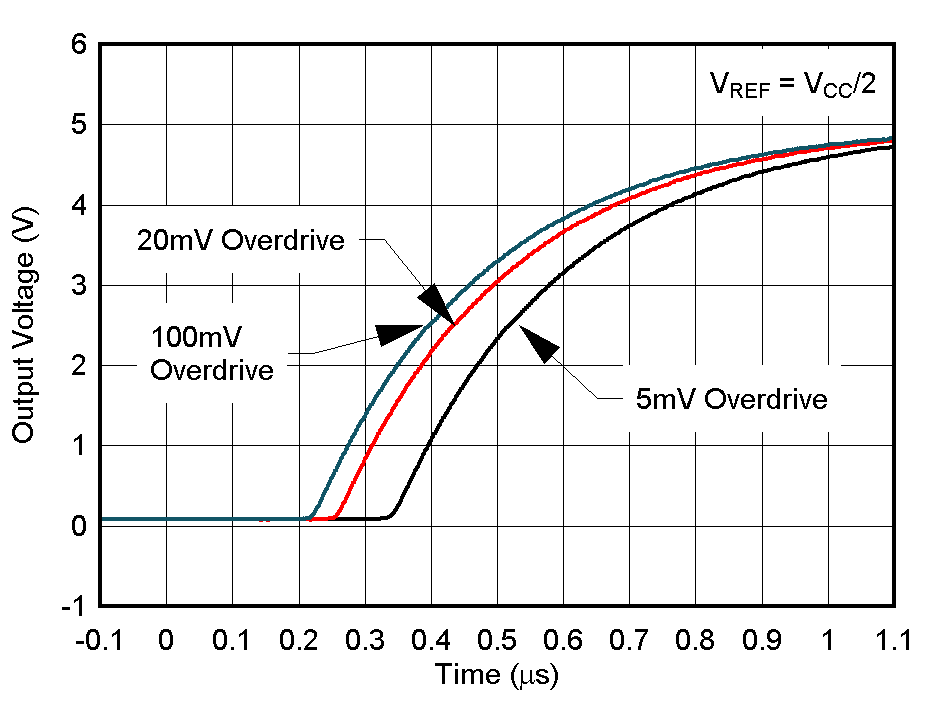

GUID-9DE8CC89-53CC-4618-9996-08BD02BC21B6-low.gifFigure 7-32 Response Time for Various Overdrives, Low-to-High Transition
